ECMG4 E405488 - (Replaced by ECMG4 E228087)
How to buy
ECMG4

This product has been replaced by the - ECMG4.

Elo ECMG4
Computer Modules

The Elo ECMG4 Computer Modules feature Intel® Core® 7th Generation CPUs with enhanced graphics performance. Available with Intel i5 processors for Microsoft Windows® 10 or no operating system, the commercial grade computer modules transform Elo's Large Format Interactive Displays into powerful all-in-one platforms. By adding touch to digital signage installations, you can create immersive brand experiences and self-service solutions to help increase customer engagement and satisfaction.

*14 Day Free Trial of AirServer Windows 10 Desktop Edition.
The all new AirServer for Windows 10 is a powerful universal mirroring receiver, $40 per year.

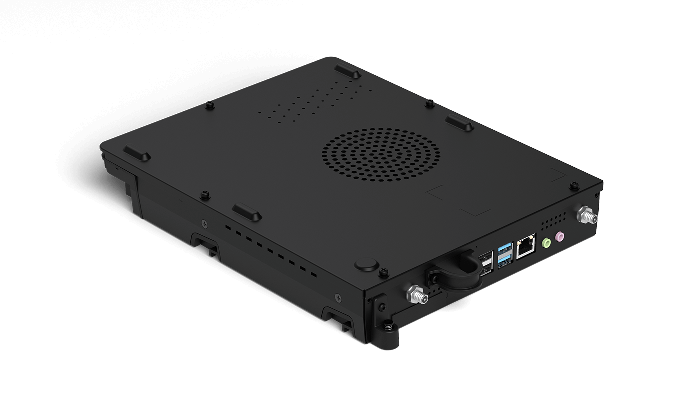

Smaller Form Factor

With dimensions of 11.07x8.2x1.7 the new ECMG4 form factor is 47% smaller than the previous model,
delivering a lower cost, lower energy consumption mini pc that's easier to install and maintain.

Smaller Form Factor

Key Features

  • CPU

    CPU

    Intel Core i5-7500T

  • GPU

    GPU

    Intel HD Graphics 630

  • Chipset

    Chipset

    Intel H110 Chipset

  • OS

    OS

    Windows 10 Enterprise 2019 LTSC 64-bit,
    Windows 10 Enterprise 2019 SAC 64-bit or no OS

  • RAM

    RAM

    8 GB DDR4-2400 MHz SO-DIMM on
    1 of 2 slots (expand to 64 GB) OS

  • Storage

    Storage

    256GB m.2
    Solid State Drive (SSD)

Easy Installation

Easy Installation

The Elo IDS Computer Modules slide into the back of the touchscreen display to deliver the industry's thinnest commercial grade all-in-one large format touchcomputers. Field installation is easy with no external cables required. AC power, video and USB signals pass between the computer module and the Elo IDS touch display via an internal docking connector.

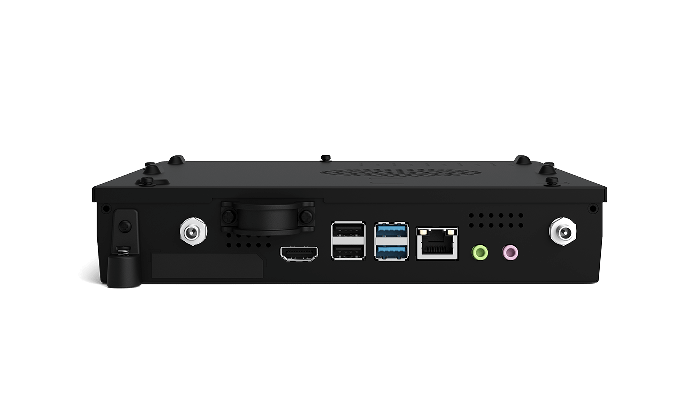

Connections

Connections
  • LAN

    LAN

  • 2x USB 2.0 Type A

    2x USB 2.0
    Type A

  • 2x USB 3.0 Type A

    2x USB 3.0
    Type A

  • HDMI

    HDMI

  • >3.5 mm line out & mic in

    3.5 mm line
    out & mic in

Collaboration Ready

Collaboration Ready

Pair the flexibility of Elo’s 03/53-Series Interactive Boards with an intuitive dashboard, seamless bring-your-own-device content sharing and robust annotation and whiteboarding software – delivering employees and corporations countless benefits. Elo’s ECMG4 comes conferencing ready with DisplayNote Launcher and Montage as well as Qwizdom’s whiteboarding software included. From increased efficiency to controlled costs – start connecting teams and information in real time to empower better, faster, more reliable decision making and improving the way collaboration works.

*Applies to P/N: E405488 only

Built-to-Last

Built-to-Last

The Elo Computer Modules deliver the quality and
reliability Elo is known for and are backed by our
3-year standard warranty with an optional extension
to 4 or 5-years. We design and build the complete
solution, with touch integrated from the start.

Similar Products:

Elo Backpack® 4

Specifications

  • Technical

    Part Number(s)

    i5-7500 ECMG4 - Windows 10 (SAC) with DisplayNote Montage & Launcher Software & Qwizdom Whiteboard Software - Elo P/N: E405488

    Compatible with
    3203L TouchPro
    4303L TouchPro and IR
    5553L TouchPro and IR
    6553L TouchPro and IR

    Enclosure Color

    Black

    Processor

    Intel Core i5-7500T Processor
    (6M Cache, up to 3.30 GHz)
    6 MB Intel Smart Cache
    8 GT/s Direct Media
    Interface 3 (DMI3)

    Chipset

    Intel H110 Chipset

    Graphics

    Intel HD Graphics 630

    BIOS

    AMI

    Memory (RAM)

    8 GB DDR4-2400 MHz SO-DIMM on 1 of 2 slots
    16 GB DDR4-2400 MHz SO-DIMM on 1 of 2 slots (E405488 only)

    *Maximum memory using 2 slots. Expandable to 64 GB maximum on 2 slots. DDR4-2133/2400 @ 1.2V

    Storage

    256GB m.2 Solid State Drive (SSD)

    GB equals one billion bytes when referring to storage capacity. Accessible capacity may be less.

    Wireless

    IEEE 802.11 a/b/g/n/ac (downlink MU-MIMO)

    Bluetooth

    Bluetooth 5

    USB Ports

    2 x USB 2.0 Type A
    2 x USB 3.0 Type A

    Ethernet Port

    1 x LAN RJ45

    Audio Ports

    1 x 3.5 mm Line out
    1 x 3.5 mm MIC in

    Video Out

    1 x HDMI (UHD capable)

    OS

    Windows 10 64-bit (SAC)

    Power Supply

    Power provided by IDS display

    Dimensions

    11.07” x 8.2” x 1.7” / 281.1 mm x 208.2 mm x 43 mm

    Shipping Box Dimensions

    28.74” x 20.47” x 13.78” / 730 mm x 520 mm x 350 mm

    Weight (Unpackaged)

    4.6 lbs / 2.1 kg

    Weight (Packaged)

    7.3 lbs / 3.3 kg

    Operating Temperature

    0°C to 40°C / 32°F to 104°F

    Storage Temperature

    -30°C to 60°C / -22°F to 140°F

    Humidity

    Operating: 20% to 80%
    Storage: 10% to 90%

    Real-Time Clock

    lithium-ion battery

    MTBF

    50,000 hours demonstrated

    Regulatory approvals and declarations

    UL/cUL, CB, FCC, CE, AS, NZS, VCCI

    Warranty

    3-year

    Extended Service Options

    4 year warranty coverage - Elo P/N: E896120
    5 year warranty coverage - Elo P/N: E896322
    3 year warranty coverage + AUR - Elo P/N: E896699
    4 year warranty coverage + AUR - Elo P/N: E896903
    5 year warranty coverage + AUR - Elo P/N: E897104

    What's in the Box

    QIG
    2x WiFi/BT Antenna
    4x M6x50 screws
    4x M8x50 screws
    4x Spacers
