3239L 32" Open Frame Touchscreen (Discontinued July 2014)
How to buy

Overview

The 3239L open-frame touchmonitor delivers a cost-effective touch solution for OEMs and systems integrators, and complements the expanded family of Elo touch solutions for gaming and amusement, retail self-service and digital signage applications. This compact touchmonitor is "designed for touch," with proven expertise and reliability built-in, not added as an afterthought by altering an existing monitor.

The 3239L features a brilliant wide-viewing-angle LCD panel to instantly grab and hold the user's attention, whether they are checking out retail goods with a selfservice kiosk, interacting with a digital signage application or playing games in a casino or arcade. Because the enclosure is controlled by Elo specifications and tooling, the Elo open-frame monitors have a long-lasting product cycle, which is important to maintain continuity through all phases of project rollouts and servicing. The 3239L features a unique, injection-molded bezel with a virtually invisible water-resistant seal, making it a good choice for the rigors of public use. Narrow borders, multiple mounting options, and a dual serial/USB touch interface add to the versatility of the 3239L. Worldwide agency approvals cover the entire monitor that is designed, built and supported by Elo, a true single-source supplier.

The 3239L is available with IntelliTouch surface acoustic wave touch technology. The comprehensive range of features includes analog and digital interfaces, multi-lingual on-screen display (OSD), mounting VESA standard, mounting brackets, cabled remote on-screen display (OSD), and worldwide compliance.

Features

  • A bright, high-contrast display with wide viewing angle easily attracts and holds the user's attention.
  • IntelliTouch (surface acoustic wave) technology offers high quality optics, durability, and long-term reliability.
  • Integrated precision minibezel with water-resistant 0.5 mm seal
  • The enclosure is controlled by Elo specifications and results in a long-lasting product cycle.
  • Multiple mounting options are available.
  • Dual serial and USB connectivity are standard.
  • Worldwide agency approvals and a three-year standard warranty are backed by Elo.

Specifications

  • Technical

    Part Number(s)

    IntelliTouch (Clear, Americas) - E526000
    IntelliTouch (Clear, Asia/Pacific) - E839830
    IntelliTouch (Clear, EMEA) - E162387

    Enclosure Color

    Black

    Touch Technology & Capacity

    SAW (IntelliTouch® Surface Acoustic Wave) - Single Touch

    Touch Interface

    Dual serial/USB

    Diagonal Size

    32'' diagonal, Active matrix TFT LCD (LED)

    On Screen Display

    Controls (back): menu, up, down, select
    Settings: automatic adjustment, contrast, brightness, H/V position, clock, phase, color temperature, input video select, OSD H/V position, OSD timeout, recall color, recall default, sharpness, display information
    Languages: English, French, Italian, German, Spanish, Japanese, Traditional Chinese, Simplified Chinese
    Lockouts: power, user controls

    Aspect Ratio

    16:9

    Active Area

    27.5" x 15.4" / 698 mm x 392 mm

    Resolution

    1366 x 768

    Other Supported Resolutions

    640x480 @ 60Hz
    800x600 @ 56Hz, 60Hz
    1024x768 @ 60Hz
    1280x960 @ 60 Hz
    1280x1024 @ 60Hz
    1360x768 @ 60 Hz
    1366x768 @ 60 Hz
    1440x900 @ 60 Hz
    1600x1200 @ 60 Hz
    1680x1050 @ 60 Hz

    Viewing Angle

    Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total

    Number of Colors

    16.7 million

    Brightness (typical)

    LCD panel: 450 nits
    IntelliTouch: 405 nits

    Response Time-total (typical)

    8 msec

    Contrast Ratio

    3000:1

    Input Video Format

    Analog VGA, DVI video (Asia and EMEA models without DVI)

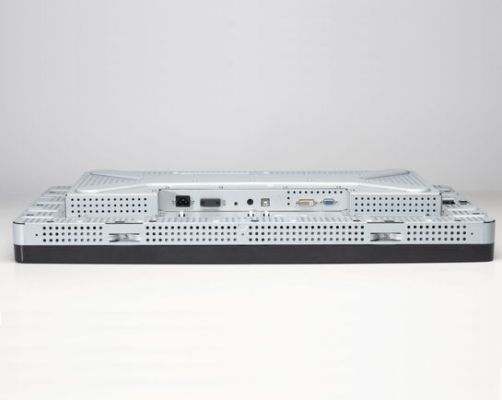

    Input Video Signal Connector

    Mini D-Sub 15-Pin VGA type, DVI-D connector

    Power Supply

    Internal AC

    Input Voltage

    AC: 100–240 VAC, 50/60Hz

    Input Connector

    AC: IEC 60320 C6

    Input Frequency

    Horizontal: 30-75 kHz
    Vertical: 48-63 Hz

    Power Consumption (Typical)

    145W typical; 190W max. at 110V/60Hz input)

    Dimensions

    30.9" x 18.7" x 4.3" / 784 mm x 474 mm x 110 mm

    Shipping Box Dimensions

    39.4" x 13.4" x 26.8" / 1000 mm x 340 mm x 680 mm

    Weight (Unpackaged)

    38.1 lbs / 17.3 kg

    Weight (Packaged)

    47.6 lbs / 21.6 kg

    Operating Temperature

    0°C to 40°C / 32°F to 104°F

    Storage Temperature

    -20°C to 60°C / -4°F to 140°F

    Humidity

    Operating: 20%-80%
    Storage: 10%-90%

    Sealability

    Touchscreen sealed to bezel
    Touchscreen sealed to LCD

    MTBF

    50,000 hours demonstrated

    Warranty

    3-year

    Regulatory approvals and declarations

    Australia C-Tick, China CCC, Japan VCCI, Korea EK, MIC, Taiwan BSMI, Argentina S-mark, UL, cUL, FCC, Mexico NOM, CE, Russia PCT, China RoHS, WEEE, IMERC

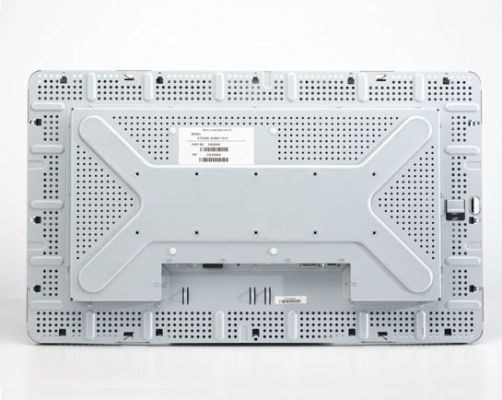

    Mounting Options

    200mm x 100mm VESA mount
    Mounting brackets included

    Options / Peripherals / Upgrades

    Replacement Cable Kit - Elo P/N: E378229
    IntelliTouch Stylus Pen - Elo P/N: D82064-000
    Elo Remote OSD (With 1.8 m cable) - Elo P/N: E622897

    Optional IntelliTouch Stylus Pen

    Stylus pen with rubber tip, designed specifically for use with IntelliTouch surface wave touch technology. Part number D82064-000, available at additional cost
