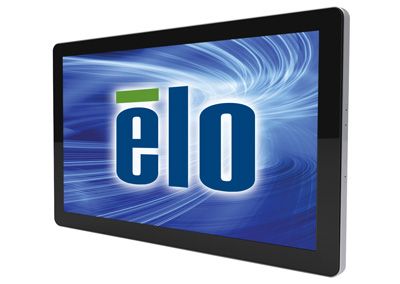

3201L 32" Interactive Digital Signage (Discontinued March 2016)
How to buy

Overview

Elo's new 3201L 32-inch interactive digital signage touchscreen delivers a professional-grade large format display in a slim, integrated package. Designed from the bottom up for retail, hospitality, healthcare and other commercial markets, the Elo IDS is a high-quality, interactive canvas for attracting and engaging consumers. The 3201L offers system integrators and value-added resellers (VARs) a high performance solution that is easy to deploy and maintain in public environments. With a total thickness as thin as 2.8 inches (72 mm), the 3201L is compliant with ADA and IBC requirements of less than 4-inch protrusion for wall-mounted products when used with a compatible wall-mount.

Now available with two choices of pure-glass touch technologies which are durable and well-suited for public environments. The IntelliTouch® Dual-Touch surface acoustic wave multi-touch touchscreen provides display clarity which is undistorted due to use of clear glass. The Projected Capacitive (PCAP) touchscreen offers a fast, accurate, drift-free touch response and is compatible with Microsoft Windows® 7 and Windows® 8 operating systems with up to 10 touches recognized simultaneously.

Without an overlay or substrate, the pure-glass surface is durable and well-suited for public venues and high traffic areas. Elo's 3201L PCAP offers a unique, aesthetically-pleasing seamless, zero-bezel design that is resistant to dirt, impacts, scratches and other contaminants on the screen.Tilt mounts are available for easy cable access. State of the art HD display technology is utilized including a high contrast/brightness LED-backlight LCD panel, extended color gamut with movie/gaming/photo modes, black level adjustment, and on-screen menu enhancements.

Elo IDS -01 series displays are compatible with Intel's Open Pluggable Standard (OPS) for Digital Signage with an available adapter kit. Optional, high performance computer modules are available which turn the 3201L into a completely integrated all-in-one computer without the need for any cables or additional mounting hardware. Computer modules are available in a choice of two models: ECMG2-i3 based on a 3.3GHz Intel® Core i3 processor and HD2500 graphics; and ECMG2-i5 based on a 3.6GHz Intel Core i5 processor and HD4000 graphics. The computer modules make the 3201L a reliable platform that is interoperable with most content management servers and supports optimal partitioning of locally cached and network streamed content.

Other features.
  • Compatible with Intel Open Pluggable Standard (OPS) with available adapter kit (E102270), sold separately.
  • Available with two choices of touch technologies; with IntelliTouch Dual-Touch surface acoustic wave multi-touch by finger or soft stylus with a pure-glass display surface delivering crystal clear images. Or with Projected Capacitive offering a fast and sensitive response compatible with Microsoft Windows® 7 and Windows® 8 operating systems with up to 10 touches.
  • Housed in a highly durable steel chassis for a long-life of reliable performance
  • VESA mounting or optional stand
  • Aspect ratio 16:9
  • True High Definition (HD) 1080p (1920 x 1080)
  • Seamless, field installable, computer module, docking integration
  • Glass UL60950 ball drop tested
  • Analog VGA, HDCP-capable HDMI 1.3 and DisplayPort 1.1a, video
  • cFour 5W stereo speakers
  • Projected Capacitive multitouch (10 touch points – HID)

Specifications

  • Technical

    Part Number(s)

    IntelliTouch Dual-Touch (USB, Clear, Worldwide) - E415988
    Projected Capacitive (USB, Clear, Worldwide) - E739717

    Enclosure Color

    Black

    Touch Technology & Capacity

    SAW (IntelliTouch® Surface Acoustic Wave) - Dual Touch
    PCAP (Projected Capacitive) - 10 Touch

    Diagonal Size

    32'' diagonal, Active matrix TFT LCD (LED)

    Active Area

    27.5" x 15.5" / 698 mm x 393 mm

    Aspect Ratio

    16:9

    Resolution

    Full HD 1920 x 1080 (native) active matrix TFT LCD with LED backlight; 16.7m colors; 16:9 aspect ratio. Other resolutions supported

    Other Supported Resolutions

    640x480 60Hz
    720x480 60Hz
    720x576 50Hz
    800x600 56Hz
    1024x768 60Hz
    1280x720 50, 60Hz
    1280x960 60Hz
    1280x1024 60Hz
    1366x768 60Hz, 60Hz RB
    1440x900 60Hz, 60HZ RB
    1680x1050 60Hz, 60Hz RB
    1920x1080 50, 60Hz

    Viewing Angle

    Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total

    Number of Colors

    16.7 million

    Brightness (typical)

    LCD panel: 350 nits
    IntelliTouch Dual-Touch: 315 nits
    Projected Capacitive: 301 nits

    Response Time-total (typical)

    8.0 msec

    Contrast Ratio

    3000:1

    Touch Interface

    USB: E415988, E739717

    On Screen Display

    Controls: Menu, Up, Down, Select, Power
    Settings: Brightness, Contrast, Clock, Phase, Auto-Adjust, H-position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, OSD H-Position, OSD V-Position, Recall Defaults, Video Source
    Languages : English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese
    Lockouts : OSD, Power
    Accessible through switches on the unit's tethered OSD control box.

    I/O Ports

    USB Ports - Type B

    Input Video Format

    Analog VGA, HDCP-capable HDMI 1.3 and Display Port video

    Input Video Signal Connector

    Female DE-15 for Analog VGA
    HDMI 1.3 ON Type A
    DisplayPort 1.1a

    Audio Input Connector

    3.5 mm TRS jack

    Audio Input Signal Range

    1 Vrms max. stereo signal (standard PC line out)

    Headphone Output Connector

    3.5 mm TRS jack

    Speakers

    Four 5W stereo speakers

    Power Supply

    Type: Internal AC

    Input Connector

    IEC 60320 C14

    Input Voltage

    110-230 VAC 50/60Hz

    Input Frequency

    Horizontal: 60 - 73 kHz / Vertical: 47-63 Hz

    Power Consumption (Typical)

    Input power signal specifications: 100-240VAC 50/60Hz:
    With IntelliTouch Dual-Touch:
    - Monitor Only Power Consumption (typical at 110V at 60Hz):
    ON: 57 W; SLEEP: 11 W; OFF: 1 W
    - Monitor Only Power Consumption (typical at 230V at 50Hz):
    ON: 56 W; SLEEP: 10 W; OFF: 2 W

    With Projected Capacitive:
    - Monitor Only Power Consumption (Typical at 110V at 60Hz):
    ON: 64 W; SLEEP: 9 W; OFF: 1.5 W
    - Monitor Only Power Consumption (Typical at 230V at 50Hz):
    ON: 65 W; SLEEP: 9 W; OFF: 1.5 W

    Dimensions

    With IntelliTouch Dual-Touch: 30.0" x 18.0" x 3.1" / 762mm x 457mm x 78.0mm
    With Projected Capacitive: 31.1" x 19.0" x 2.8" / 790mm x 484mm x 72.0mm

    Shipping Box Dimensions

    34.5" x 23.4" x 7.9" / 885mm x 595mm x 200mm

    Weight (Unpackaged)

    IntelliTouch Dual-Touch: with ECMG2: 35.3 lbs / 16.0kg; without ECMG2: 29.8 lbs / 13.5kg
    Projected Capacitive: with ECMG2: 36.4 lbs / 16.5 kg; without ECMG2: 33 lbs / 14.8kg

    Weight (Packaged)

    IntelliTouch Dual-Touch: with ECMG2: 50.9 lbs / 23.1kg; without ECMG2: 45.4 lbs / 20.6kg
    Projected Capacitive: with ECMG2: 46.5 lbs / 21.1 kg; without ECMG2: 43.3 lbs / 19.4 kg

    Operating Temperature

    0°C to 40°C / 32°F to 104°F

    Storage Temperature

    -20°C to 60°C / -4°F to 140°F

    Humidity

    Operating: 20-80%
    Storage: 10-95%
    noncondensing

    Mounting Options

    VESA MIS-F, 400 x 400, 6mm
    Optional wall mount kit - Elo P/N: E750497

    MTBF

    50,000 hours demonstrated

    Warranty

    3-year

    Regulatory approvals and declarations

    UL, FCC, cUL, IC, CB, CE, VCCI, C-Tick, NOM CoC, GOST, BSMI, KC, e-Standby, CCC, China RoHS, with RFID: UL, with RFID: FCC, CE

    Optional Accessories/Peripherals

    Stylus pen with rubber tip, designed specifically for use with IntelliTouch SAW touch technology. Elo P/N: D82064-000, available at additional cost.
    NFC Adapter Kit - Elo P/N: E603158
    WIRELESS N/G/B ADAPTER KEY USB-R - Elo P/N: E249774

    IDS Optional Accessories

    i3 3.4 GHz ECMG2 - No OS for IDS 01 Series - Elo P/N: E001292
    i3 3.4 GHz ECMG2 - Windows 7 for IDS 01 Series - Elo P/N: E001293
    i3 3.4 GHz ECMG2 - Windows 8.1 for IDS 01 Series - Elo P/N: E001294
    i5 3.7 GHz ECMG2 - No OS for IDS 01 Series - Elo P/N: E001295
    i5 3.7 GHz ECMG2 - Windows 7 for IDS 01 Series - Elo P/N: E001296
    i5 3.7 GHz ECMG2 - Windows 8.1 for IDS 01 Series - Elo P/N: E001297
    i7 4.0 GHz ECMG2 - No OS for IDS 01 Series - Elo P/N: E001298
    i7 4.0 GHz ECMG2 - Windows 7 for IDS 01 Series - Elo P/N: E001299
    i7 4.0 GHz ECMG2 - Windows 8.1 for IDS 01 Series - Elo P/N: E001300
    Web Cam Kit - Elo P/N: E688656
    OPS Kit - Elo P/N: E102270
    OSD Control Box - Elo P/N: E483757
    Replacement Cable Kit - Elo P/N: E000263
    Wall Mount Kit - Elo P/N: E248743

    Optional Stand

    Optional stand available, order Elo P/N: E455084.
