2239L 22" Touchscreen Monitor (Discontinued April 2010)
Overview

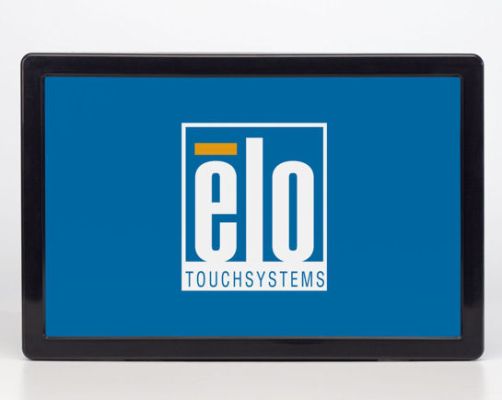

The 2239L open-frame touchmonitor delivers a cost-effective touch solution for OEMs and systems integrators and complements the expanded family of Elo touch solutions for gaming and amusement, retail self-service and kiosk applications. This compact touchmonitor is "designed for touch", with proven expertise and reliability built-in, not added as an afterthought by altering an existing monitor.
The 2239L features a brilliant wide-viewing-angle LCD panel to instantly grab and hold the user's attention, whether they are checking out retail goods with a self-service kiosk or playing games in a casino or arcade. Because the enclosure is controlled by Elo specifications and tooling, the Elo open-frame monitors have a long-lasting product cycle, which is important to maintain continuity through all phases of project rollouts and servicing. It also features a unique, injection-moulded bezel with a virtually invisible watertight seal, making it a good choice for the rigors of public use. Narrow borders, multiple mounting options, and a dual serial/USB touch interface add to the versatility of the 2239L. Worldwide agency approvals cover the entire monitor that is designed, built and supported by Elo, a true single-source supplier.
The 2239L is available with a choice of the innovative APR (Acoustic Pulse Recognition), IntelliTouch® surface acoustic wave, and surface-capacitive touch technologies. The comprehensive range of features includes analog and digital interfaces, multi-lingual on-screen display (OSD), mounting VESA standard, mounting brackets, cabled remote on-screen display (OSD), and worldwide compliance.
Other features.
- A bright, high-contrast display with wide viewing angle easily attracts and holds the user's attention.
- Pure-glass Acoustic Pulse Recognition technology combines optical quality, durability and drift-free stability, with excellent drag properties.
- IntelliTouch (surface acoustic wave) technology offers high-quality optics, durability, and long-term reliability.
- Surface-capacitive technology offers a fast, sensitive touch response with strong dragging performance.
- A transparent protective coating makes the touchscreen resistant to scratches and abrasions.
- Integrated precision mini-bezel with watertight 0.5 mm seal
- The enclosure is controlled by Elo specifications and results in a long-lasting product cycle.
- Multiple mounting options are available.
- Dual serial and USB connectivity are standard.
- Worldwide agency approvals and a three-year standard warranty are backed by Elo.
Specifications
-
Technical
Part Number(s)
Acoustic Pulse Recognition (USB, Antiglare, EMEA) - E519259
Acoustic Pulse Recognition (USB, Antiglare, Japan) - E334068
IntelliTouch (Dual serial/USB, Antiglare, EMEA) - E907314Enclosure Color
Black
Touch Technology & Capacity
SAW (IntelliTouch® Surface Acoustic Wave) - Single Touch
Acoustic Pulse Recognition - Single TouchDiagonal Size
22'' diagonal, Active matrix TFT LCD (LED)
Aspect Ratio
16:10
Active Area
18.7" x 11.7" / 474 mm x 296 mm
Resolution
1680 x 1050 at 75 Hz
Other Supported Resolutions
1680 x 1050 at 75 Hz
1600 x 1200 at 60 Hz
1440 x 900 at 60 Hz
1366 x 768 at 60 Hz
1360 x 768 at 60 Hz
1280 x 1024 at 60 or 75 Hz
1280 x 960 at 60 Hz
1280 x 768 at 65 Hz
1152 x 864 at 75 Hz
1024 x 768 at 60, 65, 72 or 75 Hz
832 x 624 at 75 Hz
800 x 600 at 56, 60, or 72 Hz
800 x 500 at 75 Hz
720 x 400 at 70 Hz
720 x 350 at 70 Hz
640 x 480 at 60, 66, or 72 HzViewing Angle
Horizontal: ±85° or 170° total / Vertical: ±80° or 160° total
Number of Colors
16.7 million
Brightness (typical)
LCD panel: 300 nits
Acoustic Pulse Recognition: 270 nits
IntelliTouch: 270 nitsResponse Time-total (typical)
5 msec
Contrast Ratio
1000:1
Touch Interfaces
USB: E519259, E334068
Dual serial/USB: E907314User Controls
Controls (back): menu, up, down, select
Settings: automatic adjustment, contrast, brightness, H/V position, clock, phase, color temperature, input video select, OSD H/V position, OSD timeout, recall color, recall default, sharpness, display information
Languages: English, French, Italian, German, Spanish, Japanese, Traditional Chinese, Simplified Chinese
Lockouts: power, user controlsInput Video Format
Analog VGA, DVI video (EMEA models without DVI)
Input Video Signal Connector
Mini D-Sub 15-Pin VGA type, DVI-D connector
Power Consumption (Typical)
50 W
Power Supply
Internal AC
Input Voltage
AC: 100–240 VAC, 50/60 Hz
Input Connector
AC: IEC 60320 C6
Input Frequency
Horizontal: 30-75 kHz / Vertical: 56-75 Hz
Monitor Dimensions (with Stand)
20.9" x 13.9" x 3.1" / 530 mm x 352 mm x 78 mm
Shipping Box Dimensions
27.17" x 10.04" x 20.87" / 690 mm x 255 mm x 530 mm
Weight (Unpackaged)
18.7 lbs / 8.5 kg
Weight (Packaged)
27.8 lbs / 12.6 kg
Operating Temperature
0°C to 40°C / 32°F to 104°F
Storage Temperature
-20°C to 60°C / -4°F to 140°F
Humidity
Operating: 20%-80%
Storage: 10%-90%
noncondensingSealability
Touchscreen sealed to bezel
Touchscreen sealed to LCDMTBF
50,000 hours demonstrated
Mounting Options
100 mm VESA mount
Mounting brackets includedWarranty
3-year
Backlight lamp life
Typical 50,000 hours to half brightness
Regulatory approvals and declarations
Australia C-Tick, China CCC, Japan VCCI, Korea EK, Korea MIC, Taiwan BSMI, Argentina S-mark, UL, cUL, FCC, Mexico NOM, CE, Russia PCT, China RoHS, WEEE, IMERC
Cable Kit for Replacement Cables
Elo p/n: E378229 (gray), available at additional cost.
Optional IntelliTouch Stylus Pen
D82064-000, available at additional cost.
