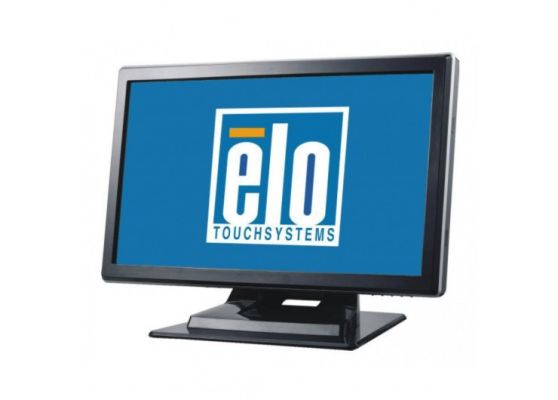

2200L 22" Touchscreen Monitor (Discontinued November 2015)
Overview
Consisting of a glass scratch-resistant touchscreen, the 1900L desktop touchmonitor delivers benefits that combine the ultimate in optical qualities with a stylish, built-for-touch design, developed for use in public environments.
The 2200L is available with IntelliTouch® surface acoustic wave touch technology, a pure-glass touchscreen that provides superior optical performance.
Wide-aspect displays like the 2200L are easier to use and incorporate into the workplace than traditional desktop touchmonitors. The wide-screen format allows extra content on the screen and is quickly becoming preferred in corporate environments for publishing and dual window applications, and is popular in public venue environments due to a high-definition cinematic-like experience.
Typical applications include point-of-sale (POS), point-of-information (POI), point-of-service, interactive digital signage, loyalty systems, kiosk information systems, light industrial shop-floor automation and home control.
Other features.
- Wide-screen format provides more application space
- Pure glass construction provides superior optical performance
- "Designed for touch" features such as a stable tilt stand
- Space-saving built-in speakers
- Sleek, integrated design offers a stylish look for public venues
- User-lockable on-screen display – designed for public access
- Adjustable height stand provides the flexibility to be raised or lowered to meet the application's height requirements - can also be used in portrait mode
- VESA compliance makes wall or arm-mounting possible
- AC and DC power for maximum input flexibility
- VGA and DVI video input (Asia/Pacific models without DVI)
- Screen is resistant to water, dust, grease
- One-time factory calibration for easy deployment and integration
Specifications
-
Technical
Part Number(s)
IntelliTouch (Dual serial/USB, Clear, Americas) - E432721
IntelliTouch (Dual serial/USB, Clear, Americas) - E123233
IntelliTouch (Dual serial/USB, Clear, EMEA) - E808372Enclosure Color
Dark Gray or Beige
Touch Technology & Capacity
SAW (IntelliTouch® Surface Acoustic Wave) - Single Touch
Diagonal Size
22'' diagonal, Active matrix TFT LCD (LED)
Aspect Ratio
16:10
Active Area
18.7" x 11.7" / 474 mm x 296 mm
Resolution
1680 x 1050 at 60 Hz
Other Supported Resolutions
1680 x 1050 at 60 Hz
1440 x 900 at 60 Hz
1366 x 768 at 60 Hz
1360 x 768 at 60 Hz
1280 x 1024 at 60 or 75 Hz
1280 x 960 at 60 Hz
1280 x 768 at 65 Hz
1152 x 864 at 75 Hz
1024 x 768 at 60, 65, 72 or 75 Hz
832 x 624 at 75 Hz
800 x 600 at 56, 60 or 72 Hz
720 x 400 at 70 Hz
720 x 350 at 70 Hz
640 x 480 at 60, 66 or 72 HzViewing Angle
Horizontal: ±80° or 160° total / Vertical: ±80° or 160° total
Number of Colors
16.7 million
Brightness (typical)
LCD panel: 300 nits
IntelliTouch: 270 nitsResponse Time-total (typical)
5 msec
Contrast Ratio
1000:1
Touch Interface
Dual serial/USB
User Controls
Controls (side): menu, up, down, select, power
Settings: automatic adjustment, contrast, brightness, H/V position, clock, phase, fill screen, color temperature, input video select, OSD H/V position, OSD timeout, recall defaults, sharpness, volume, mute, input video select
Languages: English, French, Italian, German, Spanish, Japanese, Traditional Chinese, Simplified Chinese
Lockouts: power, user controlsAudio Input Connector
3.5mm TRS jack
Headphone Output Connector
3.5mm TRS jack
Speakers
Two 2W internal speakers
Input Video Format
Analog VGA, DVI video (Asia/Pacific models without DVI)
Input Video Signal Connector
Mini D-Sub 15-Pin VGA type, DVI-D connector
Power Consumption (Typical)
75W
Power Supply
Internal AC, Optional external DC (power brick)
Input Voltage
AC: 100-240 VAC, 50/60 Hz; DC: 12 VDC ±5%
Input Connector
AC: IEC 60320 C6; DC: Coaxial power jack (2 mm pin diameter, 6.5 mm barrel diameter, 10 mm barrel length)
Input Frequency
Horizontal: 30-83 kHz / Vertical: 53-75 Hz
Monitor Dimensions (with Stand)
20.3" x 15.8" x 13.5" / 516mm x 401mm x 343mm
Shipping Box Dimensions
20.67" x 10.06" x 26.77" / 525mm x 255mm x 680mm
Weight (with stand)
22.2 lbs / 10.1 kg
Weight (without stand)
15.0 lbs / 6.8 kg
Shipping Weight (With stand)
30.0 lbs / 13.6 kg
Operating Temperature
0°C to 40°C /32°F to 104°F
Storage Temperature
-20°C to 60°C / -4°F to 140°F
Humidity
Operating: 20%-80%
Storage: 10%-90%
noncondensingAltitude
Operating: 0 to 3658m / 12,000 ft
Storage: 0 to 12,192m / 40,000 ftSealability
Touchscreen sealed to bezel
Touchscreen sealed to LCDMTBF
50,000 hours demonstrated
Stand Options
Tilt, removable, adjust height, pivot (landscape/portrait mode)
Mounting Options
100 mm VESA mount
Threaded-through mounting holes, under standOther Features
Security lock receptacle
Warranty
3-year
Regulatory approvals and declarations
North America/Worldwide: USA UL, Canada cUL, Mexico NOM, CB
South America: Argentina S-mark
EMEA: Russia PCT
Asia: Australia C-Tick, Japan VCCI, Koreak eK, Korea MIC, Taiwan BSMI
Elo Declarations: RoHS, China RoHS, WEEE, IMERC, CEAC Power Cable
For touchmonitors being shipped to the Americas, a North American AC power cable is included.
For touchmonitors being shipped to EMEA, a European and a UK AC power cable are included. For touchmonitors being shipped to Asia, AC power cords for China, Taiwan and Korea are included.Cable Kit for Replacement Cables
Elo p/n: E378229 (gray) or E410150 (beige), available at additional cost.
Optional IntelliTouch Stylus Pen
D82064-000, available at additional cost.
Touch/Video/Audio/Accessory Cables:
Detachable touch, audio, power and video cables are included.
Optional Accessories/Peripherals
North America Power Brick (N. America) - Elo p/n: E480320
European Power Brick (EMEA) - Elo p/n: E252938
UK Power Brick (UK) - Elo p/n: E872515Optional Stand
Desktop Stands:
Dark gray: Elo p/n: E647647, available at additional cost.
Beige: Elo p/n: E830716, available at additional cost.
