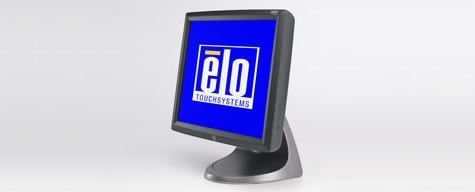

1926L 19" Touchscreen Monitor (Discontinued August 2006)
Overview
The 1926L carries worldwide medical certifications and is available with AccuTouch five-wire resistive touchscreen technology, the most widely used technology for medical equipment applications, or IntelliTouch surface wave technology for superior image quality. Certifications include UL/cUL 2601-1/C22.2 No. 601.1, and CE MDD. The innovative IPX1 enclosure design (AccuTouch only) ensures that the entire touchmonitor sheds water and is safe from liquid drops and spills. The drip-proof nature of this touchmonitor allows the monitor to be sterilized with hospital-grade disinfectants. As a result, this monitor can be safely placed in patient care areas, such as the operating room, where contamination may occur. The touchscreen can be activated with a gloved hand-a critical capability for medical applications. The 1926L is a truly integrated solution for medical equipment OEMs and health care systems integrators seeking a reliable, durable and cost-effective medical grade touchmonitor.
Other features.
- High quality panel with 170°x170° viewing angle
- Analog and digital (DVI-D) video inputs, plus S-video input and RCA jack
- Two external USB ports for peripherals
- "Designed for touch" features such as a stable tilt base (-5° from vertical to 90°/horizontal)
- Cables hidden from user's view
- Mounting holes on base bottom for tabletop security
- Base removable or reversible for wall mounting, plus VESA mounting option
- Built-in speakers located in display head
- Available with AccuTouch® Five-Wire Resistive Technology or IntelliTouch® Surface Wave Technology and serial or USB interface
- Sealed touchscreen
- Controls on the side rather than the front, plus lockout function for public use
- Multilingual on-screen display (OSD) with extras including speaker volume, treble, bass, and balance
- Long-lasting product cycle
- Worldwide agency approvals
Specifications
-
Technical
Part Number(s)
IntelliTouch (Serial, Antiglare, Worldwide) - F05428-000
IntelliTouch (USB, Antiglare, Worldwide) - F72589-000
IntelliTouch (Serial, Antiglare, Worldwide) - D32651-000
IntelliTouch (USB, Antiglare, Worldwide) - E61907-000Enclosure Color
Dark Gray or Beige
Touch Technology & Capacity
SAW (IntelliTouch® Surface Acoustic Wave) - Single Touch
Diagonal Size
19'' diagonal, Active matrix TFT LCD (LED)
Aspect Ratio
5:4
Active Area
14.8" x 11.9" / 376mm x 301mm
Resolution
1280 x 1024 at 60, 70 or 75 Hz
Other Supported Resolutions
1152 x 864 at 75 Hz
1024 x 768 at 60, 65, 70 or 75 Hz
832 x 624 at 75 Hz (Mac)
800 x 600 at 56, 60, 72 or 75 Hz
720 x 400 at 70 Hz
720 x 350 at 70 Hz
640 x 480 at 60, 66, 72 or 75 HzViewing Angle
Horizontal: ±85° or 170° total / Vertical: ±85° or 170° total
Number of Colors
16.7 million, 8-bit per color data
Brightness (typical)
LCD panel: 300 nits
IntelliTouch: 276 nitsResponse Time-total (typical)
25 msec
Contrast Ratio
700:1
Touch Interface
Serial: F05428-000, D32651-000
USB: F72589-000, E61907-000On Screen Display
Digital
Locking OSD and/or powerUser Controls
OSD: brightness, contrast, color temperature, H/V position, phase/clock, recall, auto-adjust, input select,
Languages: English, Spanish, German, French, Italian, Swedish, Finnish, Danish, Portuguese, Dutch, JapaneseAudio Input Connector
Computer audio on 3.5mm stereo mini
Audio for video on dual RCA jacksSpeakers
Two built-in, rear-facing 2W speakers in display head
Input Video Format
Digital Video Input (DVI-D), analog, S-Video, NTSC/PAL
Input Video Signal Connector
DVI-I, RCA, S-Video on monitor
DVI-D, HD-15, S-Video, RCA plugs via cablesPower Consumption (Typical)
40 W
Power Supply
External (inlet connector: IEC60320-C13)
Input Voltage
100-240 V, 50/60 Hz
Input Frequency
Horizontal: 31-80 kHz / Vertical: 56-75 Hz
Sync Types
Separate H & V, composite sync, sync-on-green
Monitor Dimensions (with Stand)
17.2" x 18.0" x 9.49" / 436mm x 457mm x 241mm
Weight (Unpackaged)
21.5 lbs / 9.78 kg
Weight (Packaged)
30.0 lbs / 13.6 kg
Operating Temperature
0°C to 40°C
Storage Temperature
-20°C to 60°C
Humidity
Operating: 20%-80%
Storage: 5%-90%
noncondensingMTBF
50,000 hours demonstrated
Mounting Options
100 mm M4 VESA mount
100 mm M5 threaded holes on base bottom for table top security
Removable base
Reversible stand for wall mounting
Stand rotates from -5° (from vertical) to 90° (horizontal)
Locking tilt controlWarranty
3-year
Regulatory approvals and declarations
UL, cUL Classified 60601-1, CE, FCC, IC, C-Tick Class B, IPX1 (AccuTouch only)
Power Cables
A 10' hospital grade North America power cord and a European power cable are included.
For touchmonitors being shipped to the United Kingdom, add a UK power cable at no cost by specifying Elo p/n: 276875-000.Touch/Video/Audio/Accessory Cables:
Detachable touch and video cables are included.
Optional Peripherals
Magnetic Stripe Reader (MSR) – Elo P/N: E039290
