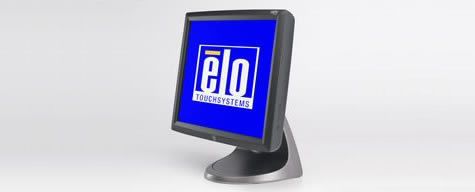

1925L 19" Touchscreen Monitor (Discontinued September 2007)
Overview
The 1925L 19" touchmonitor is the latest addition to the popular Elo desktop line, designed to address the key needs of touch applications requiring a large, visually appealing display. The 1925L can truly be called "designed for touch" with features such as a stable tilt base, OSD controls on the side with lockout feature for public use, speakers, and flexible input/output connectivity, including extra USB connections. It has a unique combination of performance, reliability, installation and ease-of-use, all with distinctive new styling.
Other features.
- High quality panel with 170°x170° viewing angle
- Analog and digital (DVI-D) video inputs, plus S-video input and RCA jack
- Two external USB ports for peripherals
- "Designed for touch" features such as a stable tilt base (-5° from vertical to 90°/horizontal)
- Cables hidden from user's view
- Mounting holes on base bottom for tabletop security
- Base removable or reversible for wall mounting, plus VESA mounting option
- Built-in speakers located in display head
- Available with AccuTouch® Five-Wire Resistive Technology or IntelliTouch® Surface Wave Technology and serial or USB interface
- Sealed touchscreen
- Controls on the side rather than the front, plus lockout function for public use
- Multilingual on-screen display (OSD) with extras including speaker volume, treble, bass, and balance
- Long-lasting product cycle
- Worldwide agency approvals
Specifications
-
Technical
Part Number(s)
AccuTouch (Serial, Antiglare, Worldwide) - E974307
AccuTouch (USB, Antiglare, Worldwide) - E776519
IntelliTouch (USB, Antiglare, Worldwide) - E960780Enclosure Color
Dark Gray
Touch Technology & Capacity
5-Wire Resistive (AccuTouch®) - Single-Touch
SAW (IntelliTouch® Surface Acoustic Wave) - Single TouchDiagonal Size
19'' diagonal, Active matrix TFT LCD (LED)
Aspect Ratio
5:4
Active Area
14.8" x 11.9" / 376mm x 301mm
Resolution
1280 x 1024
Other Supported Resolutions
1280 x 1024 at 60 or 75 Hz
1152 x 864 at 75 Hz
1024 x 768 at 60, 65, 70 or 75 Hz
832 x 624 at 75 Hz (Mac)
800 x 600 at 56, 60, 72 or 75 Hz
720 x 400 at 70 Hz
720 x 350 at 70 Hz
640 x 480 at 60, 66, 72 or 75 HzViewing Angle
Horizontal: ±85° or 170° total / Vertical: ±85° or 170° total
Number of Colors
16.7 million
Brightness (typical)
LCD panel: 300 nits
AccuTouch: 246 nits
IntelliTouch: 276 nitsResponse Time-total (typical)
25 msec
Contrast Ratio
700:1
Touch Interface
Serial: E974307
USB: E776519, E960780On Screen Display
Digital
Locking OSD and/or powerUser Controls
OSD: brightness, contrast, color temperature, H/V position, phase/clock, recall, auto-adjust, input select,
Languages: English, Spanish, German, French, Italian, Swedish, Finnish, Danish, Portuguese, Dutch, JapaneseAudio Input Connector
Computer audio on 3.5mm stereo mini
Audio for video on dual RCA jacksSpeakers
Two built-in, rear-facing 2W speakers in display head
Input Video Format
Digital Video Input (DVI-D), Analog, S-Video, NTSC/PAL
Input Video Signal Connector
DVI-I, RCA, S-Video on monitor
DVI-D, HD-15, S-Video, RCA plugs via cablesInput Video Frequency
Separate H & V, composite sync, sync-on-green
Power Consumption (Typical)
40 W
Power Supply
Internal, with jack to accept power from optional external brick
Input Voltage
85-265 V, 50-60 Hz and/or 12VDC @ 3.75A (max)
Input Connector
Inlets IEC60320-1C6 for AC and 5.5 mm external
2.5 mm internal coaxial for DC
Cords NEMA 15-3 and CEE 7 SchukoInput Frequency
Horizontal: 31-80 kHz / Vertical: 56-75 Hz
Monitor Dimensions (with Stand)
17.2" x 18.0" x 9.49" / 436mm x 457mm x 241mm
Weight (Unpackaged)
21.5 lbs / 9.78 kg
Weight (Packaged)
30.0 lbs / 13.6 kg
Operating Temperature
0°C to 40°C
Storage Temperature
-20°C to 60°C
Humidity
Operating: 20%-80%
Storage: 5%-90%
noncondensingMTBF
50,000 hours demonstrated
Mounting Options
100 mm M4 VESA mount
100 mm M5 threaded holes on base bottom for table top security
Removable base
Reversible stand for wall mounting
Stand rotates from -5° (from vertical) to 90° (horizontal)
Locking tilt controlWarranty
3-year
Backlight lamp life
50,000 hours
Regulatory approvals and declarations
UL, cUL, TmÜV-GS, CE, FCC, IC, VCCI, C-Tick Class B, CB Report, Certificate, MPRII, Section 508
AC Power Cable
North American and European AC power cables are included.
For touchmonitors being shipped to the United Kingdom, add a UK AC power cable at no cost by specifying Elo p/n: E540272.
A replacement North American AC power cable, Elo p/n: C45467-000, is available at additional cost.
AC power cables for power brick are also available at additional cost:
United States: Elo p/n: E042259
Europe: Elo p/n: E690013
United Kingdom: Elo p/n: E235317Optional Power Supply Brick
The monitor may also be powered with DC voltage. An optional 12V DC power brick, Elo p/n: E034907, is available at additional cost
Optional IntelliTouch Stylus Pen
Stylus pen with rubber tip, designed specifically for use with IntelliTouch SAW touch technology. Elo p/n: D82064-000, available at additional cost.
Touch/Video/Audio/Accessory Cables:
Detachable touch and video cables are included. A replacement DVI-I Analog video cable, part number E38043-000, is available at additional cost.
Optional Peripherals
Magnetic Stripe Reader (MSR) – Elo P/N: E039290
North America Power Brick - Elo P/N: E348315
Europe Power Brick - Elo P/N: E162361
UK Power Brick - Elo P/N: E334749
China Power Brick - Elo P/N: E834397
Taiwan Power Brick - Elo P/N: E953228
Korea Power Brick - Elo P/N: E986605
Japan Power Brick - Elo P/N: E033396
Argentina Power Brick - Elo P/N: E707702
