1919L 18.5" Touchscreen Monitor (Discontinued March 2017)
Overview

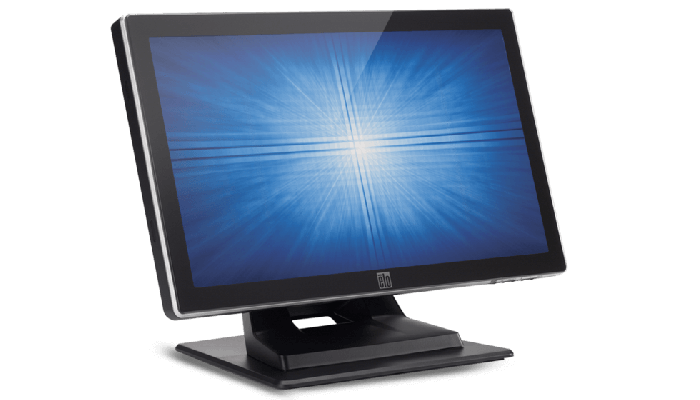

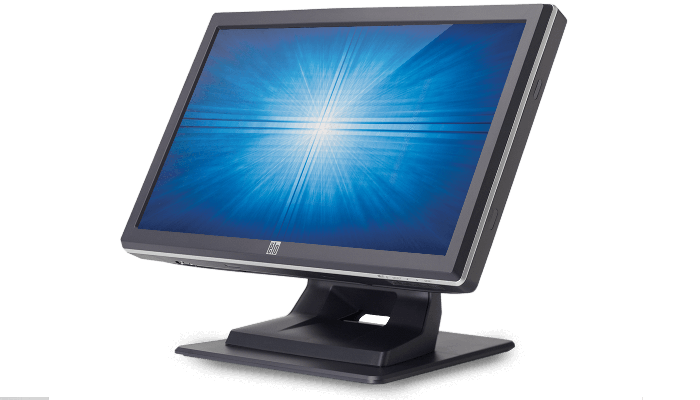

The Elo 1919L 18.5-inch widescreen touchscreen monitor is built to withstand the rigors of continuous public use with a rugged built-for-touch design. Its stylish, thin and modern look, coupled with room for more content, makes the 1919L an attractive solution for commercial touchscreen monitor needs. The 1919L is well-suited for corporate, point-of-sale (POS), point-of-information (POI), point-of-service, interactive signage, loyalty systems, kiosk, light industrial shop-floor automation and home control. The touchmonitor is available with two industry-leading Elo touch technologies and multiple mounting options to support most application uses.
Integrated touch.The 18.5-inch touchscreen monitor offers a zero-bezel IntelliTouch® surface acoustic wave (SAW) touch technology. |
 |
 |

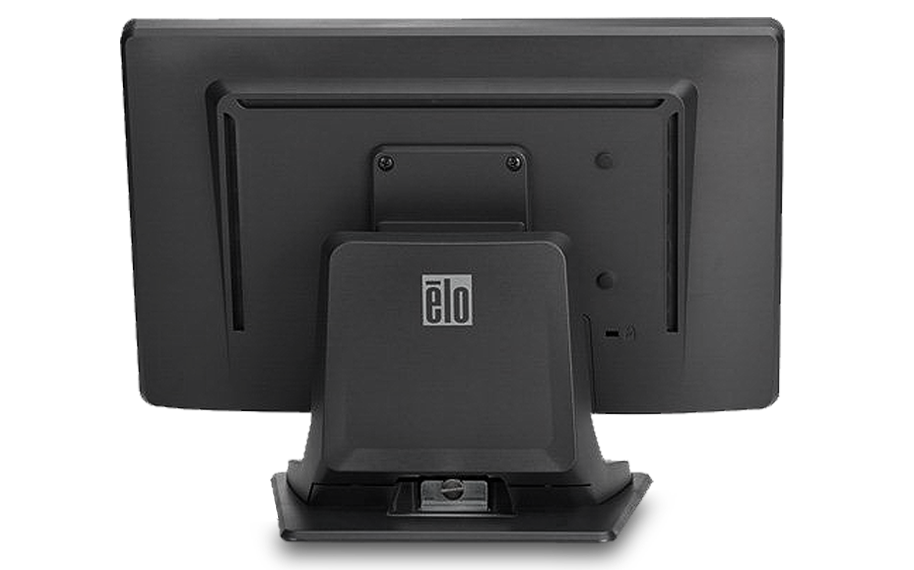

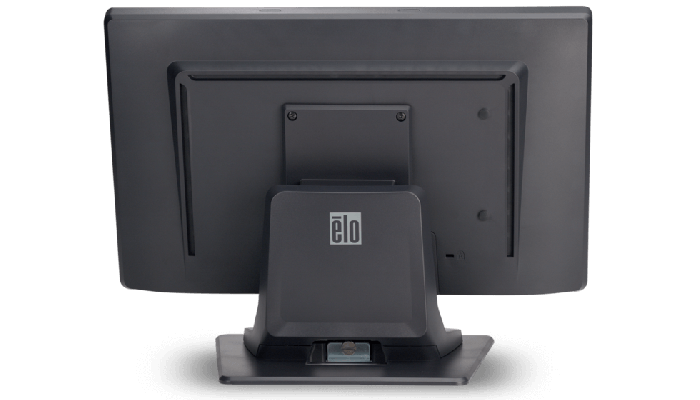

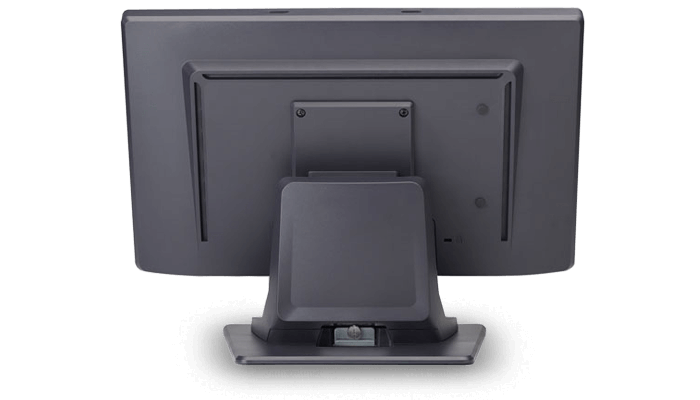

Flexible mounting.The Elo 1919L offers multiple mounting options to ensure installation flexibility including: wall-, arm- and pole-mount via standard VESA mount patterns as well as tabletop accommodations with the use of the desktop stand. |

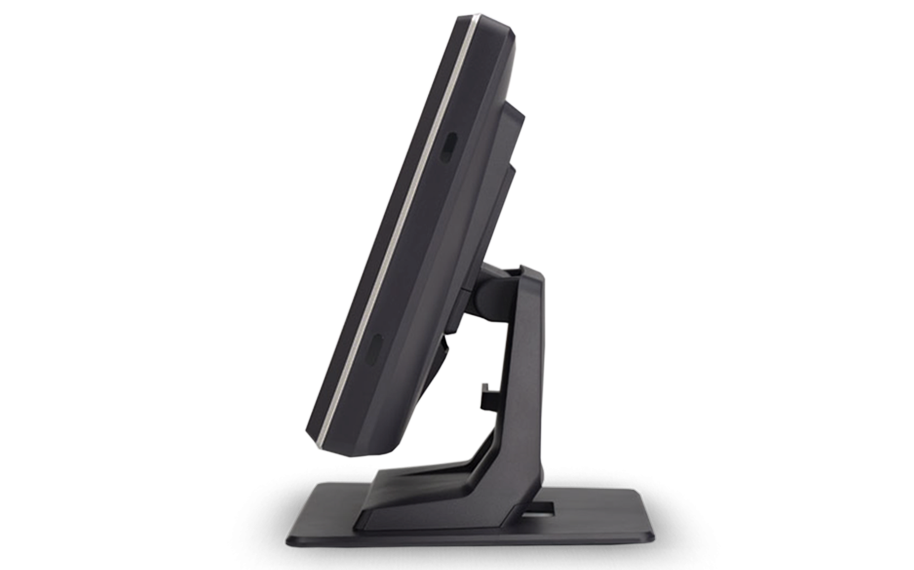

Commercial grade.The 1919L touchscreen monitor delivers the quality and reliability Elo is known for and is backed by our three-year standard warranty. All our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF. |
 |
Other features.
- Widescreen format provides more application space
- Sealed touchscreen against dirt, dust and liquid
- Space-saving built-in speakers
- User-lockable on-screen display – designed for public access
- VESA compliance makes wall or arm-mounting possible
- VGA video input
- One-time factory calibration for easy deployment and integration (APR only)
- Three-year standard warranty
Specifications
-
Technical
Part Number(s)
IntelliTouch ZB (Americas) - E176026
Enclosure Color
Dark Gray
Touch Technology & Capacity
SAW ZB (IntelliTouch® Surface Acoustic Wave) - Single Touch
Diagonal Size
18.5'' diagonal, Active matrix TFT LCD (LED)
Aspect Ratio
16:9
Active Area
16.1" x 9.1" / 410mm x 230mm
Resolution
1366 x 768 at 60 Hz
Other Supported Resolutions
720 x 350 at 70Hz (may not display at full screen)
720 x 400 at 70Hz
640 x 480 at 60, 72, 75Hz
800 x 600 at 56, 60, 72, 75Hz
832 x 624 at 75Hz
1024 x 768 at 60, 70, 75Hz
1280 x 800 at 60 Hz
1280 x 960 at 60Hz
1280 x 1024 at 60, 75Hz
1360 x 768 at 60Hz
1366 x 768 at 60 Hz
1440 x 900 at 60 Hz
1600 x 1200 at 60 Hz
1680 x 1050 at 60 HzViewing Angle
Horizontal: ±85° or 170° total / Vertical: ±80° or 160° total
Number of Colors
16.7 million
Brightness (typical)
LCD panel: 250 nits
AccuTouch: 200 nits
IntelliTouch ZB: 225 nitsResponse Time-total (typical)
5 msec
Contrast Ratio
1000:1
Input Video Format
Analog VGA
Input Video Signal Connector
Mini D-sub 15-pin VGA type
Input Video Frequency
Horizontal: 30 - 83 KHz
Vertical: 50 - 75 HzAudio Input Connector
3.5mm TRS jack
Audio Input Signal Range
1V rms maximum stereo signal (standard PC line out)
Headphone Output Connector
3.5mm TRS jack x 2, wired in parallel
Headphone Output Signal
Delivers 90mW of power into a single 32-ohm stereo load (for 1KHz signal)
Power Supply
AC-DC power adapter
Input Voltage
12V +/- 5%
Input Connector
Coaxial power jack (Barrel inner diameter: 6.4 ± 0.3mm. Pin outer diameter: 2.0 + 0.0-0.1mm. Barrel depth: 8.8 ± 0.3mm)
Adapter Input Connector
IEC 60320 C14
Adapter Input Voltage Range
100-240VAC, 50/60 Hz
Power Consumption (Typical)
Monitor only (no audio): 18.5 W
Monitor + AC/DC Adapter at 230V/50 Hz (no audio): 20.7WSpeakers
Two x 2W internal speakers
On Screen Display
Controls: menu, up, down, select, power
Settings: automatic adjustment, contrast, brightness, H/V position, clock, phase, maintain aspect ratio, color temperature, OSD H/V position, OSD timeout, OSD rotation, OSD language (English, French, Italian, German, Spanish, Japanese, Traditional Chinese, Simplified Chinese), Recall Defaults, Sharpness, Volume, Mute
Languages: English, French, Italian, German, Spanish, Japanese, Traditional Chinese, Simplified Chinese
Lockouts: power, user controlsMonitor Dimensions (with Stand)
17.9" x 9.3" x 12.6" / 454mm x 236mm x 321mm
Shipping Box Dimensions
22.4" x 16.3" x 8.9" / 570mm x 415mm x 225mm
Weight (with stand)
15.1 lbs / 6.8 kg
Weight (without stand)
10.2 lbs / 4.6 kg
Shipping Weight (With stand)
21.5 lbs / 9.7 kg
Operating Temperature
0°C to 40°C / 32°F to 104°F
Storage Temperature
-20°C to 60°C / -4°F to 140°F
Humidity
Operating: 20% to 80%
Storage: 10% to 90%Sealability
Touchscreen sealed to bezel
Touchscreen sealed to LCDMTBF
50,000 hours demonstrated
Stand Options
Tilt, remove, pivot (landscape/portrait mode)
Mounting Options
With provided stand (on flat surface or bolted to surface via holes in base) in landscape or portrait mode
100 mm VESA mountWarranty
3-year
Extended Service Options
1 Year Extended Warranty - Elo P/N: 758588-000
2 Year Extended Warranty - Elo P/N: 930057-000
Elo Advance Unit Replacement (AUR) - Elo P/N: E67295-000Regulatory approvals and declarations
UL, cUL, CE, CCC, VCCI, KC, KCC, CoC, BSMI, CB, RoHS, China RoHS, WEEE, IMERC
What's in the Box
QIG, User Manual CD, VGA cable, USB cable, Serial cable (attached if support combo), Audio cable, power cord, power adapter, screws for cable cover and stand plate
Cable Kit for Replacement Cables
P/N: E378229 (Gray)
Optional Power Supply Brick
North America: E005277
EMEA & Korea: E571601
UK: E180092
China: E558862
Taiwan: E818655
Japan: E182546
Argentina: E887099Optional IntelliTouch Stylus Pen
Stylus pen with rubber tip, designed specifically for use with IntelliTouch SAW technology. Elo P/N: D82064-000, available at additional cost.
