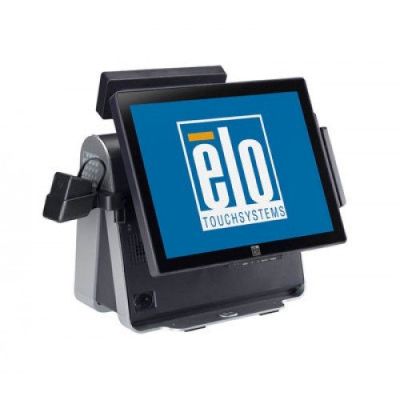

17D1 17" Touchcomputer (Discontinued August 2012)
How to buy

Overview

The 17D Series 17" All-in-One Touchcomputers bring style, flexibility and functionality to point-of-sale (POS), retail and hospitality businesses. With a wide array of field-installable peripherals, spill-resistant sealing, and a range of input/output port connection options, the 17D1 and 17D2 are versatile and powerful. These touchcomputers are designed with the future in mind, allowing easy serviceability of the main components and excellent performance utilizing Intel Dual-Core 2.2 GHz or Intel Core Duo 3.0 GHZ processors. The 17D Series expands the Elo TouchSystems high profile family of reliable, easy-to-integrate multi-function touch solutions.

Features
  • "Designed for touch" from the ground-up; stable stand and tiltable display - Elo quality and reliability
  • Available with Zero-Bezel Acoustic Pulse Recognition, True-Flat AccuTouch® 5-wire resistive, and IntelliTouch® surface acoustic wave technology - Wide portfolio of touch technologies, each optimized for different operating characteristics and environments to suit your application requirements
  • Touchscreen sealed from the factory - Eliminate accidental damage when liquids are spilled
  • Long-lasting product design - Elo touchcomputers have a history of being available—with an unchanged mechanical design—throughout all phases of project rollouts, and even when future spares are needed
  • Bright high contrast - Improved screen readability
  • On-screen display controls located on the bottom rather than the front, plus lockout function for public use - Minimizes accidental or inadvertent changes to the display's controls
  • Security lock receptacle - Provides fast, effective, and convenient security
  • Supports 2nd internal SATA hard disk drive - Enables extra storage capacity or disk mirroring (RAID) for data protection
  • Worldwide agency approvals - Meets local agency approvals, as required in many countries
  • Field-installable peripherals - Minimizes downtime with peripherals that are easily installed in the field rather than factory
  • Field-replaceable motherboard, hard drive and power supply - Easy serviceability minimizes downtime
  • Excellent cable management and cables hidden from view - Eliminate accidental disconnection and give a clean, professional look
  • 5 serial (2 of which are powered, 5V default/12V switchable), 7 USB 2.0, Ethernet 100/10 Base-T, Cash drawer port, 2 PS/2, Audio (1 line-in, 1 line-out, 1 mic-in), 24V printer power connector, parallel port - Accessible POS/POI-focused input/output ports make installation of peripherals easy
  • Clips on the back of the unit - Allow users to display customer-facing messages or advertising
  • 3-year warranty - Customer satisfaction and peace of mind

Specifications

  • Technical

    Part Number(s)

    AccuTouch (Antiglare, Worldwide) - E107932
    AccuTouch (Antiglare, Worldwide) - E178811
    AccuTouch (Antiglare, Worldwide) - E942332
    AccuTouch (Antiglare, Worldwide) - E848814
    AccuTouch (Antiglare, Worldwide) - E181180
    AccuTouch (Antiglare, Worldwide) - E699044
    IntelliTouch (Antiglare, Worldwide) - E680924
    IntelliTouch (Antiglare, Worldwide) - E451690
    IntelliTouch (Antiglare, Worldwide) - E875048
    IntelliTouch (Antiglare, Worldwide) - E831493
    IntelliTouch (Antiglare, Worldwide) - E470276
    IntelliTouch (Antiglare, Worldwide) - E542060
    Acoustic Pulse Recognition (Antiglare, Worldwide) - E747957
    Acoustic Pulse Recognition (Antiglare, Worldwide) - E187833
    Acoustic Pulse Recognition (Antiglare, Worldwide) - E726010
    Acoustic Pulse Recognition (Antiglare, Worldwide) - E520140
    Acoustic Pulse Recognition (Antiglare, Worldwide) - E995346
    Acoustic Pulse Recognition (Antiglare, Worldwide) - E031317

    Enclosure Color

    Dark Gray

    Touch Technology & Capacity

    5-Wire Resistive (AccuTouch®) - Single-Touch
    SAW (IntelliTouch® Surface Acoustic Wave) - Single Touch
    Acoustic Pulse Recognition - Single Touch

    Processor

    Intel Dual-Core Celeron E1500 2.2GHz 512K L2 Cache 800MHz FSB LGA775 Pkg

    BIOS

    AMI

    Memory (RAM)

    1GB DDR2 DIMM on 1 of 2 slots (Expandable to 4GB max on 2 slots)

    Hard Disk Drive

    160GB 2.5” 160GB SATA HDD
    Optional 2nd 160GB hard drive available

    Chipset

    Intel G31/ICH7

    Diagonal Size

    17'' diagonal, Active matrix TFT LCD (LED)

    Control Buttons

    Controls (bottom): menu, up, down, select, power
    Settings: brightness, contrast, phase, auto adjust, H-position, V-position, clock, sharpness, RGB, OSD H-position, OSD V-position, OSD time, OSD language, recall
    Languages: English, French, Italian, German, Spanish, Japanese, Traditional Chinese, Simplified Chinese
    Lockouts: user controls

    Aspect Ratio

    5:4

    Active Area

    13.3" x 10.6" / 338 mm x 270 mm

    Resolution

    1280 x 1024 @ 60Hz

    Number of Colors

    16.7 million

    Brightness (typical)

    LCD panel: 300 nits
    AccuTouch: 240 nits
    Acoustic Pulse Recognition: 270 nits
    IntelliTouch: 270 nits

    Response Time-total (typical)

    5 msec

    Contrast Ratio

    1000:1

    Viewing Angle

    Horizontal: ±80° or 160° total / Vertical: ±80° or 160° total

    I/O Ports

    2 x PS/2 (1 Keyboard and 1 Mouse)

    USB Ports

    7 x USB2.0 ports
    Additional internal ports available for optional Elo peripherals.

    Serial Ports

    1 x RS-232 (standard)
    2 x USB-to-Serial RS-232 (standard)
    2 x USB-to-Serial RS-232 powered (5V default/12V; selectable via jumper)

    Ethernet Port

    1 x LAN RJ45 (Gigabit)

    Wireless

    Optional USB wireless kit available (802.11b/g/n)

    Cash Drawer Port

    1 x cash drawer (12V/24V default; selectable via jumper)
    Compatible with the following APG models:
    -MultiPRO 320 with CD-005A cable
    -MultiPRO 420 with CD-039A cable

    Audio Ports

    1 x 3.5mm line-in
    1 x 3.5mm line-out
    1 x 3.5mm mic-in

    Speakers

    Two 2W internal speakers

    OS

    No OS
    Windows Embedded for Point of Service (WEPOS)
    Windows XP Professional Service Pack 3 (32-bit only)
    Windows POSReady 2009
    Windows 7 Professional (32-bit only)

    Languages

    Windows XP – 24 Language groups; Windows 7 – 35 Language groups
    WEPOS - 32 language groups
    Windows POSReady 2009 – 32 Language groups

    Power Supply

    Internal PSU (270W)

    Input Voltage

    AC: 100-240 VAC 47-63 Hz

    Power Consumption (Typical)

    Without Peripherals: 130W
    With All Peripherals Connected: 213W

    Max Touchcomputer Dimensions With Stand

    15.0" x 8.4" x 11.3" / 381 mm x 212 mm x 288 mm

    Shipping Box Dimensions

    17.72" x 13.39" x 18.7" / 450 mm x 340 mm x 475 mm

    Weight (Unpackaged)

    26 lbs / 11.79 kg

    Weight (Packaged)

    30.7 lbs / 13.93 kg

    Operating Temperature

    0°C to 35°C / 32°F to 95°F

    Storage Temperature

    -20°C to 60°C / -4°F to 140°F

    Humidity

    Operating: 20% - 80%
    Storage: 5% - 95%

    Regulatory approvals and declarations

    UL/cUL, CB, CE, BSMI, NOM, AR S-Mark, CCC, EK, FCC, KCC, GOST-R, RCM, C-Tick, VCCI

    Real-Time Clock

    lithium-ion battery

    MTBF

    50,000 hours demonstrated

    Mounting Options

    Ability to secure base to tabletop or desktop; tiltable stand

    Warranty

    3-year

    Sealability

    Touchscreen sealed to bezel (IntelliTouch)
    Touchscreen sealed to sub-bezel (AccuTouch, APR)
    Touchscreen sealed to LCD (all)

    Power Cables

    North American and European power cables included

    Other Features

    Serviceable internal components
    Threaded holes on bottom of base for mounting
    Kensington security lock

    Upgrade Options

    320GB 5400 rpm Hard Disk Drive (HDD) - Elo P/N: E274069

    Expansion Options

    Optional USB wireless kit available (802.11b/g/n)
    Printer power cable
    24V Powered USB Cable/Adapter
    Second 160GB Hard Disk Drive (HDD)
    Solid State Drive (SSD)
    2nd HHD/SSD Mounting Kit Only
    1GB Low-Profile DDR2 Memory DIMM Kit
    2GB Low-Profile

    E-Series AC Power Cables Ordering Information

    North America p/n: E042259

    Optional IntelliTouch Stylus Pen

    D82064-000, available at additional cost.

    Optional Acoustic Pulse Recognition (APR) Stylus Pen

    E963860, available at additional cost.

    Optional Accessories/Peripherals

    Single-line barcode scanner
    Omni-directional barcode scanner
    Optional USB wireless kit available (802.11b/g/n)
    Printer power cable
    24V Powered USB Cable/Adapter
    Second 160GB Hard Disk Drive (HDD)
    64GB Solid State Drive (SSD)
    2nd HHD/SSD Mounting Kit Only
    1GB Low-Profile DDR2 Memory DIMM Kit
    2GB Low-Profile DDR2 Memory DIMM Kit
    Magnetic Stripe Reader - Elo P/N: E145919
    Rear-Facing Customer Display (2x20 VFD) - Elo P/N: E632206
    Biometric Fingerprint Reader (FPR) - Elo P/N: E373639
