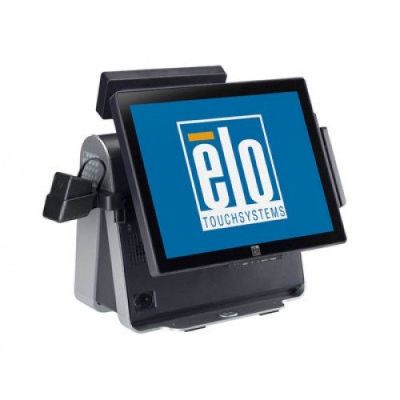

17D1 Rev C 17" Touchcomputer (Discontinued April 2013)
How to buy

Overview

The 17D Series 17" All-in-One Touchcomputers bring style, flexibility and functionality to point-of-sale (POS), retail and hospitality businesses. With a wide array of field-installable peripherals, spill-resistant sealing, and a range of input/output port connection options, the 17D1 and 17D2 are versatile and powerful. These touchcomputers are designed with the future in mind, allowing easy serviceability of the main components and excellent performance utilizing Intel Dual-Core 2.2 GHz or Intel Core Duo 3.0 GHZ processors. The 17D Series expands the Elo TouchSystems high profile family of reliable, easy-to-integrate multi-function touch solutions.

Other features
  • "Designed for touch" from the ground-up; stable stand and tiltable display - Elo quality and reliability
  • On-screen display controls located on the bottom rather than the front, plus lockout function for public use - Minimizes accidental or inadvertent changes to the display's controls
  • Security lock receptacle - Provides fast, effective, and convenient security
  • Supports 2nd internal SATA hard disk drive - Enables extra storage capacity or disk mirroring (RAID) for data protection
  • Worldwide agency approvals - Meets local agency approvals, as required in many countries
  • Field-installable peripherals - Minimizes downtime with peripherals that are easily installed in the field rather than factory
  • Field-replaceable motherboard, hard drive and power supply - Easy serviceability minimizes downtime
  • Excellent cable management and cables hidden from view - Eliminate accidental disconnection and give a clean, professional look
  • 5 serial (2 of which are powered, 5V default/12V switchable), 7 USB 2.0, Ethernet 100/10 Base-T, Cash drawer port, 2 PS/2, Audio (1 line-in, 1 line-out, 1 mic-in), 24V printer power connector, parallel port - Accessible POS/POI-focused input/output ports make installation of peripherals easy

Specifications

  • Technical

    Part Number(s)

    AccuTouch (Antiglare, Worldwide) - E962814
    AccuTouch (Antiglare, Worldwide) - E991776
    AccuTouch (Antiglare, Worldwide) - E932509
    AccuTouch (Antiglare, Worldwide) - E853771
    AccuTouch (Antiglare, Japan) - E209213
    IntelliTouch (Antiglare, Worldwide) - E932202
    IntelliTouch (Antiglare, Worldwide) - E877994
    IntelliTouch (Antiglare, Worldwide) - E360682
    IntelliTouch (Antiglare, Worldwide) - E057329
    IntelliTouch (Antiglare, Japan) - E765555

    Enclosure Color

    Dark Gray

    Touch Technology & Capacity

    5-Wire Resistive (AccuTouch®) - Single-Touch
    SAW (IntelliTouch® Surface Acoustic Wave) - Single Touch

    Processor

    Intel Dual-Core Celeron E1500 2.2GHz 512K L2 Cache 800MHz FSB LGA775 Pkg

    BIOS

    AMI

    Memory (RAM)

    1GB DDR2 DIMM on 1 of 2 slots (Expandable to 4GB max on 2 slots)

    Hard Disk Drive

    160GB 2.5” 160GB SATA HDD
    Optional 2nd 160GB hard drive available

    Chipset

    Intel G31/ICH7

    Diagonal Size

    17'' diagonal, Active matrix TFT LCD (LED)

    Control Buttons

    Controls (bottom): menu, up, down, select, power
    Settings: brightness, contrast, phase, auto adjust, H-position, V-position, clock, sharpness, RGB, OSD H-position, OSD V-position, OSD time, OSD language, recall
    Languages: English, French, Italian, German, Spanish, Japanese, Traditional Chinese, Simplified Chinese
    Lockouts: user controls

    Aspect Ratio

    5:4

    Active Area

    13.3" x 10.6" / 338 mm x 270 mm

    Resolution

    1280 x 1024 @ 60Hz

    Number of Colors

    16.7 million

    Brightness (typical)

    LCD panel: 300 nits
    AccuTouch: 240 nits
    IntelliTouch: 270 nits

    Response Time-total (typical)

    5 msec

    Contrast Ratio

    1000:1

    Viewing Angle

    Horizontal: ±80° or 160° total / Vertical: ±80° or 160° total

    I/O Ports

    2 x PS/2 (1 Keyboard and 1 Mouse)

    USB Ports

    7 x USB2.0 ports
    Additional internal ports available for optional Elo peripherals.

    Serial Ports

    1 x RS-232 (standard)
    2 x USB-to-Serial RS-232 (standard)
    2 x USB-to-Serial RS-232 powered (5V default/12V; selectable via jumper)

    Ethernet Port

    1 x LAN RJ45 (Gigabit)

    Wireless

    Optional USB wireless kit available (802.11b/g/n)

    Cash Drawer Port

    1 x cash drawer (12V/24V default; selectable via jumper)
    Compatible with the following APG models:
    -MultiPRO 320 with CD-005A cable
    -MultiPRO 420 with CD-039A cable

    Audio Ports

    1 x 3.5mm line-in
    1 x 3.5mm line-out
    1 x 3.5mm mic-in

    Speakers

    Two 2W internal speakers

    OS

    No OS
    Windows Embedded for Point of Service (WEPOS)
    Windows XP Professional Service Pack 3 (32-bit only)
    Windows POSReady 2009
    Windows 7 Professional (32-bit only)

    Languages

    Windows XP – 24 Language groups; Windows 7 – 35 Language groups
    WEPOS - 32 language groups
    Windows POSReady 2009 – 32 Language groups

    Power Supply

    Internal PSU (270W)

    Input Voltage

    AC: 100-240 VAC 47-63 Hz

    Power Consumption (Typical)

    Without Peripherals: 130W
    With All Peripherals Connected: 213W

    Max Touchcomputer Dimensions With Stand

    15.0" x 8.4" x 11.3" / 381 mm x 212 mm x 288 mm

    Shipping Box Dimensions

    17.72" x 13.39" x 18.7" / 450 mm x 475 mm x 340 mm

    Weight (Unpackaged)

    26 lbs / 11.79 kg

    Weight (Packaged)

    30.7 lbs / 13.93 kg

    Operating Temperature

    0°C to 35°C / 32°F to 95°F

    Storage Temperature

    -20°C to 60°C / -4°F to 140°F

    Humidity

    Operating: 20% - 80%; Storage: 5% - 95%; noncondensing

    Regulatory approvals and declarations

    UL, cUL, CB, CE, BSMI, NOM, AR S-Mark, CCC, EK, FCC, KCC, GOST-R, RCM, C-Tick, VCCI

    MTBF

    50,000 hours demonstrated

    Mounting Options

    Ability to secure base to tabletop or desktop
    Tiltable stand

    Warranty

    3-year

    Sealability

    Touchscreen sealed to bezel (IntelliTouch)
    Touchscreen sealed to sub-bezel (AccuTouch, APR)
    Touchscreen sealed to LCD (all)

    Power Cables

    North American and European power cables included

    Other Features

    Serviceable internal components
    Threaded holes on bottom of base for mounting
    Kensington security lock

    Optional IntelliTouch Stylus Pen

    D82064-000, available at additional cost.

    Optional Accessories/Peripherals

    Magnetic Stripe Reader (Dark Grey) - Elo P/N: E145919
    Rear-facing Customer Display (2x20 VFD) (Dark Grey) - Elo P/N: E632206
    Biometric Fingerprint Reader (Dark Grey) - Elo P/N: E373639
    Single-line Barcode Scanner (Dark Grey) - Elo P/N: E946856
    Omni-directional Barcode Scanner (Dark Grey) - Elo P/N: E449881
    USB Wireless Kit (B/G/N) (Black) - Elo P/N: E249774
    Rear-Facing LCD Monitor Bracket Kit - Elo P/N: E835074
    Second 160GB Hard Drive - Elo P/N: E597623
    64GB SSD (Solid-State Drive) Option - Elo P/N: E536242
    2nd HDD/SSD Mounting Kit (no drive) - Elo P/N: E349653
    1GB Low-Profile DDR2 Memory DIMM, 800MHz - Elo P/N: E309480
    2GB Low-Profile DDR2 Memory DIMM, 800MHz - Elo P/N: E355477
    Printer Power Cable - Elo P/N: E337867
    24V Powered USB Cable Adapter - Elo P/N: E814900
