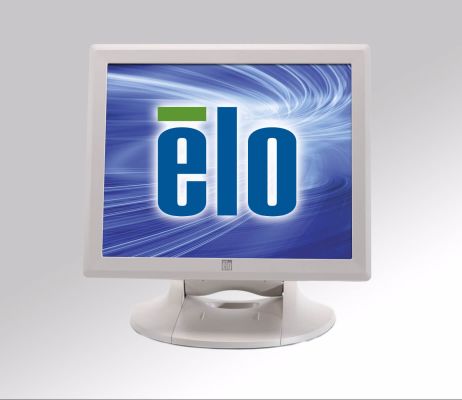

1729L Touchscreen Monitor (Discontinued December 2013)
How to buy

Overview

The Elo 1729L 17" LCD integrated multifunction touchmonitor is an attractive solution for a variety of applications. Its optional peripherals can easily be integrated into the 1729L's compact design. A choice of up to three of the optional peripherals can be installed including: the magnetic stripe reader, vacuum fluorescent, rear-facing LED customer display, biometric fingerprint recognition device, and speaker bar with or without a built in single or omni-directional barcode scanner. Its 1280 x 1024 resolution with a 5:4 ratio displays clear, precise graphics, and a contrast ratio of 800:1, together with a typical LCD panel brightness of 300 nits, provides bright, high contrast for improved readability.

Other features.
  • Seamless, integrated design
  • Available with AccuTouch Five-Wire Resistive Technology
  • Choice of desktop, wall or VESA mount
  • "Designed for touch" with stable tilt stand, adjustable and removable for VESA mounting; also mounting holes in stand for secure desktop use
  • Professional cable management hides cables from view
  • Touchscreen sealed to resist dirt, dust, and splashes
  • Controls on the side plus lockout function for public use
  • An internal USB hub for minimal external connections
  • Multi-lingual on-screen display (OSD)
  • Optional ergonomic 3 stripe MSR available in two versions: USB with keyboard emulation; and USB with human interface device (HID)
  • Security lock receptacle
  • Long-lasting product cycle – enclosure controlled by Elo specifications
  • Choice of gray or beige finish
  • Worldwide agency approvals
  • Three year warranty

Specifications

  • Technical

    Part Number(s)

    CarrollTouch (Americas, Asia/Pacific) - E555423
    IntelliTouch (Americas, Asia/Pacific) - E287671
    IntelliTouch (Americas, Asia/Pacific) - E352937
    AccuTouch (EMEA) - E274975
    IntelliTouch (EMEA) - E629992
    IntelliTouch (EMEA) - E461870

    Enclosure Color

    Dark Gray or Beige

    Touch Technology & Capacity

    5-Wire Resistive (AccuTouch®) - Single-Touch
    SAW (IntelliTouch® Surface Acoustic Wave) - Single Touch
    CarrollTouch Infrared Technology

    Diagonal Size

    17'' diagonal, Active matrix TFT LCD (LED)

    Aspect Ratio

    5:4

    Active Area

    13.3" x 10.6" / 338 mm x 270 mm

    Resolution

    1280 x 1020

    Other Supported Resolutions

    1280 x 1024 at 60,75Hz
    1280 x 960 at 60Hz
    1024 x 768 at 60,65,70, 75 Hz
    1152 x 864 at 75 Hz
    720 x 400 at 70 Hz
    832 x 624 at 75 Hz (Mac)
    800 x 600 at 56, 60, 72, 75Hz
    640 x 350 at 70Hz
    640 x 480 at 60, 72, 75Hz
    640 x 480 at 66 Hz

    Viewing Angle

    Horizontal: ±80° or 160° total / Vertical: ±80° or 160° total

    Number of Colors

    16.7 million

    Brightness (typical)

    LCD panel: 250 nits
    AccuTouch: 200 nits

    Response Time-total (typical)

    7.2 msec

    Contrast Ratio

    1000:1

    Touch Interface

    USB: E261247, E759926, E763885

    On Screen Display

    Controls (side): menu, up, down, select, power
    Settings: contrast, brightness, V-position, H-position, recall default, color temperature, volume, sharpness, phase, clock, OSD position, auto adjust, information, OSD timeout, input video select
    Languages: English, French, German, Spanish, Japanese
    Lockouts: power, user controls

    Speakers

    Two watt/channel speakers located in display head

    Input Video Format

    Analog VGA, DVI video (EMEA CarrollTouch models without DVI)

    Input Video Signal Connector

    Mini D-Sub 15-Pin VGA type, DVI-D connector

    Power Consumption (Typical)

    Monitor: 50 W
    VFD customer display: 7.0 W
    USB fingerprint reader: 0.95 W
    USB magnetic stripe reader: 0.15 W
    USB hub loaded: 7.0 W
    Speaker bar with single line barcode scanner: 10.75 W
    Speaker bar with omni-directional barcode scanner: 11.53 W
    Speaker bar: 10.0 W

    Power Supply

    Internal AC, Optional external DC (power brick)

    Input Voltage

    AC: 100-240V, 50/60 Hz; DC: 12V ± 0.75V

    Input Connector

    AC: IEC 60320 C6; DC: Coaxial power jack (2 mm pin diameter, 6.4 mm barrel diameter, 8.8 mm barrel length)

    Input Frequency

    Horizontal: 56.7-81.1 kHz / Vertical: 55-76 Hz

    Monitor Dimensions (with Stand)

    15.4" x 15.0" x 9.4" / 391mm x 381mm x 239mm

    Shipping Box Dimensions

    Touch only or touch with MSR: 20.09" x 10.04" x 17.91" / 510 mm x 255 mm x 455 mm
    Touch with two+ peripherals: 21.65" x 10.04" x 20.47" / 550 mm x 255 mm x 520 mm

    Weight (Unpackaged)

    19.3 lbs / 8.8 kg

    Weight (Packaged)

    24.7 lbs / 11.2 kg

    Operating Temperature

    0°C to 50°C / 32°F to 122°F

    Storage Temperature

    -20°C to 60°C / -4°F to 140°F

    Humidity

    Operating: 20-80%; Storage: 5-95%; noncondesing

    Sealability

    Touchscreen sealed to bezel
    Touchscreen sealed to LCD

    MTBF

    50,000 hours demonstrated

    Stand Options

    Tilt, removeable, adjust height

    Mounting Options

    100mm VESA mount

    Other Features

    Field upgradeable peripherals
    VESA DPMS
    VESA DDC Plug and Play
    Security lock receptacle

    Warranty

    3-year

    Regulatory approvals and declarations

    UL, cUL, FCC-B, TÜV-T, CE, VCCI, C-Tick, MPRII, S-Mark

    AC Power Cable

    All appropriate cables are included and are detachable. EMEA model include EU and UK power cables.

    Optional IntelliTouch Stylus Pen

    Stylus pen with rubber tip, designed specifically for use with IntelliTouch SAW touch technology. Elo p/n: D82064-000, available at additional cost.

    Optional Acoustic Pulse Recognition (APR) Stylus Pen

    Stylus pen with metal tip, designed specifically for use with Acoustic Pulse Recognition (APR) technology. Elo p/n: E963860, available at additional cost.

    Optional Peripherals

    North America power adapter and cable kit - Elo P/N: E005277
    European & Korea power adapter and cable kit - Elo P/N: E571601
    UK power adapter and cable kit - Elo P/N: E180092
    China power adapter and cable kit - Elo P/N: E558862
    Taiwan power adapter and cable kit - Elo P/N: E818655
    Japan power adapter and cable kit - Elo P/N: E182546
    Argentina power adapter and cable kit - Elo P/N: E887099

    Optional Accessories/Peripherals

    Magnetic Stripe Reader (Dark Gray MSR) - Elo p/n: E246532
    Magnetic Stripe Reader (Beige MSR) - Elo p/n: E701607

    Optional Stand

    Dark gray: Elo p/n: E408061; Beige: Elo p/n: E239639; available at additional cost.
