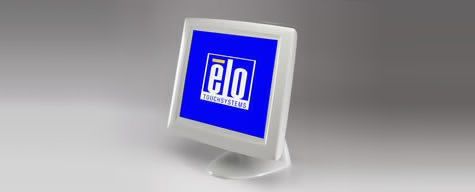

1727L 17" Touchscreen Monitor (Discontinued May 2003)

Specifications

• Technical

  ---

  Part Number(s)

  AccuTouch (Antiglare, Worldwide) - E993101
  IntelliTouch (Antiglare, Worldwide) - E157880

  Enclosure Color

  Beige

  Touch Technology & Capacity

  5-Wire Resistive (AccuTouch®) - Single-Touch
  SAW (IntelliTouch® Surface Acoustic Wave) - Single Touch

  Diagonal Size

  17'' diagonal, Active matrix TFT LCD (LED)

  Aspect Ratio

  4:3

  Active Area

  13.3" x 10.6" / 338mm x 270mm

  Resolution

  1280 x 1024

  Other Supported Resolutions

  1280 x 1024 at 60 or 75 Hz
  1280 x 960 at 60 Hz
  1152 x 864 at 75 Hz
  1024 x 768 at 60, 65 Hz (Sun), 70 or 75 Hz
  832 x 624 at 75 Hz (Mac)
  800 x 600 at 56, 60, 72 or 75 Hz
  720 x 400 at 70 Hz
  640 x 480 at 60, 66 Hz (Mac), 72 or 75 Hz

  Viewing Angle

  Horizontal: ±80° or 160° total / Vertical: 55°/80° or 135° total

  Number of Colors

  16.7 million (24 bit)

  Brightness (typical)

  LCD panel: 250 nits
  AccuTouch: 200 nits
  IntelliTouch: 230 nits

  Response Time-total (typical)

  25 msec

  Contrast Ratio

  400:1

  Video Bandwidth

  135 Mhz

  Input Video Format

  Analog (no proprietary video card needed) or Digital Video Input (DVI-D)

  Input Video Signal Connector

  Mini D-Sub 15-Pin or Digital 24-pin Input

  Touch Interface

  Dual serial/USB: E993101, E157880

  Power Supply

  External power supply

  Input Voltage

  100-240 VAC; 50-60 Hz; Monitor input power, 19V @ 2.65A

  Input Frequency

  Horizontal: 31.5-80 kHz / Vertical: 56-75 Hz

  Sync Types

  Separate horizontal and vertical sync, composite sync and sync-on-green

  Power Consumption (Typical)

  50 W max.

  Speakers

  Two watt/channel speakers located in display head

  On Screen Display

  OSD in English, German, Spanish, Japanese, French
  OSD lockouts for power and user controls
  OSD extras include volume, treble, bass, balance

  Monitor Dimensions (with Stand)

  17.1" x 16.9" x 9.62" / 434mm x 430mm x 244mm

  Weight (Unpackaged)

  21.6 lbs / 9.82 kg

  Weight (Packaged)

  30.6 lbs / 13.9 kg

  Operating Temperature

  0°C to 40°C

  Storage Temperature

  -20°C to 60°C

  Humidity

  Operating: 20%-80%; Storage: 10%-90%; noncondensing

  Sealability

  Touchscreen sealed to bezel
  Touchscreen sealed to LCD

  Mounting Options

  100 mm or 75 mm M4 VESA mount
  100 mm M5 threaded holes on base bottom for table top security
  Removable base
  Reversible stand for wall mounting
  Stand rotates from -5° (from vertical) to 90° (horizontal)

  Backlight lamp life

  25,000 hours to half brightness

  Warranty

  3-year

  Regulatory approvals and declarations

  UL, cUL, FCC, IC, CE, TÜV-GS, VCCI, C-Tick

  Power Cables

  A North American power cable and a European power cable are included. For touchmonitors being shipped to the United Kingdom, add a UK power cable at no cost by specifying
  Elo p/n: 276875-000.
