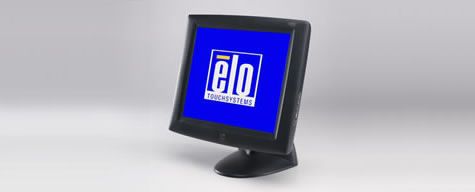

1725L 17" Touchscreen Monitor (Discontinued May 2006)
Overview
The 1725L was designed from a blank sheet of paper to address the key needs of touch applications, resulting in a product that can truly be called "designed for touch." It has a unique combination of flexibility, reliability, performance, ease-of-use and installation, all with a distinctive visual appeal.
Other features.
- High quality panel with 140°x140° viewing angle
- Analog and digital (DVI-D) video inputs
- "Designed for touch" features such as a stable tilt base (-5° from vertical to 90°/horizontal)
- Cables hidden from user's view
- Mounting holes on base bottom for tabletop security
- Base removable or reversible for wall mounting, plus VESA mounting option
- Built-in speakers located in display head
- Available with AccuTouch Five-Wire Resistive Technology, IntelliTouch Surface Wave Technology or Surface Capacitive Technology and dual serial/USB interface
- Sealed touchscreen
- Controls on the side rather than the front, plus lockout function for public use
- Multilingual on-screen display (OSD) with extras including speaker volume, treble, bass, and balance
- Long-lasting product cycle
- Worldwide agency approvals
Specifications
-
Technical
Part Number(s)
IntelliTouch (Antiglare, Worldwide) - 442072-001
Enclosure Color
Dark Gray
Touch Technology & Capacity
SAW (IntelliTouch® Surface Acoustic Wave) - Single Touch
Diagonal Size
17'' diagonal, Active matrix TFT LCD (LED)
Aspect Ratio
5:4
Active Area
13.3" x 10.6" / 338mm x 270mm
Resolution
1280 x 1024
Other Supported Resolutions
1280 x 1024 at 60 or 75 Hz
1280 x 960 at 60 Hz
1152 x 864 at 75 Hz
1024 x 768 at 60, 65 Hz (Sun), 70 or 75 Hz
832 x 624 at 75 Hz (Mac)
800 x 600 at 56, 60, 72 or 75 Hz
720 x 400 at 70 Hz
640 x 480 at 60, 66 Hz (Mac), 72 or 75 HzViewing Angle
Horizontal: ±70° or 140° total / Vertical: 60/67° or 127° total
Number of Colors
16.2 million with dithering (6 bit)
Brightness (typical)
LCD panel: 260 nits
IntelliTouch: 239 nitsResponse Time-total (typical)
25 msec
Contrast Ratio
450:1
Input Video Format
Analog (no proprietary video card needed); Digital Video Input (DVI-D)
Input Video Signal Connector
Mini D-Sub 15-Pin; DVI-D
Power Supply
External power supply, 100-240 VAC, 50-60 Hz
Input Voltage
11.4-19.95 VDC; Current (12 VDC): 4A max; Current (19 VDC): 2.65A max.
Input Frequency
Horizontal: 31.5-80 kHz / Vertical: 56.3-75 Hz
Sync Types
Separate horizontal and vertical sync, composite sync and sync-on-green
Power Consumption (Typical)
50 W max.
Speakers
Two watt/channel speakers located in display head
On Screen Display
OSD lockouts for power and user controls
OSD extras include volume, treble, bass, balanceUser Controls
Side: menu, up, down, select, power
OSD: contrast, brightness, H/V position, recall defaults, color temperature, volume, sharpness, phase, clock, OSD position, OSD time, auto adjust, nput select (analog or digital)
Languages: English, German, Spanish, Japanese, French
OSD disable/enable: power, volume, and/or OSD menuMonitor Dimensions (with Stand)
17.1" x 16.9" x 9.62" / 434mm x 430mm x 244mm
Weight (with stand)
15.08 lb / 6.84 kg
Weight (Unpackaged)
20.92 lbs / 9.49 kg
Weight (Packaged)
27.42 lbs / 12.44 kg
Operating Temperature
0°C to 40°C
Storage Temperature
-20°C to 60°C
Humidity
Operating: 20%-80%; Storage: 10%-90%; noncondensing
Mounting Options
100 mm or 75 mm M4 VESA mount
100 mm M5 threaded holes on base bottom for table top security
Removable base
Reversible stand for wall mounting
Stand rotates from -5° (from vertical) to 90° (horizontal)
Optional stability plateBacklight lamp life
Typical 40,000 hours to half brightness
Warranty
3-year
Regulatory approvals and declarations
UL, cUL, FCC, IC, CE, TÜV-GS, VCCI, C-Tick, MPR II
Power Cables
A North American power cable and a European power cable are included. For touchmonitors being shipped to the United Kingdom, add a UK power cable at no cost by specifying
Elo p/n: 276875-000.Optional Power Supply Brick
Elo p/n: E785134. Available at additional cost.
Touch/Video/Audio/Accessory Cables:
Detachable touch and video cables are included.
Stability Plate
Mounts to the pedestal of the monitor to increase stability. Elo p/n: D47582-000. Available at additional cost.
