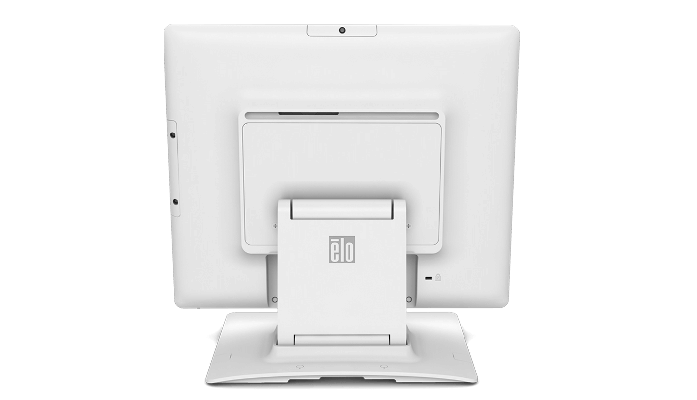

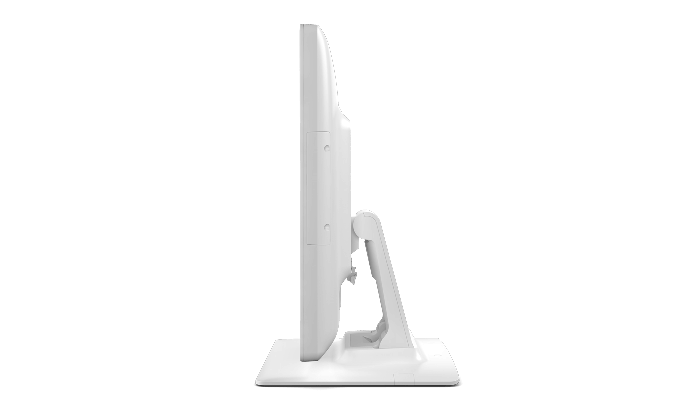

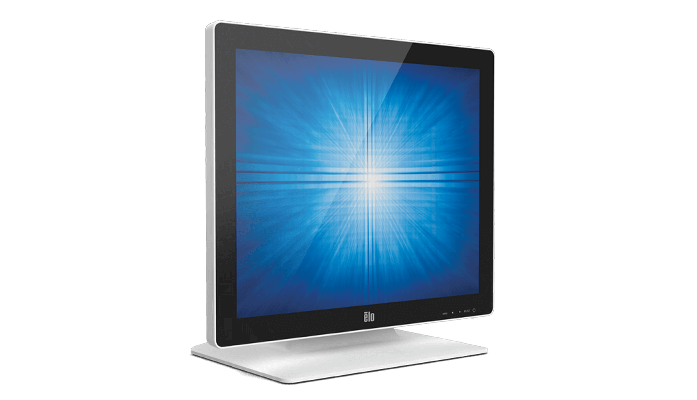

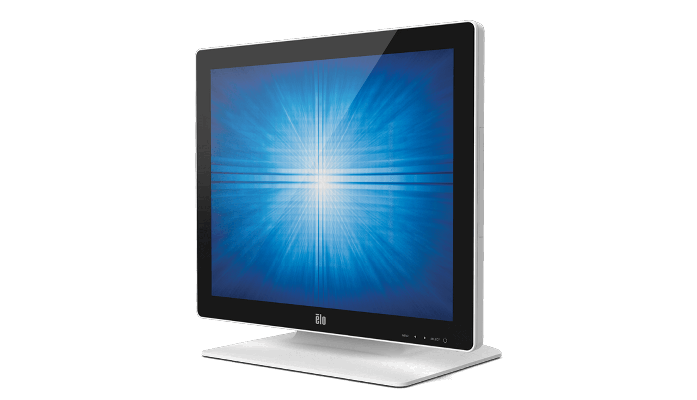

1723L 17" Touchscreen Monitor (Discontinued April 2017)
How to buy

Overview

The Elo 1723L 17-inch standard format touchscreen monitor meets the durability and aesthetic requirements for a variety of high traffic retail and hospitality interactive solutions. The sleek, edge-to-edge glass design of the 1723L brings a clean, modern feel to any environment. The zero-bezel monitor is available in both black or white with Elo’s industry-leading touch technologies, both providing a stable drift-free operation with outstanding image clarity, resolution and light transmission - for an accurate touch response and vivid images.

Integrated touch.

The 17-inch monitor offers a choice of two industry leading Elo touchscreen technologies. Both enable multi touch functionality, with a seamless zero-bezel display. IntelliTouch® surface acoustic wave (SAW) zero-bezel delivers the ultimate in optical quality for dry retail and hospitality applications. For a 10-touch tablet like experience, TouchPro™ PCAP offers a clean edge-to-edge glass design perfect for multi-user interaction with fast and extremely sensitive responses right out of the box.
Endless function.

The 1723L has been designed for touch from the ground up, with such features as a spill-resistant sealing, adjustable height stand with tilting functionality, VESA mounting option, connectivity incorporated within the monitor (reducing the number of power bricks), and communication cables and side controls with lockout capability.
Peripherals.

The touchscreen monitor offers optional retail accessories with easy installation including: a mag stripe reader (MSR), webcam, customer facing display and near field communication (NFC/RFID) adapter for mobile payments and increased compatibility with the latest point of sale applications. Optional bracket allows the use of the 0700L as a customer facing display.
Commercial grade.

The 17-inch touchscreen monitor delivers the quality and reliability Elo is known for and is backed by our three-year standard warranty. All our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF.
Other features.
  • Integrated cable management
  • Long-lasting product cycle
  • Dual position stand - single hinge with high/low settings and tilt functionality
  • Screen is resistant to dirt, dust, liquid
  • Desktop, wall or VESA mounting
  • Internal speakers
  • Three-year standard warranty

Specifications

  • Technical

    Part Number(s)

    IntelliTouch ZB Dual Touch White (Americas/EMEA) - E924166

    Enclosure Color

    White or Black

    Touch Technology & Capacity

    SAW ZB (IntelliTouch® Surface Acoustic Wave) - Dual Touch

    Diagonal Size

    17'' diagonal, Active matrix TFT LCD (LED)

    Aspect Ratio

    5:4

    Active Area

    13.3" x 10.64" / 337.92mm x 270.34mm

    Resolution

    1280 x 1024 at 75 Hz

    Other Supported Resolutions

    1280 x 1024 at 60,75 Hz
    1024 x 768 at 60,75 Hz
    800 x 600 at 60,75 Hz
    720 x 400 at 70 Hz
    640 x 480 at 60,75 Hz

    Viewing Angle

    Horizontal: ±85° or 170° total / Vertical: ±80° or 160° total

    Number of Colors

    16.7 million

    Brightness (typical)

    LCD panel: 250 nits
    IntelliTouch ZB: 225 nits

    Response Time-total (typical)

    5 msec

    Contrast Ratio

    1000:1

    On Screen Display

    Controls (side): Menu, Up, Down, Select

    Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, Volume, Mute, Recall Defaults

    Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese

    Lockouts: OSD, Power

    USB Ports

    Two external USB ports

    Speakers

    Two 2W internal speakers

    Input Video Format

    Analog VGA, DVI-D

    Input Video Signal Connector

    Mini D-Sub 15-Pin VGA type, DVI-D connector

    Power Consumption (Typical)

    Monitor + AC/DC adapter
    ON: 19.2W
    SLEEP: 1.22W
    OFF: 0.19W

    Power Supply

    AC-DC power adapter

    Input Voltage

    AC: 100-240 VAC, 50/60 Hz; DC: 12.0V ± 5%

    Input Connector

    DC: Coaxial power jack (2.1 mm outer pin diameter, 6.4 mm barrel diameter, 8.8 mm barrel length)

    Input Frequency

    Horizontal: 31 - 80 kHz / Vertical: 56 - 75 Hz

    Monitor Dimensions (with Stand)

    15.43" x 8.24" x 14.20" / 391.9mm x 209.4mm x 360.7mm

    Shipping Box Dimensions

    19.65" x 17.17" x 8.39" / 499mm x 436mm x 213mm

    Weight (Unpackaged)

    11.46 lbs / 5.2 Kg

    Weight (Packaged)

    18.7 lbs / 8.5 Kg

    Operating Temperature

    0°C to 40°C / 32°F to 104°F

    Storage Temperature

    -20°C to 60°C / -4°F to 140°F

    Humidity

    Operating: 20% to 80%; Storage: 10% to 90%

    Sealability

    Touchscreen sealed to bezel; Touchscreen sealed to LCD

    MTBF

    50,000 hours demonstrated

    Stand Options

    Tilt, remove

    Mounting Options

    75mm VESA mount

    Other Features

    2 stage DPMS
    VESA DDC Plug and Play
    Security lock receptacle
    Internal speakers

    Warranty

    3-year

    Extended Service Options

    1 Year Extended Warranty - Elo P/N: 758588-000
    2 Year Extended Warranty - Elo P/N: 930057-000
    Elo Advance Unit Replacement (AUR) - Elo P/N: E67295-000

    Regulatory approvals and declarations

    UL, cUL, FCC, IC, CCC, CE, VCCI, KCC, e-Standby, CoC, BSMI Mark, CB, RoHS, China RoHS, RCM, WEEE, IMERC

    What's in the Box

    QIG, Japan Class-B TM info sheet, User Manual CD, 50W Power Brick, power cable, IEC 60320-C13 to NA/EU plug, DVI-D cable, VGA cable (DE-15 male to DE-15 male), USB cable (Type A plug to Type B plug), Audio cable, Stand base assembly, Filler Plate

    Replacement DC Power Supply

    The monitor may be powered with DC voltage. A optional 12V DC power brick is available at additional cost.

    United States: E005277
    Europe: E571601
    United Kingdom: E180092
    China: E558862
    Taiwan: E818655
    Japan: E182546
    Argentina: E887099

    AC Power Cable

    Power cables are included. Replacement Cable Kit: E378229

    North America: E378229
    China: E030476
    Taiwan: E637694
    Japan: E849156 (3-pin to 2-pin adapter: E351985)

    Optional PCAP Stylus Pen

    E066148

    Touch/Video/Audio/Accessory Cables:

    All appropriate cables are included and are detachable.

    Optional Peripherals

    Magnetic Stripe Reader (Black MSR) – Elo P/N: E628912

    Stands, Mounts & Kits

    1723L VESA Mount Plate (White) - Elo p/n: E000451
    1723L VESA Mount Plate (Black) - Elo p/n: E000450

    Optional Stand

    Desktop Replacement Stands
    Black: P/N - E896711
    White: P/N - E574298
