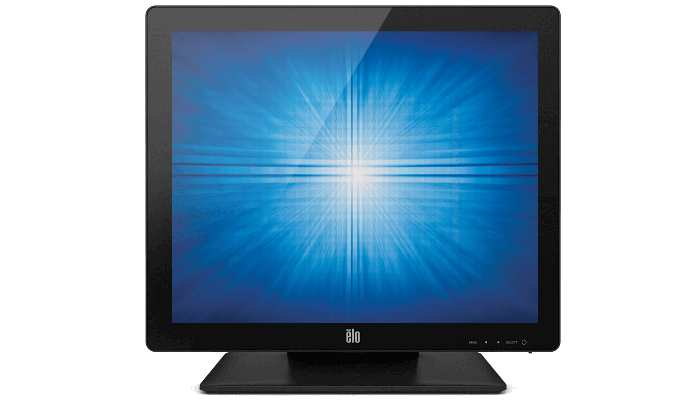

1717L 17" Touchscreen Monitor (Discontinued February 2014)
Overview
The 1717L zero-bezel touchmonitor is built to withstand the rigors of continuous public use with a rugged, “built for touch” industrial design. It delivers style and performance with a wide variety of features for a higher level of functionality. It is well suited for public venues where point-of-sale (POS), point-of-information (POI), point-of-service, shelf-level and countertop interactive digital signage, loyalty systems, kiosk information systems are found.
The optional 3-track magnetic stripe reader (MSR), programmable to either HID or Keyboard Emulation, is easily installed by the user, providing an elegant, integrated solution and eliminating the need for external brackets or attachments. The 1717L features two leading zero-bezel touch touchscreen technologies for a smooth, easy-clean surface: AccuTouch five-wire resistive technology, the most widely used for retail applications and proven to survive splashing liquids, food and grease; IntelliTouch ZB pure-glass surface wave technology, for the ultimate in optical quality for dry retail and hospitality applications.
The 1717L Touchmonitor is environmentally friendly, lightweight and uses less power with state-of-the-art LED backlights in the display panels.
Other features.
- High performance, flexible and reliable
- Up to 1280 x 1024 resolution at 60 Hz, 75 Hz
- Available with AccuTouch 5-wire zero-bezel resistive technology (activated with fingernails, gloves, credit cards, or any stylus), IntelliTouch ZB Surface Wave Technology for superior image quality (activated with finger or glove)
- Optional ergonomic 3 stripe MSR available in two versions: USB with keyboard emulation; USB with human interface device (HID) class specification 1.1 and a choice of optional customer diplays
- Sealed touchscreen
- USB interface
- Removable stand and VESA mounting option
- Mounting holes on stand bottom for tabletop security
- Controls on the side rather than the front, plus lockout function for public use
- Digital on-screen display (OSD)
- Worldwide agency approvals
Specifications
-
Technical
Part Number(s)
AccuTouch (Antiglare, Worldwide) - E433551
AccuTouch (Antiglare, Worldwide) - E650075
IntelliTouch ZB (Antiglare, Worldwide) - E928533
IntelliTouch ZB (Antiglare, Worldwide) - E854392Enclosure Color
White or Black
Touch Technology & Capacity
5-Wire Resistive (AccuTouch®) - Single-Touch
SAW ZB (IntelliTouch® Surface Acoustic Wave) - Single TouchDiagonal Size
17'' diagonal, Active matrix TFT LCD (LED)
Aspect Ratio
5:4
Active Area
13.3" x 10.6" / 338mm x 270mm
Resolution
1280 x 1024
Other Supported Resolutions
640x480 60Hz,75Hz
720x400 70Hz
800x600 56, 60Hz,75Hz
1024x768 60Hz,75Hz
1280x1024 60Hz,75HzViewing Angle
Horizontal: ±85° or 170° total / Vertical: ±80° or 160° total
Number of Colors
16.7 million
Brightness (typical)
LCD panel: 250 nits
IntelliTouch ZB: 225 nits
AccuTouch: 200 nitsResponse Time-total (typical)
30 msec
Contrast Ratio
800:1
Touch Interface
USB: E433551, E650075, E928533, E854392
On Screen Display
Digital OSD
User Controls
Controls: Menu, Up, Down, Select
Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, Recall Defaults
Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese
Lockouts: OSD, PowerInput Video Format
Analog VGA
Input Video Signal Connector
Mini D-Sub 15-Pin VGA type
Power Consumption (Typical)
AC: 21W
DC: Monitor only: 29W
Monitor + AC/DC Adapter: 36WPower Supply
External DC (power brick)
Input Voltage
DC: +12 VDC ±5%
Input Connector
DC: Coaxial power jack (2.1mm pin outer diameter, 6.4mm barrel inner diameter)
Input Frequency
Horizontal: 31.5-80 kHz / Vertical: 56-75 Hz
Monitor Dimensions (with Stand)
15.4" x 14.2" x 7.5" / 392mm x 360mm x 191mm
Shipping Box Dimensions
18.5" x 16.8" x 8.9" / 471 mm x 426 mm x 226 mm
Weight (Unpackaged)
12.1 lbs / 5.5 kg
Weight (Packaged)
16.5 lbs / 7.5 kg
Operating Temperature
0°C to 40°C / 32°F to 104°F
Storage Temperature
-20°C to 60°C / -4°F to 140°F
Humidity
Operating: 20%-80%; Storage: 10%-90%; noncondensing
Sealability
Touchscreen sealed to bezel
Touchscreen sealed to LCDMTBF
50,000 hours demonstrated
Mounting Options
75 mm VESA mount
Threaded-through mounting holes, under standOther Features
Security lock receptacle
Warranty
3-year
Regulatory approvals and declarations
Australia C-Tick, Canada cUL, IC, China CCC, Europe CE, Japan VCCI, Korea KCC, e-Standby, Mexico CoC, Taiwan BSMI Mark, United States UL, FCC, International CB
RoHS, China RoHS, WEEE, IMERCAC Power Cable
A North American and European power cables are included with the part numbers available in the regions other than EMEA. Uniked Kingdom AC power cables are included with the part numbers available for the EMEA region.
China: Elo p/n - E030476
Japan: Elo p/n - E849156
Japan 3-pin to 2-pin adapter: Elo p/n - E351985
United Kingdom: Elo p/n - E235317
Taiwan: Elo p/n - E637694Cable Kit for Replacement Cables
Elo p/n: E378229 (Gray); Elo p/n: E410150 (Beige)
Optional Power Supply Brick
The monitor may be powered with DC voltage. A replacement 12V DC power brick, Elo p/n: E005277, is available at additional cost.
Touch/Video/Audio/Accessory Cables:
Detachable touch and video cables are included.
Optional Peripherals
Magnetic Stripe Reader (Black MSR) – Elo P/N: E500356
Magnetic Stripe Reader (White MSR) – Elo P/N: E233227Stands, Mounts & Kits
1717L VESA Mount Plate (White) - Elo P/N: E000421
1717L VESA Mount Plate (Black) - Elo P/N: E000405
1717L Replacement Stand (White) - Elo P/N: E061177
1717L Replacement Stand (Black) - Elo P/N: E904304
