1715L 17" Touchscreen Monitor (Discontinued September 2017)
Overview

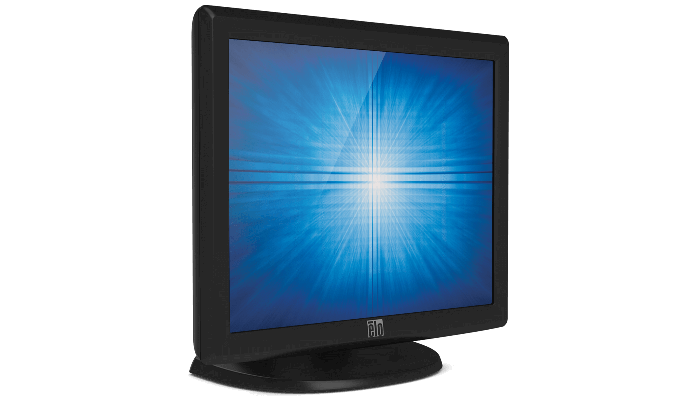

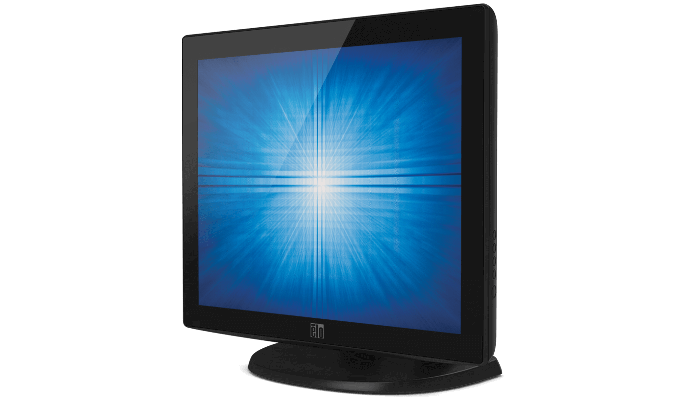

The Elo 1715L 17-inch standard format touchscreen monitor delivers professional-grade built-for-touch reliability in an affordable compact footprint. The space-saving touchscreen includes a stable base, side controls and lock-out capability for public use. Whether used as a desktop or a wall-mounted unit, the 1715L offers flexibility for mounting and three touch technology options.
MSR ready.The 1715L offers an optional three-track magnetic stripe reader (MSR), programmable to either HID or Keyboard Emulation (USB only), is easily installed by the user, providing an elegant, integrated solution and eliminating the need for external brackets or attachments. |
 |
 |
Integrated touch.The 17-inch touchscreen monitor features AccuTouch® five-wire resistive and IntelliTouch® surface acoustic wave (SAW) with an anti-glare display and Dual/Serial USB ready for any retail or hospitality environment. |
Flexible mounting.The Elo 1715L offers multiple mounting options to ensure installation flexibility including: wall- and pole-mount via standard VESA mount patterns as well as tabletop accommodations with the use of the desktop stand. |
 |
Other features.
- Affordability paired with Elo quality OR Consumer-grade pricing with Elo commercial-grade reliability

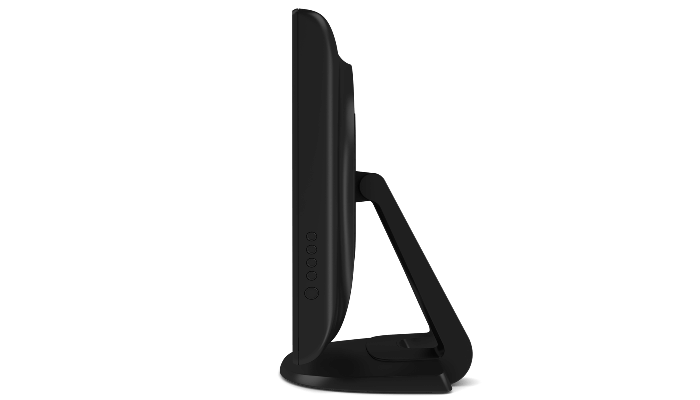

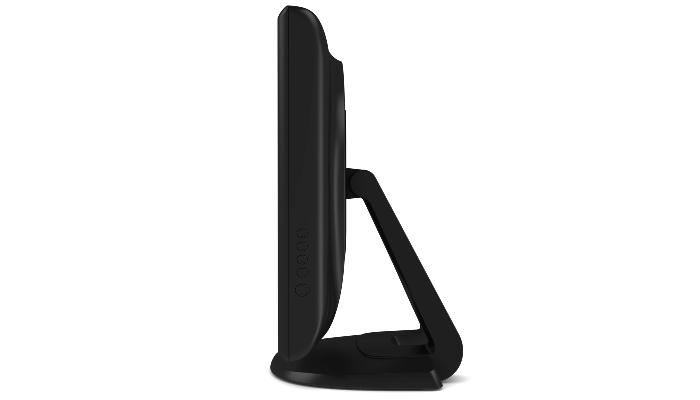

- Designed for touch features such as a stable tilt stand
- Long-lasting product cycle
- Sealed touchscreen against dirt, dust and liquids
- Dual serial/USB interface
- Removable stand and VESA mounting option
- Mounting holes on stand bottom for tabletop security
- Digital on-screen display (OSD)
- Worldwide agency approvals
- Three-year standard warranty
Specifications
-
Technical
Part Number(s)
IntelliTouch (Asia/Pacific) - E783252
AccuTouch (Asia/Pacific) - E162119Enclosure Color
Dark Gray
Touch Technology & Capacity
5-Wire Resistive (AccuTouch®) - Single-Touch
SAW (IntelliTouch® Surface Acoustic Wave) - Single TouchDiagonal Size
17'' diagonal, Active matrix TFT LCD (LED)
Aspect Ratio
5:4
Active Area
13.3" x 10.6" / 338mm x 270mm
Resolution
1280 x 1024
Other Supported Resolutions
1280 x 1024 60, 75 Hz
1280 x 960 60 Hz
1152 x 864 75 Hz
1024 x 768 60, 70, 75 Hz
1024 x 768 65 Hz (Sun)
832 x 624 75 Hz (Mac)
800 x 600 56, 60, 72, 75 Hz
720 x 400 70 Hz
720 x 350 70 Hz
640 x 480 60, 72, 75 Hz
640 x 480 66 Hz (Mac)Viewing Angle
Horizontal: ±85° or 170° total / Vertical: ±80° or 160° total
Number of Colors
16.7 million
Brightness (typical)
LCD panel: 250 nits
AccuTouch: 200 nits
IntelliTouch: 225 nits
PCAP: 225 nitsResponse Time-total (typical)
5 msec
Contrast Ratio
1000:1
Input Video Format
Analog VGA
Input Video Signal Connector
Mini D-Sub 15-Pin VGA type
Power Supply
Internal AC, Optional external DC (power brick)
Input Voltage
AC: 100-240 VAC, 50/60 Hz; DC: +12VDC ±5%
Input Connector
AC: IEC 60320 C6 / DC: Coaxial power jack (2 mm pin diameter, 6.4 mm barrel diameter, 8.8 mm barrel length)
Input Frequency
Horizontal: 31.5-80 kHz
Vertical: 56.3-75 HzPower Consumption (Typical)
AC: 21W
DC - Monitor only: 17W
Monitor + AC/DC Adapter: 21WOn Screen Display
Controls (side): menu, up, down, select, power
Settings: contrast, brightness, H/V position, RGB (color temp), clock, phase, recall
Languages: English, German, Spanish, Japanese, French
Lockouts: power, user controlsMonitor Dimensions (with Stand)
15.4" x 8.0" x 14.4" / 391mm x 203mm x 366mm
Shipping Box Dimensions
17.99" x 11.42" x 17.32" / 457mm x 290mm x 440mm
Weight (with stand)
15.2 lb / 6.9 kg
Shipping Weight (With stand)
21.2 lb / 9.6 kg
Operating Temperature
0°C to 40°C / 32°F to 104°F
Storage Temperature
-20°C to 60°C / -4°F to 140°F
Humidity
Operating: 20% to 80%; Storage: 10% to 90%
Sealability
Touchscreen sealed to bezel; Touchscreen sealed to LCD
MTBF
50,000 hours demonstrated
Stand Options
Tilt, remove
Mounting Options
100 mm VESA mount
Threaded-through mounting holes, under standOther Features
Security lock receptacle
Warranty
3-year
Extended Service Options
1 Year Extended Warranty - Elo P/N: 758588-000
2 Year Extended Warranty - Elo P/N: 930057-000
Elo Advance Unit Replacement (AUR) - Elo P/N: E67295-000Regulatory approvals and declarations
Worldwide including Asia: UL, cUL, FCC, CE, VCCI, IC, RCM, Argentina S-Mark
Asia: KC, CCC, BSMI, China RoHSWhat's in the Box
QIG, User Manual CD, VGA cable, Serial cable (attached if support combo), power cord, USB cable
Replacement DC Power Supply
The monitor may also be powered with DC voltage. An optional 12V DC power brick, Elo P/N: E757851, is available at additional cost.
AC Power Cable
A North American power cable is included with the part numbers available in the regions other than EMEA. European and UK AC power cables are included with the part numbers available for the EMEA region.
United States: E042259
Europe: E690013
United Kingdom: E235317Optional IntelliTouch Stylus Pen
Stylus pen with rubber tip, designed specifically for use with IntelliTouch or iTouch surface wave touch technology. Elo P/N: D82064-000, available at additional cost.
Touch/Video/Audio/Accessory Cables:
USB touch cable and VGA video cable are included. Cable Kits for replacement cables (Gray - Elo P/N: E378229) (Beige - Elo P/N: E410150)
Optional Peripherals
Magnetic Stripe Reader (Dark Gray MSR) – Elo P/N: E963462
Optional Stand
E191105
