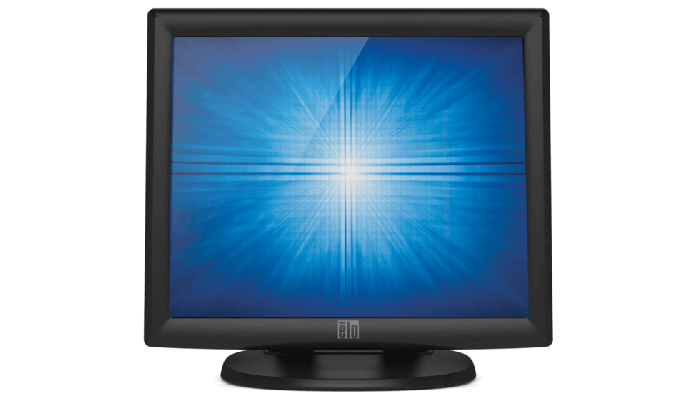

1715L 17" Touchscreen Monitor (Discontinued January 2010)
How to buy

Overview

The 1715L touchmonitor is designed, developed and built to provide the most cost-effective touch solutions for system integrators and VARs. It packs Elo quality and reliability into an integrated, affordable touchmonitor.

Other features.
  • Entry-level monitor with Elo quality
  • "Designed for touch" features such as a stable tilt stand
  • Long-lasting product cycle
  • Sealed touchscreen
  • Dual serial/USB interface
  • Removable stand and VESA mounting option
  • Mounting holes on stand bottom for tabletop security
  • Controls on the side rather than the front, plus lockout function for public use
  • Digital on-screen display (OSD)
  • Worldwide agency approvals

Specifications

  • Technical

    Part Number(s)

    AccuTouch (Antiglare, Americas, EMEA) - E537168
    Acoustic Pulse Recognition (Antiglare, Americas, EMEA) - E324654
    IntelliTouch (Antiglare, Americas, EMEA) - E292567
    AccuTouch (Antiglare, Asia/Pacific) - E279752
    Acoustic Pulse Recognition (Antiglare, Asia/Pacific) - E512399
    IntelliTouch (Antiglare, Asia/Pacific) - E892987

    Enclosure Color

    Dark Gray

    Touch Technology & Capacity

    5-Wire Resistive (AccuTouch®) - Single-Touch
    SAW (IntelliTouch® Surface Acoustic Wave) - Single Touch
    Acoustic Pulse Recognition - Single Touch

    Diagonal Size

    17'' diagonal, Active matrix TFT LCD (LED)

    Aspect Ratio

    5:4

    Active Area

    13.3" x 10.6" / 338mm x 270mm

    Resolution

    1280 x 1024 at 60 Hz

    Other Supported Resolutions

    1280 x 1024 at 60 or 75 Hz
    1280 x 960 at 60 Hz
    1152 x 864 at 75 Hz
    1024 x 768 at 60, 65 Hz (Sun), 70 or 75 Hz
    832 x 624 at 75 Hz (Mac)
    800 x 600 at 56, 60, 72 or 75 Hz
    720 x 400 at 70 Hz
    720 x 350 at 70 Hz
    640 x 480 at 60, 66 Hz (Mac), 72 or 75 Hz

    Viewing Angle

    Horizontal: ±80° or 160° total / Vertical: ±80° or 160° total

    Number of Colors

    16.2 million

    Brightness (typical)

    LCD panel: 280 nits
    AccuTouch: 230 nits
    Acoustic Pulse Recognition: 258 nits
    IntelliTouch: 258 nits

    Response Time-total (typical)

    25 msec

    Contrast Ratio

    800:1

    Touch Interface

    Dual serial/USB: E537168, E292567, E279752, E892987
    USB: E324654, E512399

    On Screen Display

    Controls (side): menu, up, down, select, power
    Settings: contrast, brightness, H/V position, RGB (color temp), clock, phase, recall
    Languages: English, German, Spanish, Japanese, French
    Lockouts: power, user controls

    Input Video Format

    Analog VGA

    Input Video Signal Connector

    Mini D-Sub 15-Pin VGA type

    Power Consumption (Typical)

    50 W

    Power Supply

    Internal AC, Optional external DC (power brick)

    Input Voltage

    AC: 100-240 VAC, 50/60 Hz; DC: +12 VDC ±5%

    Input Connector

    AC: IEC 60320 C6; DC: Coaxial power jack (2 mm pin diameter, 6.4 mm barrel diameter, 8.8 mm barrel length)

    Input Frequency

    Horizontal: 31.5-80 kHz / Vertical: 56.3-75 Hz

    Monitor Dimensions (with Stand)

    15.4" x 4.4" x 8.0" / 391mm x 366mm x 203mm

    Shipping Box Dimensions

    17.99" x 17.32" x 11.42" / 457mm x 440mm x 290mm

    Weight (Unpackaged)

    15.2 lbs / 6.9 kg

    Weight (Packaged)

    21.2 lbs / 9.6 kg

    Operating Temperature

    0°C to 40°C / 32°F to 104°F

    Storage Temperature

    -20°C to 60°C / -4°F to 140°F

    Humidity

    Operating: 20%-80%
    Storage: 10%-90%
    noncondensing

    Sealability

    Touchscreen sealed to bezel
    Touchscreen sealed to LCD

    MTBF

    50,000 hours demonstrated

    Stand Options

    Tilt, removable

    Mounting Options

    100 mm VESA mount
    Threaded-through mounting holes, under stand

    Other Features

    Security lock receptacle

    Warranty

    3-year

    Backlight lamp life

    Typical 40,000 hours to half brightness

    Regulatory approvals and declarations

    North America/Worldwide: UL, cUL, S, MPR II, FCC, CE, VCCI, IC, C-Tick
    Asia: UL, cUL, S, MPR II, FCC, CE, VCCI, IC, C-Tick, MIC, CCC, BSMI, China RoHS

    AC Power Cable

    A North American power cable is included with the part numbers available in the regions other than EMEA. European and UK AC power cables are included with the part numbers available for the EMEA region.AC power cables for power brick are also available at additional cost:

    United States: Elo p/n - E042259
    Europe: Elo p/n - E690013
    United Kingdom: Elo p/n - E235317

    Optional Power Supply Brick

    The monitor may also be powered with DC voltage. An optional 12V DC power brick, Elo p/n: E785134, is available at additional cost.

    Optional IntelliTouch Stylus Pen

    D82064-000, available at additional cost.

    Touch/Video/Audio/Accessory Cables:

    Detachable touch and video cables are included.

    Optional Peripherals

    Magnetic Stripe Reader (Dark Gray MSR) – Elo P/N: E963462
