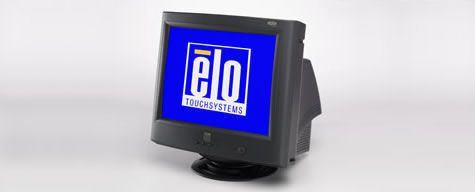

1587C 15" CRT Open Frame Touchmonitor (Discontinued November 2006)
Overview
Elo IntelliTouch® ZB touch-on-tube open-frame CRTs are the right choice for your public access or industrial application because they are easily integrated, reliable, sealed, and deliver the ultimate in picture quality, at an optimal price.
Open-frame CRTs reduce or eliminate the need for redesign by providing a much longer model life than plastic case CRTs. At the same time, they provide the reliability and ruggedness required for operation in an indoor public environment. Featuring the breakthrough Elo IntelliTouch ZB touch-on-tube technology and no overlay to break, your application will have the best picture quality and vandal resistance possible on a touch CRT. A final benefit is the watertight sealed bezel that stays in place when the cabinet front is opened.
Features
- Computer-grade digital design and video quality
- Unique IntelliTouch ZB touch-on-tube technology preserves 100% of the original brightness, picture quality, and color purity, with up to 80% less reflection than some overlays
- Super sensitive, drift free and precise touch with no parallax from an overlay
- Open-frame metal chassis keeps the CRT cooler, extending life
- Fixed outside dimensions-model life is longer than plastic-cased monitors (3D design files available)
- Bezel includes watertight 0.5 mm seal
- Rugged epoxy composite PCB material (CAM-1)
- Schematic and component-level repair manual available, plus entire electronics can be quickly replaced
- Built-in power, deflection and video test with diagnostic pin and LEDs
- Multilingual on-screen display (OSD) with long cable length for easy relocation
- Detachable video cable for easy cable harnessing
- Locking power connector
- Worldwide agency approvals
Specifications
-
Technical
Part Number(s)
IntelliTouch ZB (Antireflective, Worldwide) - A65341-000
Enclosure Color
Black
Touch Technology & Capacity
SAW ZB (IntelliTouch® Surface Acoustic Wave) - Single Touch
Diagonal Size
15'' diagonal, Active matrix TFT LCD (LED)
Monitor Thickness
14.8" / 375 mm
Aspect Ratio
4:3
Active Area
Horizontal: 10.6" / 270 mm
Vertical: 8.0" / 202 mmResolution
800 x 600 at 85 Hz
Other Supported Resolutions
800 x 600 at 85 Hz (VESA)
640 x 480 at 60 Hz (VGA)Number of Colors
16.7 million
Dot Pitch
0.28 mm
Contrast Ratio
300:1
Touch Interface
Serial
On Screen Display
Multilingual OSD
Video Bandwidth
65 MHz (~3 db)
Input Video Format
Analog
Input Video Signal Connector
Mini D-Sub 15-Pin (female)
Power Consumption (Typical)
60 W typical, 65 W max.
Power Supply
100-240 VAC, 50-60 Hz
Input Frequency
Horizontal: 30-55 kHz
Vertical: 50-160 HzMonitor Dimensions (without Stand)
13.8" x 12.3" x 14.8" / 351.2 mm x 313 mm x 375 mm
Weight (Unpackaged)
25.8 lb / 11.7 kg
Weight (Packaged)
31.3 lb / 14.2 kg
Operating Temperature
5°C to 55°C
Storage Temperature
-20°C to 65°C
Humidity
Operating: 10% to 80%
noncondensingMTBF
50,000 hours demonstrated
Other Features
Energy save mode (less than 2 watts)
VESA DPMS
VESA DDC 1/2 B Plug and PlayWarranty
Contact Elo
Regulatory approvals and declarations
FCC/ICES-03 Class B, UL/cUL recognized component, TÜV Bauart, CE, VCCI, C-Tick, MPR II, DHHS, Demko
Power Cables
A special locking power cable is required. Power cables which may be suitable are available separately: North American version (drawing MS500325 Rev B); European version (drawing MS500324 Rev B).
Touch/Video/Audio/Accessory Cables:
Detachable touch and video cables are included
Optional Accessories/Peripherals
Replacement Board Set: F01871-000
Open-Frame Adaptor Bracket: C51251-000. For base-mounting solutions
Square Kiosk Bezel: C57638-000
All available at additional cost.
