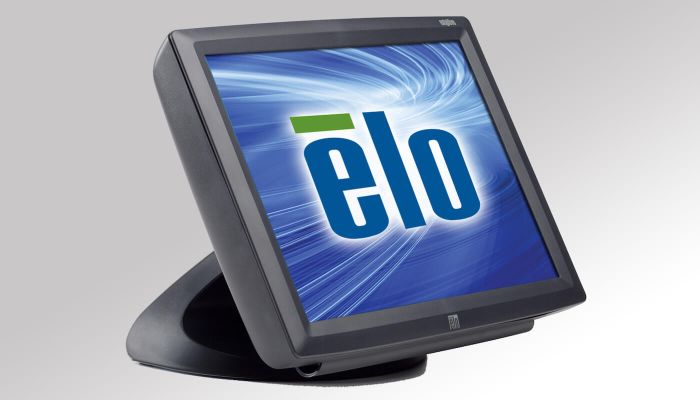

1529L 15" Touchscreen Monitor (Discontinued November 2011)
How to buy

Overview

The Elo 1529L touchmonitor expands the company's family of reliable, easily integrated, multifunction touch solutions and is now available with the new breakthrough Elo touch technology, Acoustic Pulse Recognition. The retail-rugged 1529L includes options for a magnetic stripe reader (MSR). The 1529L has been designed for touch from the ground up, with such features as spill-resistant sealing, a short or tall stable tilt stand that is removable or reversible for wall mounting, connectivity incorporated within the monitor, and a choice of Elo touch technology as well as color.

Other features.
  • Economical and reliable
  • Up to 1024 x 768 resolution at 75 Hz
  • Available with AccuTouch Five-Wire Resistive Technology (activated with fingernails, gloves, credit cards, or any stylus), IntelliTouch Surface Wave Technology for superior image quality (activated with finger or glove), or Acoustic Pulse Recognition Technology
  • Optional ergonomic 3 stripe MSR available in two versions: USB with keyboard emulation; and USB with human interface device (HID) class specification 1.1
  • Sealed touchscreen
  • Dual serial/USB interface
  • Removable stand and VESA mounting option
  • Mounting holes on stand bottom for tabletop security
  • Controls on the side rather than the front, plus lockout function for public use
  • Digital on-screen display (OSD)
  • Internal power supply
  • Worldwide agency approvals

Specifications

  • Technical

    Part Number(s)

    AccuTouch - E582772
    AccuTouch - E785333
    AccuTouch - E619005
    AccuTouch - E587776
    AccuTouch - E564135
    AccuTouch - E659634
    AccuTouch - E580588
    Acoustic Pulse - E700641
    Acoustic Pulse - E700641
    Acoustic Pulse - E680845
    Acoustic Pulse - E353946
    CarrollTouch - E392726
    IntelliTouch - E101984
    IntelliTouch - E641269
    IntelliTouch - E926109
    IntelliTouch - E229149
    IntelliTouch - E411937
    IntelliTouch - E273617
    IntelliTouch - E733714
    Surface capacitive - E633113

    Enclosure Color

    Dark Gray or Beige

    Touch Technology & Capacity

    5-Wire Resistive (AccuTouch®) - Single-Touch
    SAW (IntelliTouch® Surface Acoustic Wave) - Single Touch
    Acoustic Pulse Recognition - Single Touch
    Surface Capacitive (SCAP) - Single Touch
    CarrollTouch Infrared Technology

    Diagonal Size

    15'' diagonal, Active matrix TFT LCD (LED)

    Aspect Ratio

    4:3

    Active Area

    12.0" x 9.0" / 304mm x 228mm

    Resolution

    1024 x 768 at 60 Hz

    Other Supported Resolutions

    1024 x 768 at 60, 65, 70 or 75 Hz
    832 x 624 at 75 Hz
    800 x 600 at 56, 60, 72 or 75 Hz
    720 x 400 at 70 Hz
    720 x 350 at 70 Hz
    640 x 480 at 60, 66 Hz (Mac), 72 or 75 Hz

    Viewing Angle

    Horizontal: ±70° or 140° total / Vertical: ±60° or 120° total

    Number of Colors

    16.2 million

    Brightness (typical)

    LCD panel: 350 nits
    AccuTouch: 280 nits
    Acoustic Pulse Recognition: 322 nits
    CarrollTouch: 322 nits
    IntelliTouch: 322 nits
    Surface capacitive: 298 nits

    Response Time-total (typical)

    12 msec

    Contrast Ratio

    400:1

    Touch Interface

    Serial/USB: E582772, E785333, E619005, E587776, E392726, E101984, E641269, E926109, E229149, E633113
    USB: E700641, E564135, E659634, E580588, E411937, E273617, E733714, E700641, E680845, E353946

    On Screen Display

    Controls (side): menu, up, down, select, power
    Settings: contrast, brightness, V-position, H-position, RGB, volume, YUV, phase, clock, OSD H-position, OSD V-position, OSD time, auto adjust, input select
    Languages: English, French, German, Spanish, Japanese
    Lockouts: power, user controls

    Speakers

    Two watt/channel speakers located in display head

    Input Video Format

    Analog VGA, DVI-D

    Input Video Signal Connector

    Mini D-Sub 15-Pin VGA type, DVI-D connector

    Power Consumption (Typical)

    Monitor: 20 W
    USB magnetic stripe reader: 0.5 W
    2 USB external ports power when loaded: 5 W
    Total with all possible accessories: 31 W

    Power Supply

    Internal AC, Optional external DC (power brick)

    Input Voltage

    AC: 90-265 VAC, 50/60 Hz; DC: 12.0V ± 0.75V

    Input Connector

    AC: IEC 60320 C6; DC: Coaxial power jack (2 mm pin diameter, 6.4 mm barrel diameter, 8.8 mm barrel length)

    Input Frequency

    Horizontal: 31-60 kHz / Vertical: 56-75 Hz

    Monitor Dimensions (with Stand)

    14.0" x 10.4" x 11.3" / 355mm x 265mm x 286mm

    Shipping Box Dimensions

    Tall stand: 21.65" x 11.02" x 19.69" / 550mm x 280mm x 500mm
    Short stand with scanner: 21.65" x 16.73" x 13.58" / 550mm x 425mm x 345mm
    Short stand: 19.09" x 16.73" x 13.00" / 485mm x 425mm x 330mm

    Weight (with stand)

    Short stand: 14.4 lbs / 6.6 kg

    Weight (without stand)

    10.6 lbs / 4.8 kg

    Shipping Weight (With stand)

    Short stand: 21.2 lbs / 9.6 kg

    Operating Temperature

    0°C to 40°C / 32°F to 104°F

    Storage Temperature

    -20°C to 60°C / -4°F to 140°F

    Humidity

    Operating: 20-80%
    Storage: 5-95%
    noncondensing

    Sealability

    Touchscreen sealed to bezel
    Touchscreen sealed to LCD

    MTBF

    50,000 hours demonstrated

    Stand Options

    Tilt, removable, reverse (wall mount), short or tall stand

    Mounting Options

    75 mm VESA mount

    Other Features

    Energy save mode (less than 2 watts)
    2 stage DPMS
    VESA DDC Plug and Play
    Security lock receptacle
    Two external USB ports

    Warranty

    3-year

    Regulatory approvals and declarations

    UL, cUL (*recognized component), FCC-A, Semko, CE, VCCI, C-Tick

    AC Power Cable

    North American and European AC power cables are included. For touchmonitors being shipped to the United Kingdom, add a UK AC power cable at no cost by specifying Elo p/n: E540272.

    AC power cables for power brick are also available at additional cost:
    United States: Elo p/n - E042259
    Europe: Elo p/n - E690013
    United Kingdom: Elo p/n - E235317

    Optional Power Supply Brick

    The monitor may also be powered with DC voltage. An optional 12V DC power brick, Elo p/n - E137360, is available at additional cost.

    Optional IntelliTouch Stylus Pen

    Stylus pen with rubber tip, designed specifically for use with IntelliTouch SAW touch technology. Elo p/n - D82064-000, available at additional cost.

    Optional Acoustic Pulse Recognition (APR) Stylus Pen

    Stylus pen with metal tip, designed specifically for use with Acoustic Pulse Recognition (APR) technology.
    Elo p/n - E963860, available at additional cost.

    Touch/Video/Audio/Accessory Cables:

    All appropriate cables are included and are detachable.

    Stands, Mounts & Kits

    Short Desktop stand (Dark gray) - Elo p/n: E252977
    Tall Desktop stand (Dark gray) - Elo p/n: E930466
    Short Desktop stand (Beige) - Elo p/n: E819036
    Tall Desktop stand (Beige) - Elo p/n: E024520
    1529L VESA Plate – Elo p/n: E295293
