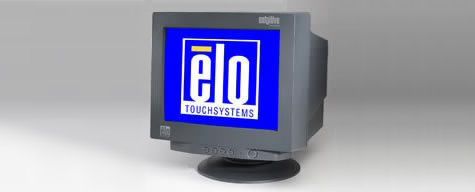

1526C 15" CRT Touchmonitor (Discontinued April 2002)

Specifications

• Technical

  ---

  Part Number(s)

  IntelliTouch (Antiglare) - 822636-000
  IntelliTouch (Antiglare) - 871510-000
  AccuTouch (Antiglare) - 649558-000
  AccuTouch (Antiglare) - 236270-000

  Enclosure Color

  Dark Gray

  Touch Technology & Capacity

  5-Wire Resistive (AccuTouch®) - Single-Touch
  SAW (IntelliTouch® Surface Acoustic Wave) - Single Touch

  Diagonal Size

  15'' diagonal, Active matrix TFT LCD (LED)

  Monitor Thickness

  14.8" / 375 mm

  Aspect Ratio

  4:3

  Active Area

  Horizontal: 10.2" / 260 mm
  Vertical: 7.7" / 195 mm

  Resolution

  800 x 600 at 85 Hz

  Other Supported Resolutions

  1280 x 1024 at 65 Hz
  1024 x 768 at 75 or 85 Hz

  Number of Colors

  16.7 million

  Dot Pitch

  0.28 mm

  Contrast Ratio

  300:1

  Touch Interfaces

  Serial: 822636-000, 649558-000
  USB: 871510-000, 236270-000

  On Screen Display

  Digital OSD

  Video Bandwidth

  110 MHz

  Input Video Format

  Analog (no proprietary video card needed)

  Input Video Signal Connector

  Mini D-Sub 15-Pin (female)

  Power Consumption (Typical)

  80 W max.

  Power Supply

  90-264 VAC, 50-60 Hz

  Input Frequency

  Horizontal: 30-70 kHz
  Vertical: 50-150 Hz

  Monitor Dimensions (without Stand)

  14.4" x 14.2" x 14.8" / 364 mm x 361 mm x 375 mm

  Weight (Unpackaged)

  30.8 lbs / 14.0 kg

  Weight (Packaged)

  35.2 lbs / 16.0 kg

  Operating Temperature

  10°C to 40°C

  Storage Temperature

  -20°C to 60°C

  Humidity

  Operating: 35% to 80%
  Storage: 5% to 90%
  noncondensing

  MTBF

  50,000 hours demonstrated

  Mounting Options

  Removable base

  Other Features

  Sealing
  ENERGY STAR
  VESA DPMS/NUTEK
  VESA DDC 1/2 B Plug and Play
  ISO 9241/3

  Warranty

  2-year

  Regulatory approvals and declarations

  IntelliTouch: UL, cUL, FCC, CE, TÜV-GS, TCO95, MPR II
  AccuTouch: UL, cUL, FCC, CE, TÜV-GS, MPR II

  Power Cables

  A North American power cable and a European power cable are included.

  For touchmonitors being shipped to the United Kingdom, add a UK power cable at no cost by specifying part number 276875-000
