1523L 15" Touchscreen Monitor (Discontinued September 2017)
How to buy

Overview

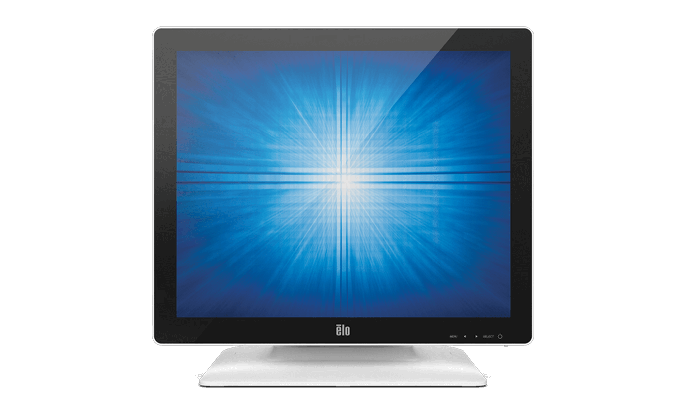

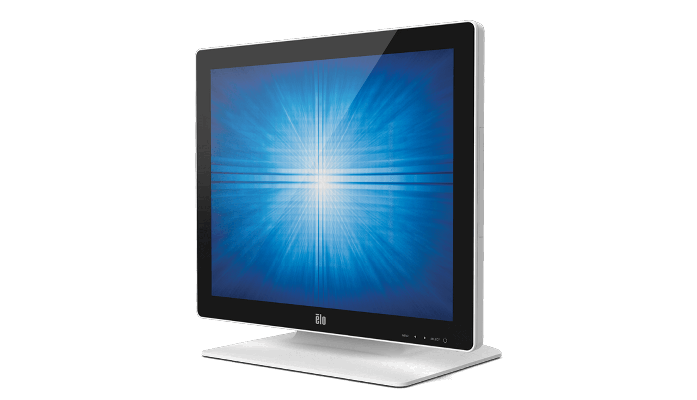

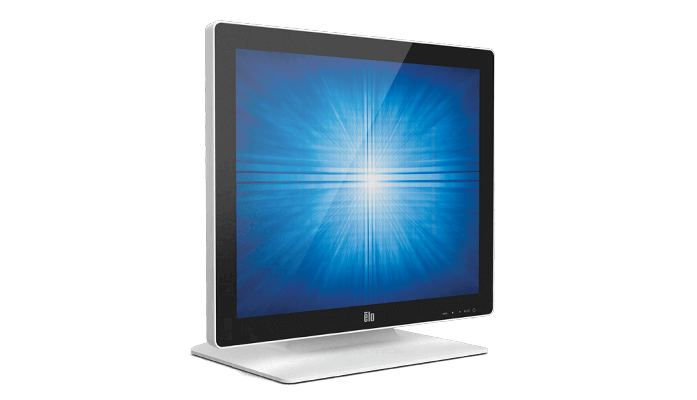

The Elo 1523L 15-inch standard format touchscreen monitor is well-suited to meet the durability and aesthetic requirements for a variety of high traffic retail and hospitality interactive solutions. The sleek, edge-to-edge glass design of the 1523L brings a clean, modern feel to any environment. The zero-bezel touchmonitor is available in both black or white with Elo’s industry-leading touch technologies, both providing a stable drift-free operation with outstanding image clarity, resolution and light transmission - for an accurate touch response and vivid images.

Integrated touch.

The 15-inch monitor offers a choice of two industry leading Elo touchscreen technologies. Both enable multi touch functionality, with a seamless zero-bezel display. IntelliTouch® surface acoustic wave (SAW) zero-bezel delivers the ultimate in optical quality for dry retail and hospitality applications. For a 10-touch tablet like experience, TouchPro™ PCAP offers a clean edge-to-edge glass design perfect for multi-user interaction with fast and extremely sensitive responses right out of the box.
Installation flexibility.

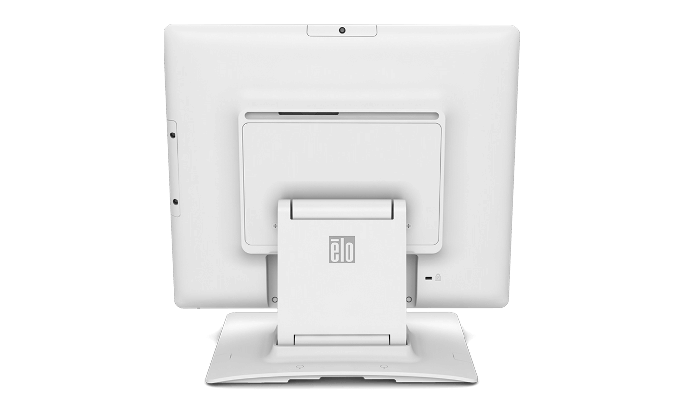

The multiple mount and stand options for the 1523L ensures installation flexibility and accommodates tabletop use as well as wall- and pole-mount in portrait and landscape via standard VESA mount patterns. The dual position stand offers a single hinge design with high/low settings and tilt functionality.
Peripherals.

The 1523L offers optional retail accessories with easy installation including: a mag stripe reader (MSR), webcam, customer facing display and near field communication (NFC/RFID) adapter for mobile payments and increased compatibility with the latest point of sale applications. Optional bracket allows the use of the 0700L as a customer facing display.
Commercial grade.

The 15-inch touchscreen monitor delivers the quality and reliability Elo is known for and is backed by our three-year standard warranty. All our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF.
Other features.
  • Integrated cable management
  • Long-lasting product cycle
  • Dual position stand - single hinge with high/low settings and tilt functionality
  • Screen is resistant to dirt, dust, liquid
  • Desktop, wall or VESA mounting
  • Internal speakers
  • Three-year standard warranty

Specifications

  • Technical

    Part Number(s)

    IntelliTouch ZB Dual Touch Black (China) - E110107

    Enclosure Color

    White

    Touch Technology & Capacity

    SAW ZB (IntelliTouch® Surface Acoustic Wave) - Dual Touch

    Diagonal Size

    15'' diagonal, Active matrix TFT LCD (LED)

    Aspect Ratio

    4:3

    Active Area

    IntelliTouch ZB: 11.97" x 8.98" / 304.13mm x 228.1mm

    Resolution

    1024 x 768 @ 60Hz

    Other Supported Resolutions

    1024 x 768 at 60, 65, 70 or 75 Hz
    800 x 600 at 56, 60,75 Hz
    720 x 400 at 70 Hz
    640 x 480 at 60,75 Hz

    Viewing Angle

    Horizontal: ±80° or 160° total / Vertical: ±70° or 140° total

    Number of Colors

    16.2 million

    Brightness (typical)

    LCD panel: 250 nits
    IntelliTouch ZB: 225 nits

    Response Time-total (typical)

    16 msec

    Contrast Ratio

    700:1

    On Screen Display

    Accessible through switches along the bottom:

    Controls (side): Menu, Up, Down, Select

    Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, Volume, Mute, Recall Defaults

    Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese

    Lockouts: OSD, Power

    USB Ports

    Two external USB ports

    Speakers

    Two 2W internal speakers

    Input Video Format

    Analog VGA, DVI-D

    Input Video Signal Connector

    Mini D-Sub 15-Pin VGA type, DVI-D connector

    Power Consumption (Typical)

    Monitor + AC/DC adapter
    ON: 10.5W
    SLEEP: 1.2W
    OFF: 0.2W

    Power Supply

    External DC (power brick)

    Input Voltage

    DC: 12.0V ± 5%

    Input Connector

    DC: Coaxial power jack (2 mm pin diameter, 6.4 mm barrel diameter, 8.8 mm barrel length)

    Input Frequency

    Horizontal: 31 - 80 kHz / Vertical: 56 - 75 Hz

    Monitor Dimensions (with Stand)

    14.1" x 7.84" x 12.53" / 358.1mm x 199.1mm x 318.5mm

    Shipping Box Dimensions

    17.60" x 8.15" x 14.96" / 447mm x 207mm x 380mm

    Weight (Unpackaged)

    9.26 lbs / 4.2 kg

    Weight (Packaged)

    15.43 lb / 7.0 kg

    Operating Temperature

    0°C to 40°C / 32°F to 104°F

    Storage Temperature

    -20°C to 60°C / -4°F to 140°F

    Humidity

    Operating: 20% to 80%; Storage: 10% to 95%

    Sealability

    Touchscreen sealed to bezel; Touchscreen sealed to LCD

    MTBF

    50,000 hours demonstrated

    Stand Options

    Tilt, remove

    Mounting Options

    75mm VESA mount

    Other Features

    2 stage DPMS
    VESA DDC Plug and Play
    Security lock receptacle
    Internal speakers

    Warranty

    3-year

    Extended Service Options

    1 Year Extended Warranty - Elo P/N: 758588-000
    2 Year Extended Warranty - Elo P/N: 930057-000
    Elo Advance Unit Replacement (AUR) - Elo P/N: E67295-000

    Regulatory approvals and declarations

    UL, cUL, FCC, IC, CCC, CE, VCCI, KCC, e-Standby, CoC, BSMI Mark, CB, RCM, RoHS, China RoHS, WEEE, IMERC

    What's in the Box

    QIG, Japan Class-B TM info sheet, User Manual CD, 50W Power Brick, power cable, IEC 60320-C13 to NA/EU plug, DVI-D cable, VGA cable (DE-15 male to DE-15 male), USB cable (Type A plug to Type B plug), Audio cable, Stand base assembly, Filler Plate

    Replacement DC Power Supply

    The monitor may be powered with DC voltage. A optional 12V DC power brick is available at additional cost.

    United States: E005277
    Europe: E571601
    United Kingdom: E180092
    China: E558862
    Taiwan: E818655
    Japan: E182546
    Argentina: E887099

    AC Power Cable

    Power cables are included. Replacement Cable Kit: E378229
    North America: E378229
    China: E030476
    Taiwan: E637694
    Japan: E849156 (3-pin to 2-pin adapter: E351985)

    Optional PCAP Stylus Pen

    E066148

    Touch/Video/Audio/Accessory Cables:

    All appropriate cables are included and are detachable.

    Optional Peripherals

    Magnetic Stripe Reader (Black MSR) – Elo P/N: E628912

    Stands, Mounts & Kits

    1523L VESA Mount Plate (White) - Elo p/n: E000449
    1523L VESA Mount Plate (Black) - Elo p/n: E000448

Configurations

(5)

Refine your search:
Compare Compare
Image of item
E394454 (Worldwide)
  • Black
  • USB
  • No-Bezel
  • Anti-glare
  • IntelliTouch® ZB - SAW
Compare Compare
Image of item
E243774 (Asia-Pacific & Japan)
  • White
  • USB
  • No-Bezel
  • Anti-glare
  • IntelliTouch® ZB - SAW
Compare Compare
Image of item
E336518 (Worldwide)
  • White
  • USB
  • No-Bezel
  • Anti-glare
  • Projected Capacitive
Compare Compare
Image of item
E738607 (Worldwide)
  • Black
  • USB
  • No-Bezel
  • Anti-glare
  • Projected Capacitive
Compare Compare
Image of item
E110107 (China)
  • Black
  • USB
  • No-Bezel
  • Anti-glare
  • IntelliTouch® ZB - SAW
