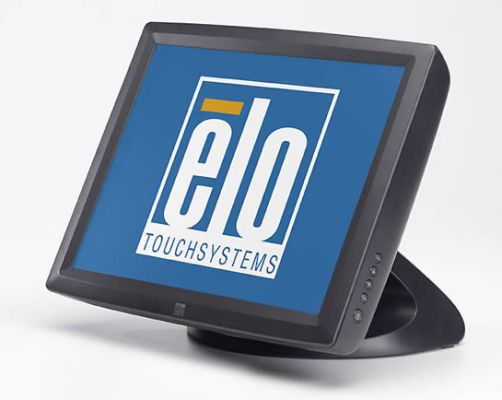

1522L 15" Touchscreen Monitor (Discontinued November 2011)
How to buy

Overview

The 1522L 15" LCD desktop touchmonitor offers the same sleek design as the 1529L 15" LCD desktop model, but is more cost effective for the end user. The optional 3-track magnetic stripe reader (MSR), programmable to either HID or Keyboard Emulation (USB only), is easily installed by the user, providing an elegant, integrated solution and eliminating the need for external brackets or attachments. The 1522L also incorporates hidden cable management, resulting in a convenient, space saving design that makes the touchmonitor ideal for POS applications. The 1522L is offered with a choice of touch technologies: IntelliTouch® surface acoustic wave, AccuTouch® five-wire resistive, CarrollTouch Infrared, Surface Capacitive, and Acoustic Pulse Recognition. In addition, there are options for a beige or gray bezel and a short or tall stand.

Other features.
  • Long lasting product cycle – enclosure controlled by Elo specifications
  • Small integrated design
  • A touchmonitor that can function as a desktop or wall-mountable system
  • Available with Acoustic Pulse Recognition, AccuTouch Five-Wire Resistive Technology, IntelliTouch Surface-Wave Technology, CarrollTouch Infrared Technology, and Surface Capacitive Technology
  • Optional ergonomic 3 stripe MSR available in two versions: USB with keyboard emulation; and USB with human interface device (HID) class specification 1.1
  • Touchscreen sealed to resist dirt, dust and splashes
  • "Designed for touch" from the ground-up; stable tilt stand; cables hidden from user's view
  • Controls on the side rather than the front, plus lockout function for public use
  • Choice of short or tall monitor stand
  • Choice of gray or beige finish
  • Mounting holes on stand bottom for tabletop security
  • Stand removable, VESA mounting option
  • Worldwide agency approvals
  • Security lock receptacle
  • 3 year warranty

Specifications

  • Technical

    Part Number(s)

    Acoustic Pulse Recognition (USB, Antiglare, Americas, Asia/Pacific, EMEA) - E460428
    Acoustic Pulse Recognition (USB, Antiglare, Americas, Asia/Pacific, EMEA) - E172222
    Surface Capacitive (USB, Antiglare, Americas, Asia/Pacific, EMEA) - E796533
    Surface Capacitive (USB, Antiglare, Americas, Asia/Pacific, EMEA) - E206623
    Surface Capacitive (USB, Antiglare, Americas, Asia/Pacific, EMEA) - E520186
    Surface Capacitive (USB, Antiglare, Americas, Asia/Pacific, EMEA) - E754958

    Enclosure Color

    Dark Gray or Beige

    Touch Technology & Capacity

    Acoustic Pulse Recognition - Single Touch
    Surface Capacitive (SCAP) - Single Touch

    Diagonal Size

    15'' diagonal, Active matrix TFT LCD (LED)

    Aspect Ratio

    4:3

    Active Area

    12.0" x 9.0" / 304mm x 228mm

    Resolution

    1024 x 768 at 60 Hz

    Other Supported Resolutions

    1024 x 768 at 60, 65, 70 or 75 Hz
    832 x 624 at 75 Hz
    800 x 600 at 56, 60, 72 or 75 Hz
    720 x 400 at 70 Hz
    720 x 350 at 70 Hz
    640 x 480 at 60, 66 Hz (Mac), 72 or 75 Hz

    Viewing Angle

    Horizontal: ±70° or 140° total / Vertical: ±60° or 120° total

    Number of Colors

    16.7 million

    Brightness (typical)

    LCD panel: 250 nits
    Acoustic Pulse Recognition: 230 nits
    Surface capacitive: 213 nits

    Response Time-total (typical)

    12 msec

    Contrast Ratio

    500:1

    Touch Interface

    USB: E460428, E172222, E796533, E206623, E520186, E754958

    On Screen Display

    Controls (side): menu, up, down, select, power
    Settings: contrast, brightness, V-position, H-position, RGB, volume, YUV, phase, clock, OSD H-position, OSD V-position, OSD time, auto adjust, input select
    Languages: English, French, German, Spanish, Japanese
    Lockouts: power, user controls

    Speakers

    Two watt/channel speakers located in display head

    Input Video Format

    Analog VGA

    Input Video Signal Connector

    Mini D-Sub 15-Pin VGA type

    Power Consumption (Typical)

    30W

    Power Supply

    Internal AC, Optional external DC (power brick)

    Input Voltage

    AC: 90-265 VAC, 50/60 Hz; DC: 12.0V ± 0.75V

    Input Connector

    AC: IEC 60320 C6; DC: Coaxial power jack (2 mm pin diameter, 6.4 mm barrel diameter, 8.8 mm barrel length)

    Input Frequency

    Horizontal: 31.5-60.2 kHz / Vertical: 56.3-75 Hz

    Monitor Dimensions (with Stand)

    14.0" x 11.3" x 11.0" / 355mm x 286mm x 278mm
    Dimensions vary with stand type and position; see drawing for tall stand dimensions

    Shipping Box Dimensions

    Short stand: 17.53" x 13.00" x 14.97" / 445mm x 330mm x 380mm
    Tall stand: 17.53" x 11.03" x 17.34" / 445mm x 280mm x 440mm

    Weight (with stand)

    Short stand: 14.3 lbs / 6.5 kg
    Tall stand: 14.9 lbs / 6.8 kg

    Shipping Weight (With stand)

    Short stand: 19.6 lbs / 8.9 kg
    Tall stand: 20.2 lbs / 9.2 kg

    Operating Temperature

    0°C to 40°C / 32°F to 104°F

    Storage Temperature

    -20°C to 60°C / -4°F to 140°F

    Humidity

    Operating: 20-80%
    Storage: 5-95%
    noncondensing

    Sealability

    Touchscreen sealed to bezel
    Touchscreen sealed to LCD

    MTBF

    50,000 hours demonstrated

    Stand Options

    Tilt, removable, short or tall stand

    Mounting Options

    75mm VESA mount

    Other Features

    2 stage DPMS
    VESA DDC Plug and Play
    Security lock receptacle

    Warranty

    3-year

    Regulatory approvals and declarations

    EMC: CE, C-Tick, FCC, VCCI (Class B)
    Safety: CB, CE, cULus, S (Argentina), TÜV T Mark

    AC Power Cable

    North American and European AC power cables are included.

    For touchmonitors being shipped to the United Kingdom, add a UK AC power cable at no cost by specifying Elo P/N: E540272.

    AC power cables for power brick are also available at additional cost:

    United States: Elo P/N - E042259
    Europe: Elo P/N - E690013
    United Kingdom: Elo P/N - E235317

    Optional Power Supply Brick

    The monitor may also be powered with DC voltage. An optional 12V DC power brick, Elo P/N: E137360, is available at additional cost.

    Optional IntelliTouch Stylus Pen

    D82064-000, available at additional cost.

    Optional Acoustic Pulse Recognition (APR) Stylus Pen

    E963860, available at additional cost.

    Touch/Video/Audio/Accessory Cables:

    All appropriate cables are included and are detachable.

    Optional Peripherals

    Magnetic Stripe Reader (Dark Gray) - Elo P/N: E560084
    Magnetic Stripe Reader (Beige) - Elo P/N: E895934

Resources
