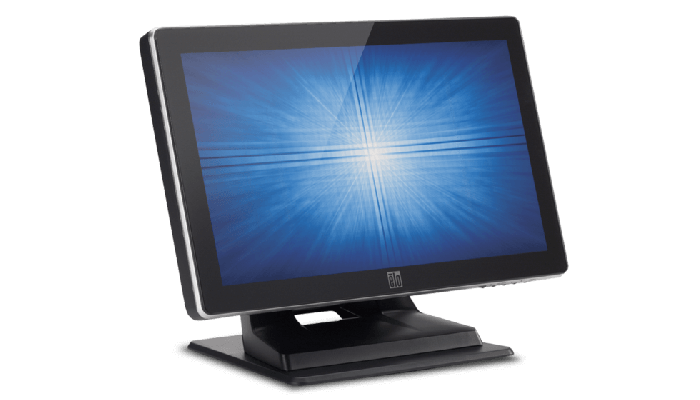

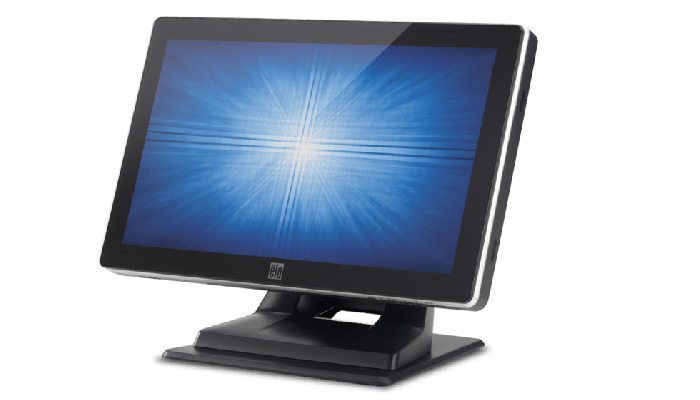

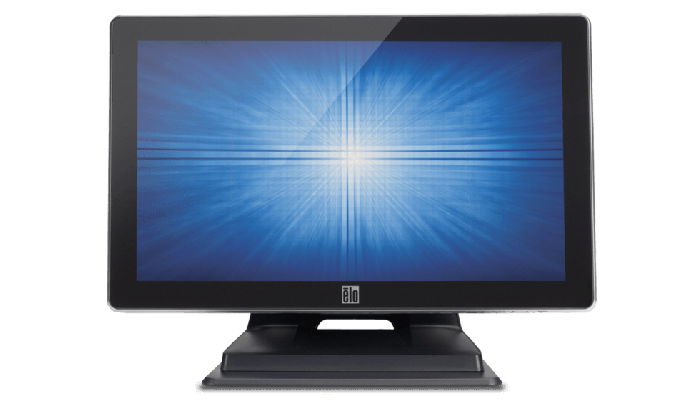

1519L 15.6" Touchscreen Monitor (Discontinued October 2017)
This product has been replaced by the - 1502L.
Overview
The Elo 1519L 15.6-inch widescreen touchscreen monitor is built to withstand the rigors of continuous public use with a rugged built-for-touch design. Its stylish, thin and modern look, coupled with room for more content, makes the 1519L an attractive solution for commercial touchscreen monitor needs. The 1519L is well-suited for corporate, point-of-sale (POS), point-of-information (POI), point-of-service, interactive signage, loyalty systems, kiosk, light industrial shop-floor automation and home control.
Integrated touch.The 15-inch touchscreen monitor is available with Elo's industry-leading single touch IntelliTouch® surface acoustic wave (SAW). |
 |
 |
Flexible mounting.The Elo 1519L offers multiple mounting options to ensure installation flexibility including: wall-, arm- and pole-mount via standard VESA mount patterns as well as tabletop accommodations with the use of the desktop stand. |
Commercial grade.The 1519L touchscreen monitor delivers the quality and reliability Elo is known for and is backed by our three-year standard warranty. All our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF. |
 |
Other features.
- Widescreen format provides more application space
- Sealed touchscreen against dirt, dust and liquid
- Designed for touch features such as a stable tilt stand
- Space-saving built-in speakers
- User-lockable on-screen display – designed for public access
- VESA compliance makes wall or arm-mounting possible
- VGA video input
- One-time factory calibration for easy deployment and integration (APR only)
- Three-year standard warranty
Specifications
-
Technical
Part Number(s)
IntelliTouch ZB (Available in North America Only) - E232070
Enclosure Color
Dark Gray
Touch Technology & Capacity
SAW (IntelliTouch® Surface Acoustic Wave) - Single Touch
Diagonal Size
15.6'' diagonal, Active matrix TFT LCD (LED)
Aspect Ratio
16:9
Active Area
13.4" x 7.6" / 344mm x 194mm
Resolution
1366 x 768 at 60 Hz
Other Supported Resolutions
720 x 350 at 70Hz (may not display at full screen)
720 x 400 at 70Hz
640 x 480 at 60, 72, 75Hz
800 x 600 at 56, 60, 72, 75Hz
832 x 624 at 75Hz
1024 x 768 at 60, 70, 75Hz
1280 x 800 at 60 Hz
1280 x 960 at 60Hz
1280 x 1024 at 60, 75Hz
1360 x 768 at 60Hz
1366 x 768 at 60 Hz
1440 x 900 at 60 Hz
1600 x 1200 at 60 Hz
1680 x 1050 at 60 HzViewing Angle
Horizontal: ±45° or 90° total / Vertical: 20°/45° or 65° total
Number of Colors
16.7 million
Brightness (typical)
LCD panel: 250 nits
IntelliTouch: 225 nitsResponse Time-total (typical)
8 msec
Contrast Ratio
500:1
On Screen Display
Accessible through switches along the bottom.
Controls: menu, up, down, select, power
Settings: automatic adjustment, contrast, brightness, H/V position, clock, phase, maintain aspect ratio, color temperature, OSD H/V position, OSD timeout, OSD rotation, OSD language (English, French, Italian, German, Spanish, Japanese, Traditional Chinese, Simplified Chinese), Recall Defaults, Sharpness, Volume, Mute
Languages: English, French, Italian, German, Spanish, Japanese, Traditional Chinese, Simplified Chinese
Lockouts: power, user controlsAudio Input Connector
3.5mm TRS jack
Audio Input Signal Range
1V rms maximum stereo signal (standard PC line out)
Headphone Output Connector
3.5mm TRS jack x 2, wired in parallel
Headphone Output Signal
Delivers 90mW of power into a single 32-ohm stereo load (for 1KHz signal)
Speakers
Two x 2W internal speakers
Input Video Format
Analog VGA
Input Video Signal Connector
Mini D-sub 15-pin VGA type
Power Consumption (Typical)
Monitor only, no audio: 15.6 W
Monitor plus AC/DC Adapter at 230V/50 Hz, no audio: 18.4WPower Supply
AC-DC power adapter
Input Voltage
12V +/- 5%
Input Connector
Coaxial power jack (Barrel inner diameter: 6.4 ± 0.3mm. Pin outer diameter: 2.0 + 0.0-0.1mm. Barrel depth: 8.8 ± 0.3mm)
Input Frequency
Horizontal: 30 - 83 KHz
Vertical: 50 - 75 HzAdapter Input Connector
IEC 60320 C14
Adapter Input Voltage Range
100-240VAC, 50/60 Hz
Monitor Dimensions (with Stand)
15.1" x 8.4" x 10.9" / 383mm x 213mm x 277mm
Shipping Box Dimensions
18.7" x 13.8" x 8.86" / 475mm x 350mm x 225mm
Weight (with stand)
11.3 lb / 5.14 kg
Weight (without stand)
7.5 lb / 3.43 kg
Shipping Weight (With stand)
16.4 lb / 7.4 kg
Operating Temperature
0°C to 40°C / 32°F to 104°F
Storage Temperature
-20°C to 60°C / -4°F to 140°F
Humidity
Operating: 20% to 80%; Storage: 10% to 90%
Altitude
Operating: 0m - 3,658m (12,000 ft.)
Storage: 0m - 12,192m (40,000 ft.)Sealability
Touchscreen sealed to bezel; Touchscreen sealed to LCD
MTBF
50,000 hours demonstrated
Stand Options
Tilt, pivot (landscape/portrait mode)
Mounting Options
With provided stand (on flat surface or bolted to surface via holes in base) in landscape or portrait mode
75 mm VESA mountOther Features
Security lock receptacle
Warranty
3-year
Regulatory approvals and declarations
North America/Worldwide: USA UL, Canada cUL, Mexico NOM, CB
South America: Argentina S-mark
Asia: China CCC, Japan VCCI, Korea KC, Korea KKC, Taiwan BSMI
Elo Declarations: RoHS, China RoHS, WEEE, IMERC, CEOptional IntelliTouch Stylus Pen
Stylus pen with rubber tip, designed specifically for use with IntelliTouch SAW technology. Part number D82064-000, available at additional cost.
Optional Peripherals
Magnetic Stripe Reader (MSR) – Elo P/N: E039290
North America power adapter and cable kit - Elo P/N: E005277
European & Korea power adapter and cable kit - Elo P/N: E571601
UK power adapter and cable kit - Elo P/N: E180092
China power adapter and cable kit - Elo P/N: E558862
Taiwan power adapter and cable kit - Elo P/N: E818655
Japan power adapter and cable kit - Elo P/N: E182546
Argentina power adapter and cable kit - Elo P/N: E887099Optional Stand
E069296
