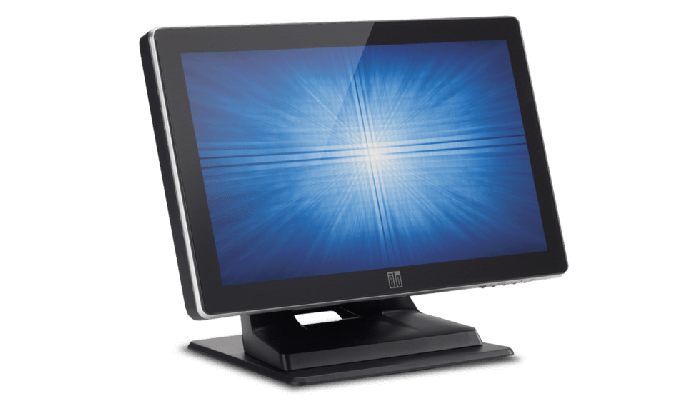

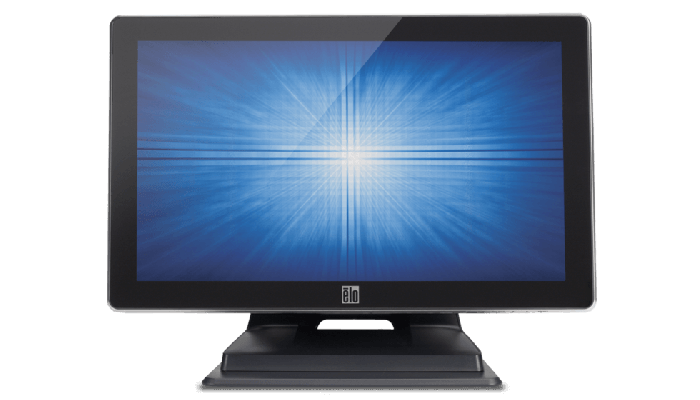

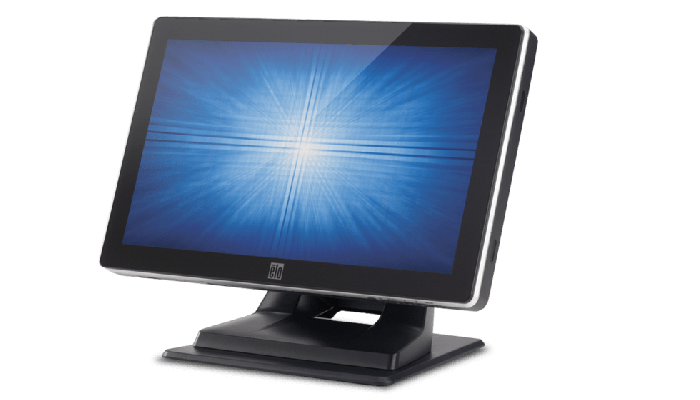

1519L 15" Touchscreen Monitor (Discontinued August 2013)
Overview
The 1519L is a wide-screen display that is easier to use and incorporate into more environments than traditional desktop touchmonitors. It allows extra content on the screen and is well-suited for corporate environment uses such as spreadsheets, publishing, and dual-window applications. The 1519L is available in three industry-leading Elo touch technologies: zero-bezel APR, which senses touch on the display by recognizing the unique pattern of sounds, standard-bezel IntelliTouch® surface acoustic wave and zero-bezel AccuTouch® 5-wire resistive. Additional applications well-suited to take advantage of the monitor’s features include point-of-sale (POS), point-of-information (POI), point-of-service, interactive digital signage, loyalty systems, kiosk information systems, light industrial shop-floor automation and home control.
Other features.
- Wide-screen format provides more application space
- Pure glass construction provides superior optical performance (APR and IntelliTouch only)
- Uninterrupted surface area and easy-to-clean true-flat surface on the zero-bezel APR and zero-bezel AccuTouch touchmonitors
- "Designed for touch" features such as a stable tilt stand
- Space-saving built-in speakers
- Sleek, integrated design offers a stylish look for public venues
- User-lockable on-screen display – designed for public access
- Can also be used in portrait mode
- VESA compliance makes wall or arm-mounting possible
- VGA video input
- Screen is resistant to water, dust, grease
- One-time factory calibration for easy deployment and integration (APR only)
- Headphone jacks
Specifications
-
Technical
Part Number(s)
Acoustic Pulse Recognition (USB, Antiglare, EMEA) - E525398
Acoustic Pulse Recognition (USB, Antiglare, Japan) - E740169
Acoustic Pulse Recognition (USB, Antiglare, Americas) - E883482Enclosure Color
Dark Gray
Touch Technology & Capacity
Acoustic Pulse Recognition - Single Touch
Diagonal Size
15.6'' diagonal, Active matrix TFT LCD (LED)
Aspect Ratio
16:9
Active Area
13.4" x 7.6" / 344 mm x 194 mm
Resolution
1366 x 768 at 60 Hz
Other Supported Resolutions
1680 x 1050 at 60 Hz
1600 x 1200 at 60 Hz
1440 x 900 at 60 Hz
1366 x 768 at 60 Hz
1360 x 768 at 60 Hz
1280 x 1024 at 60 or 75 Hz
1280 x 960 at 60 Hz
1280 x 800 at 60 Hz
1280 x 768 at 65 Hz
1024 x 768 at 60, 70 or 75 Hz
832 x 624 at 75 Hz
800 x 600 at 56, 60 or 72 or 75 Hz
720 x 400 at 70 Hz
640 x 480 at 60, 72 or 75 HzViewing Angle
Horizontal: ±45° or 90° total / Vertical: -20°/+45° or 65° total
Number of Colors
16.7 million
Brightness (typical)
LCD panel: 250 nits
Acoustic Pulse Recognition: 225 nitsResponse Time-total (typical)
8 msec
Contrast Ratio
500:1
Touch Interface
USB
On Screen Display
Controls: menu, up, down, select, power
Settings: automatic adjustment, contrast, brightness, H/V position, clock, phase, maintain aspect ratio, color temperature, OSD H/V position, OSD timeout, OSD rotation, recall defaults, sharpness, volume, mute
Languages: English, French, Italian, German, Spanish, Japanese, Traditional Chinese, Simplified Chinese
Lockouts: power, user controlsAudio Input Connector
3.5mm TRS jack
Audio Input Signal Range
1Vrms maximum stereo signal (standard PC line out)
Headphone Output Connector
3.5mm TRS jack x 2, wired in parallel
Headphone Output Signal
Delivers 90mW of power into a single 32-ohm stereo load
Speakers
Two 2W internal speakers
Input Video Format
Analog VGA
Input Video Signal Connector
Mini D-sub 15-pin VGA type
Power Consumption (Typical)
Monitor only, no audio: 15.6 W
Monitor plus AC/DC Adapter at 230V/50 Hz, no audio: 18.4WPower Supply
AC-DC power adapter
Input Voltage
12 V ±5%
Input Connector
Coaxial power jack (Barrel inner diameter: 6.4 ± 0.3mm. Pin outer diameter: 2.0 + 0.0-0.1mm. Barrel depth: 8.8 ± 0.3mm)
Input Frequency
Horizontal: 30-83 kHz / Vertical: 50-75 Hz
Adapter Input Connector
IEC 60320 C14
Adapter Input Voltage Range
100-240VAC, 50/60 Hz
Monitor Dimensions (with Stand)
15.1" x 10.9" x 8.4" / 383 mm x 277 mm x 213 mm
Shipping Box Dimensions
18.7" x 8.86" x 13.8" / 475 mm x 225 mm x 350 mm
Weight (with stand)
11.3 lbs / 5.14 kg
Weight (without stand)
7.5 lbs / 3.43 kg
Shipping Weight (With stand)
16.4 lbs / 7.4 kg
Operating Temperature
0°C to 40°C / 32°F to 104°F
Storage Temperature
-20°C to 50°C / -4°F to 122°F
Humidity
Operating: 20%-80%
Storage: 10%-90%
noncondensingAltitude
Operating: 0m-3,658m / 12,000 ft.
Storage: 0m-12,192m / 40,000 ft.Sealability
Touchscreen sealed to bezel
Touchscreen sealed to LCDMTBF
50,000 hours demonstrated
Stand Options
Tilt, pivot (landscape/portrait mode)
Mounting Options
With provided stand (on flat surface or bolted to surface via holes in base) in landscape or portrait mode
75 mm VESA mountOther Features
Security lock receptacle
Warranty
3-year
Backlight lamp life
Minimum 40,000 hours to half brightness
Regulatory approvals and declarations
North America/Worldwide: USA UL, Canada cUL, Mexico NOM, CB
South America: Argentina S-mark
Asia: China CCC, Japan VCCI, Korea KC, Korea KKC, Taiwan BSMI
Elo Declarations: RoHS, China RoHS, WEEE, IMERC, CECable Kit for Replacement Cables
Elo P/N: E378229 (Gray)
Optional Peripherals
Magnetic Stripe Reader (MSR) – Elo P/N: E039290
North America Power Brick - Elo P/N: E348315
Europe Power Brick - Elo P/N: E162361
UK Power Brick - Elo P/N: E334749
China Power Brick - Elo P/N: E834397
Taiwan Power Brick - Elo P/N: E953228
Japan Power Brick - Elo P/N: E033396
Argentina Power Brick - Elo P/N: E707702Optional Stand
Elo P/N: E069296
