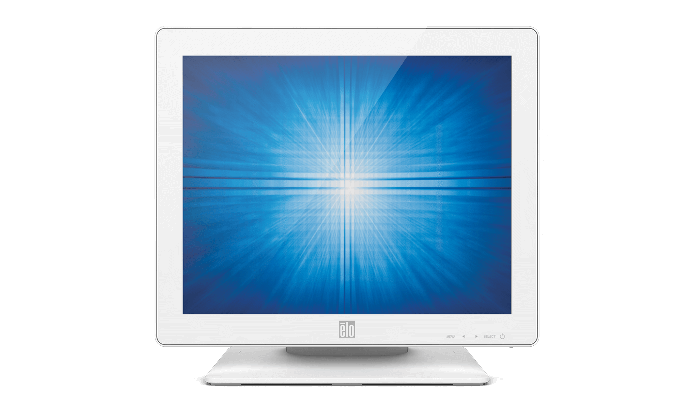

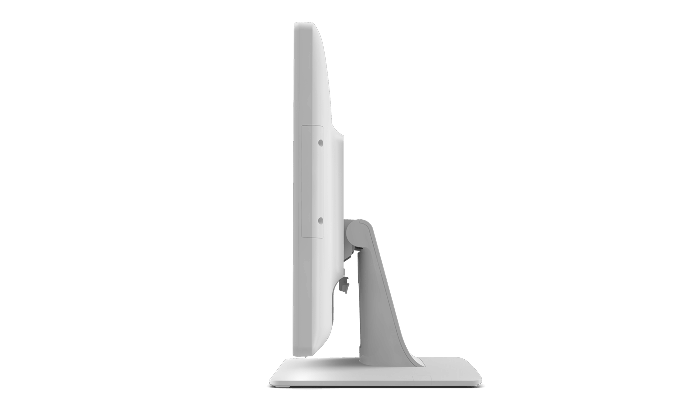

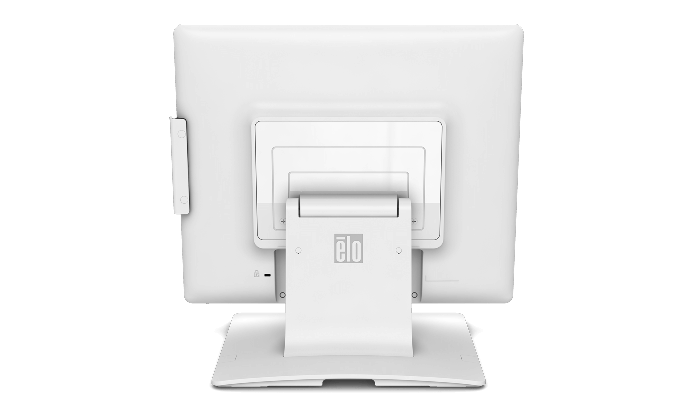

1517L 15" Touchscreen Monitor (Discontinued September 2017)
How to buy

Overview

The Elo 1517L standard format white touchscreen monitor is built to withstand the rigors of continuous public use with a rugged built-for-touch design. Its stylish, thin and modern look, coupled with a retail-focused feature set and is an attractive solution for commercial touchscreen monitor needs. The 1517L is well suited for point-of-sale, point-of-information, point-of-service, interactive signage and loyalty systems. The touchmonitor is environmentally friendly, lightweight and uses less power with state-of-the-art LED backlights in the display panel.

Integrated touch.

The 15-inch touchscreen monitor offers a choice of three touchscreen technologies. AccuTouch® five-wire resistive is widely used in retail and hospitality environments based on its proven ability to survive splashing liquids, food and grease. Both AccuTouch® five-wire resistive and IntelliTouch® surface acoustic wave (SAW) as well as IntelliTouch SAW zero-bezel deliver the ultimate in optical quality for dry retail and hospitality applications.
MSR ready.

The 1517L offers an optional three-track magnetic stripe reader (MSR), programmable to either HID or Keyboard Emulation (USB only), is easily installed by the user, providing an elegant, integrated solution and eliminating the need for external brackets or attachments.
Flexible mounting.

The Elo 1517L offers multiple mounting options to ensure installation flexibility including: wall- and pole-mount via standard VESA mount patterns as well as tabletop accommodations with the use of the desktop stand. Capped through-mount holes on the base of the touchmonitor ensure table-top security.
Other features.
  • Sleek and thin design with built-for-touch reliability
  • Flexible and space-saving
  • 60% Energy savings using LED technology
  • Sealed touchscreen against dirt, dust and liquids
  • Removable base and mounting options including VESA, wall and pole-mounting
  • USB and RS232 serial connections
  • Typical power consumption: 12W, internal and external power options
  • Three-year standard warranty

Specifications

  • Technical

    Part Number(s)

    IntelliTouch ZB White Antiglare (Asia-Pacific & Japan) - E236309
    IntelliTouch ZB White (Asia-Pacific & Japan) - E342516

    Enclosure Color

    White

    Touch Technology & Capacity

    SAW ZB (IntelliTouch® Surface Acoustic Wave) - Single Touch

    Diagonal Size

    15'' diagonal, Active matrix TFT LCD (LED)

    Monitor Thickness

    1.7" / 43mm

    Aspect Ratio

    4:3

    Active Area

    8.98" x 11.97" / 228.10mm x 304.13mm

    Resolution

    1024x768 @ 60Hz, 75Hz

    Other Supported Resolutions

    640 x 480 @ 60Hz, 75Hz
    720 x 400 @ 70Hz
    800 x 600 @ 56Hz, 60Hz, 75Hz
    1024 x 768 @ 60Hz, 75Hz

    Viewing Angle

    Horizontal: ±80° or 160° total / Vertical: ±70° or 140° total

    Number of Colors

    16.2 million

    Brightness (typical)

    LCD panel: 250 nits
    IntelliTouch ZB: 225 nits

    Response Time-total (typical)

    16 msec

    Contrast Ratio

    700:1

    Touch Interface

    Serial (RS232) and USB

    On Screen Display

    Accessible through switches along the bottom:

    Controls: Menu, Up, Down, Select

    Settings: Contrast, Brightness, H-Position, V-Position, Auto-Adjust, Aspect Ratio, Sharpness, Color, Temperature, Clock, Phase, OSD timeout, OSD Language, Recall, Defaults

    Languages: English, French, Italian, German, Spanish, Japanese, Traditional Chinese, Simplified Chinese

    Lockouts: OSD, Power

    Input Video Format

    Analog VGA on Female DE-15 connector

    Input Video Frequency

    Horizontal: 31.5-60 kHz
    Vertical: 56-75 Hz

    Power Consumption (Typical)

    Monitor Only
    ON: 12W
    SLEEP: 1.0W
    OFF: 0.8W

    Power Supply

    Optional AC-DC power adapter sold for this monitor

    Input Voltage

    AC: 100-240 VAC, 50/60 Hz; DC: +12VDC ±5%

    Input Connector

    AC: IEC 60320 C6 / DC: Coaxial power jack (2.1 mm pin diameter, 6.4 mm barrel diameter)

    Adapter Input Connector

    IEC 60320 C14

    Adapter Input Voltage Range

    100-240VAC, 50/60Hz

    Monitor Dimensions (with Stand)

    14.1" x 7.8" x 12.5" / 358mm x 197mm x 319mm

    Shipping Box Dimensions

    19.2" x 9.1" x 19.1" / 487mm x 231mm x 485mm

    Weight (Unpackaged)

    9.48 lbs / 4.3 kg

    Weight (Packaged)

    16.09 lbs / 7.3 kg

    Operating Temperature

    0°C to 40°C / 32°F to 104°F

    Storage Temperature

    20°C to 60°C / -4°F to 140°F

    Humidity

    Operating: 20% to 80%
    Storage: 10% to 90%

    Sealability

    Touchscreen sealed to bezel
    Touchscreen sealed to LCD

    MTBF

    50,000 hours demonstrated

    Mounting Options

    75 mm VESA mount
    Capped through-mount holes

    Other Features

    Security lock receptacle

    Warranty

    3-year

    Extended Service Options

    1 Year Extended Warranty - Elo P/N: 758588-000
    2 Year Extended Warranty - Elo P/N: 930057-000
    Elo Advance Unit Replacement (AUR) - Elo P/N: E67295-000

    Regulatory approvals and declarations

    UL, cUL, FCC, IC, CCC, CE, VCCI, KCC, e-Standby, CoC, BSMI Mark, CB, RoHS, China RoHS, RCM, Argentinian S-Mark, WEEE, IMERC

    What's in the Box

    QIG, Japan Class-B TM info sheet, User Manual CD, VGA cable (DE-15 male to DE-15 male), USB cable (USB Type A plug to USB Type B plug), power cable, IEC 60320-C5 to NA/EU plug, Stand Base assembly, Filler Plate

    Replacement DC Power Supply

    The monitor may be powered with DC voltage. An optional 12V DC power brick, part number E005277, is available at additional cost.

    AC Power Cable

    NA and EU power cables included. United Kingdom AC power cables are included with the part numbers available for the EMEA region.
    China: E030476
    Japan: E849156 (3-pin to 2-pin adapter: E351985)
    UK: E235317
    Taiwan: E637694

    Optional PCAP Stylus Pen

    E066148

    Touch/Video/Audio/Accessory Cables:

    Detachable touch and video cables are included.

    Optional Peripherals

    Magnetic Stripe Reader (White MSR) – Elo P/N: E233227

    Stands, Mounts & Kits

    1517L VESA Mount Plate (White) - Elo P/N: E000420
