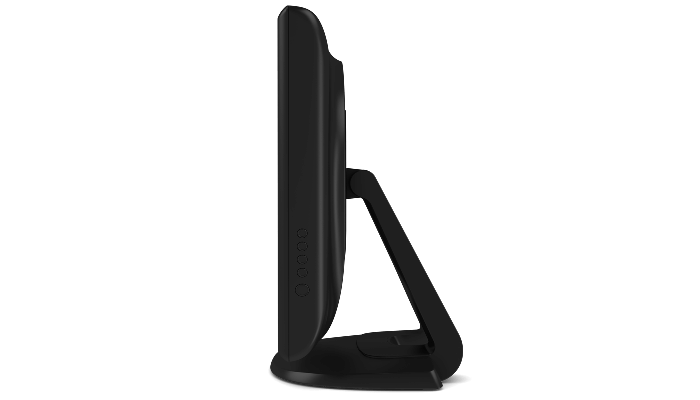

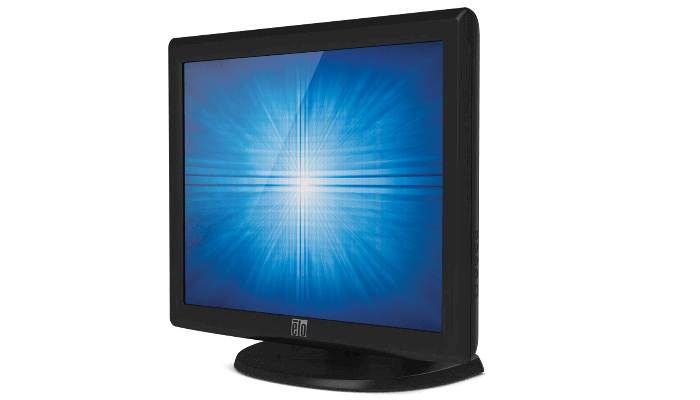

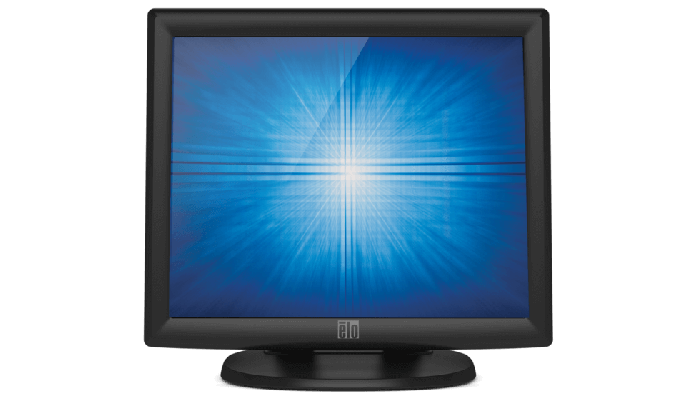

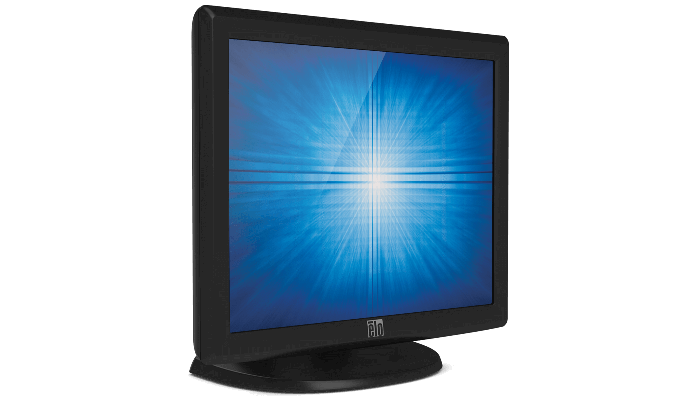

1515L 15" Touchscreen monitor (Discontinued March 2015)
How to buy

Overview

The 1515L touchmonitors are designed, developed and built to provide the most cost-effective touch solutions for system integrators and VARs. Aimed at the fast-changing retail POS and hospitality markets, they provide reliable, durable operation and come from the worldwide leader in touchmonitors, Elo Touch Solutions. The optional 3-track magnetic stripe reader (MSR), programmable to either HID or Keyboard Emulation (USB only), is easily installed by the user, providing an elegant, integrated solution and eliminating the need for external brackets or attachments. The 1515L features a choice of touchscreen technologies: AccuTouch® five-wire resistive technology, the most widely used for retail applications and proven to survive splashing liquids, food and grease; IntelliTouch® pure glass surface wave technology, for the ultimate in optical quality for dry retail and hospitality applications; Acoustic Pulse Recognition for a pure-glass surface that recognizes sound from both hard and soft stylus touches; projected capacitive for a durable, zero-bezel, glass-to-edge surface with multi-touch*.

Other features.
  • Economical and reliable
  • Up to 1024 x 768 resolution at 75 Hz
  • Available with AccuTouch Five-Wire Resistive Technology (activated with fingernails, gloves, credit cards, or any stylus), IntelliTouch Surface Wave Technology for superior image quality (activated with finger or glove), Acoustic Pulse Recognition Technology or projected capacitive (PCAP) zero-bezel touchscreen
  • Optional ergonomic 3 stripe MSR available in two versions - USB with keyboard emulation and USB with human interface device (HID) class specification 1.1
  • Sealed touchscreen
  • Dual serial/USB interface
  • Removable stand and VESA mounting option
  • Mounting holes on stand bottom for tabletop security
  • Controls on the side rather than the front, plus lockout function for public use
  • Digital on-screen display (OSD)
  • Internal power supply
  • Worldwide agency approvals

Specifications

  • Technical

    Part Number(s)

    AccuTouch (China) - E183106
    AccuTouch (Americas) - E290484
    Acoustic Pulse Recognition (Americas) - E176383
    Acoustic Pulse Recognition (Americas) - E538481
    Acoustic Pulse Recognition (China) - E557524
    Acoustic Pulse Recognition (EMEA) - E817158
    Acoustic Pulse Recognition (EMEA) - E778289
    IntelliTouch (Americas) - E036936
    IntelliTouch (China) - E447013

    Enclosure Color

    Black

    Touch Technology & Capacity

    5-Wire Resistive (AccuTouch®) - Single-Touch
    SAW (IntelliTouch® Surface Acoustic Wave) - Single Touch
    PCAP (Projected Capacitive) - 2 Touch
    Acoustic Pulse Recognition - Single Touch

    Diagonal Size

    15'' diagonal, Active matrix TFT LCD (LED)

    Aspect Ratio

    4:3

    Active Area

    12.0" x 9.0" / 304 mm x 228 mm

    Resolution

    1024 x 768

    Other Supported Resolutions

    1024 x 768 60, 70, 75 Hz
    1024 x 768 65 Hz (Sun)
    832 x 624 at 75 Hz (Mac)
    800 x 600 at 56, 60, 72 or 75 Hz
    720 x 400 at 70 Hz
    640 x 350 70 Hz
    640 x 480 60, 72, 75 Hz
    640 x 480 66 Hz (Mac)

    Viewing Angle

    Horizontal: ±70° or 140° total / Vertical: 65°/60° or 125° total

    Number of Colors

    16.7 million

    Brightness (typical)

    LCD panel: 250 nits
    AccuTouch: 200 nits
    Acoustic Pulse Recognition: 225 nits
    IntelliTouch: 225 nits
    Projected Capacitive: 225 nits

    Response Time-total (typical)

    11.7 msec

    Contrast Ratio

    500:1

    On Screen Display

    Controls (side): menu, up, down, select, power
    Settings: contrast, brightness, H/V position, RGB (color temp), clock, phase, recall
    Languages: English, German, Spanish, Japanese, French Lockouts: power, user controls

    Input Video Format

    Analog VGA

    Input Video Signal Connector

    Mini D-Sub 15-Pin VGA type

    Power Consumption (Typical)

    30W

    Power Supply

    Internal AC, Optional external DC (power brick)

    Input Voltage

    AC: 100-240 VAC, 50/60 Hz / DC: +12VDC ±5%

    Input Connector

    AC: IEC 60320 C6 / DC: Coaxial power jack (2 mm pin diameter, 6.4 mm barrel diameter, 8.8 mm barrel length)

    Input Frequency

    Horizontal: 31.5-60.2 kHz / Vertical: 56.3-75 Hz

    Monitor Dimensions (with Stand)

    13.8" x 12.2" x 6.9" / 350 mm x 310 mm x 175 mm
    Dimensions vary with stand position and options selected

    Shipping Box Dimensions

    17.52" x 14.96" x 10.24" / 445mm x 380 mm x 260 mm

    Weight (with stand)

    10.6 lb / 4.8 kg

    Weight (without stand)

    7.3 lb / 3.3 kg

    Shipping Weight (With stand)

    15.4 lb / 7.0 kg

    Operating Temperature

    0°C to 40°C / 32°F to 104°F

    Storage Temperature

    -20°C to 60°C / -4°F to 140°F

    Humidity

    Operating: 20%-80%
    Storage: 10%-90%

    Sealability

    Touchscreen sealed to bezel
    Touchscreen sealed to LCD

    MTBF

    50,000 hours demonstrated

    Stand Options

    Removable

    Mounting Options

    75 mm VESA mount
    Threaded-through mounting holes, under stand

    Other Features

    Security lock receptacle

    Warranty

    3-year

    Regulatory approvals and declarations

    North America/Worldwide: UL, cUL ,FCC, CE, Semko or Demko, VCCI, ICES, C-TICK, MPRII, Argentina S-Mark

    Asia: UL, cUL, FCC, CE, Semko, VCCI, IC, C-TICK, MPRII, Argentina S-Mark, BSMI, CCC, KC, China RoHS

    Power Cables

    A North American power cable is included with the part numbers available in the regions other than EMEA. European and UK AC power cables are included with the part numbers available for the EMEA region.

    Replacement DC Power Supply

    The monitor may also be powered with DC voltage. An optional 12V DC power brick, part number E757851, is available at additional cost. AC power cables for power brick are also available at additional cost:

    United States: Elo P/N - E042259
    Europe: Elo P/N - E690013
    United Kingdom: Elo P/N - E235317

    AC Power Cable

    AC power cables for power brick are also available at additional cost:

    United States: Elo P/N - E042259
    Europe: Elo P/N - E690013
    United Kingdom: Elo P/N - E235317

    Optional IntelliTouch Stylus Pen

    Stylus pen with rubber tip, designed specifically for use with IntelliTouch surface acoustic wave touch technology. Elo P/N: D82064-000, available at additional cost.

    Optional Acoustic Pulse Recognition (APR) Stylus Pen

    Stylus pen with metal tip, designed specifically for use with Acoustic Pulse Recognition (APR) technology. Part number E963860, available at additional cost.

    Touch/Video/Audio/Accessory Cables:

    Detachable touch and video cables are included.

    Optional Peripherals

    Magnetic Strip Reader (MSR) – Elo P/N: E623874

    Optional Stand

    Elo P/N: E245090, available at additional cost.
