1304LS 13" Touchscreen Monitor

1304LS 13” Touchscreen Monitor

Razor thin design.
Brilliant touchscreen.

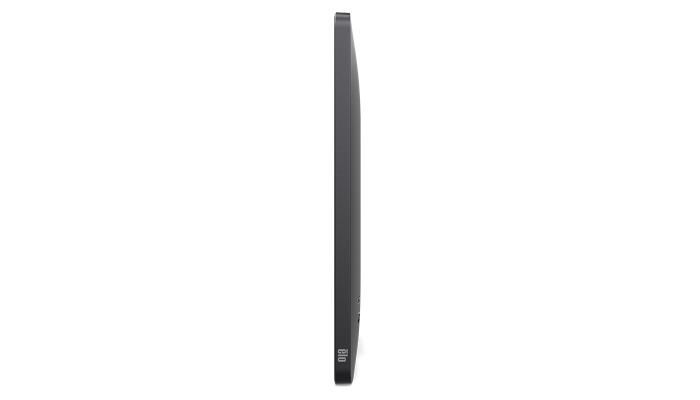

Built to be one of the thinnest commercial-grade 13-inch
touchscreen monitors, the 04LS-Series delivers a stunning
design with thin borders, enhanced durability and state-of-the-
art optical bonding - all with brilliant display clarity.

Order now

Available in a range of
sizes from 7- to 15-inch.

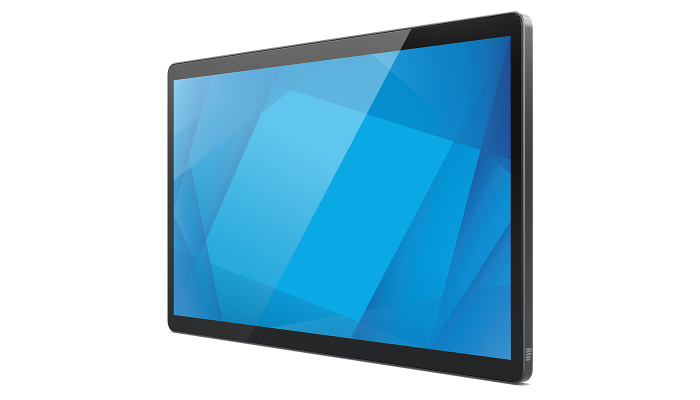

Picture of 13-inch ultra thin touchscreen monitor

Streamline setup with USB‑C to
enable power, video and touch
integration all in a single cable.

Image of 13-inch touchscreen with USB-C cable

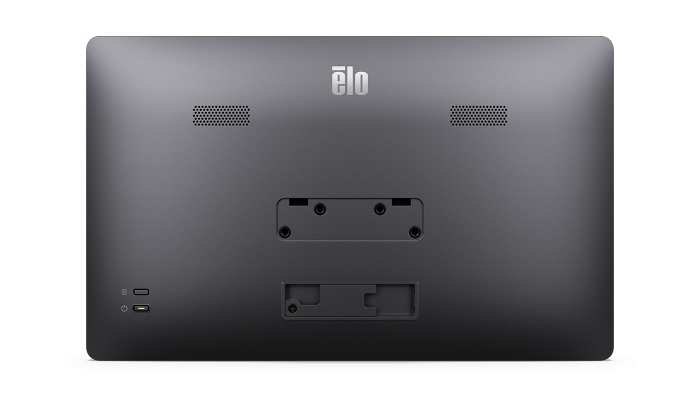

Secure your cables into place.

With a port cover that can be locked into place, cables are less prone
to becoming disconnected, minimizing disruptions to the device.

Image of cable management on razor-thin 13-inch monitor

A clean slate for
touch experiences.

The perfect pairing for
your POS terminal.

Whether you want to pair the 1304LS with a PC, a mobile device
or an AiO with integrated payment, the 04LS slate monitors
offers the perfect compact touch display with the sleekness you
desire at the point of sale.

Learn more

Get peace of mind
with EloCare.^SM

From advance unit replacement to extended warranties,
EloCare delivers service and support from the people
who know your Elo products best.

Learn more

Specifications

Technical

Part Number(s)

E968117

Enclosure Color

Dark Gray Metallic

Touch Technology & Capacity

PCAP (Projected Capacitive) - 10 Touch

Diagonal Size

13.3'' diagonal, Active matrix TFT LCD

Aspect Ratio

16:9

Active Area

11.57" x 6.51" / 293.76 mm x 165.24 mm

Resolution

1920 x 1080

Other Supported Resolutions

640x480 60Hz
800x500 60Hz
800x600 60Hz
1024x768 60Hz
1280x800 60Hz
1280x720 60Hz
1280x1024 60Hz
1366x768 60Hz, 60Hz RB
1440x900 60Hz, 60Hz RB
1680x1050 60Hz, 60Hz RB
1920x1080 60Hz

Viewing Angle

Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total

Number of Colors

16.2 million

Brightness (typical)

Panel: 300 nits; TouchPro PCAP: 270 nits

Response Time-total (typical)

27 msec

Contrast Ratio

600:1

Touch Interfaces

USB

Surface Treatment

Anti-glare

On Screen Display

Accessible through touch OSD, and press Menu button to pop up touch OSD diagram.

Controls: Menu, Power

Settings: Brightness, Contrast, Color Temperature, Low Blue Light, Volume, Mute, OSD Timeout, OSD Language, Sharpness, Touch on Sleep mode ON/OFF, Power LED ON/OFF, Recall Defaults

Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese,

Lockouts: OSD, Power

I/O Ports

USB Type-C connector

Speakers

2 x 2W (+/-10%) internal speakers

Video

USB Type-C connector

Input Video Horizontal Sync frequency range: 30 – 82KHz
Input Video Vertical Sync (frame rate) frequency range: 60Hz

Power

Power Delivery compatible via USB Type-C connector

Power Consumption (Typical)

ON (Default - 100% Brightness): 6.6W
SLEEP: 0.8 W
OFF: 0.15 W

Monitor Dimensions (without Stand)

Without VESA Adapter: 12.27" x 7.56" x 0.59" / 311.52 mm x 191.86 mm x 14.88 mm
With VESA Adapter: 12.27" x 7.56" x 0.79” / 311.52 mm x 191.86 mm x 19.88 mm

Shipping Box Dimensions

14.88" x 9.92" x 3.62" / 378 mm x 252 mm x 92 mm

Weight (Unpackaged)

1.92 lbs / 0.87 kg

Weight (Packaged)

3.42 lbs / 1.55 kg

Operating Temperature

0°C to 40°C / 32°F to 104°F

Storage Temperature

-20°C to 60°C / -4°F to 140°F

Humidity

Operating: 20% to 80%; Storage: 10% to 95% (38.7 ℃ max wet bulb temperature)

MTBF

50,000 hours demonstrated

Mounting Options

VESA via 4-hole 75mm mounting adapter on rear of unit.

Other Features

Energy Star 8.0 TUV
Rhineland (Low Blue Light)
Power collection function via DDCCI

Warranty

3-year

Extended Service Options

4 year warranty coverage - Elo P/N: E898247
5 year warranty coverage - Elo P/N: E898449
3 year warranty coverage + AUR - Elo P/N: E898648
4 year warranty coverage + AUR - Elo P/N: E894921
5 year warranty coverage + AUR - Elo P/N: E895125

Regulatory approvals and declarations

Canada CUL, IC
Europe CE
Korea KCC
Taiwan BSMI
United States FCC, UL
Japan VCCI
International CB
Australia RCM
Mexico NOM
RoHS, China RoHS, WEEE, REACH
United Kingdom UKCA

Impact Protection

IK07

What's in the Box

Touchmonitor
Quick Install Guide
USB Type-C cable
75mm VESA adapter (assembled)

Optional Peripherals

PCAP Stylus Pen - Elo P/N: E066148

Stands, Mounts & Kits

Wall Mount Kit (75mm or 100mm VESA) – Elo P/N: E143088
Rear Facing display Pole Mount Kit – Elo P/N: E038989
Short Tabletop Stand for 10'' I-Series - Elo P/N: E160104
Tabletop Flip Stand for 10'' & 15'' I-Series - Elo P/N: E924077
Shelf Mount Bracket (75mm or 100mm VESA) - Elo P/N: E043382
Floor Stand (75mm or 100mm VESA) - Elo P/N: E048069
Pole Mount – 6 inch (75mm or 100mm VESA) - Elo P/N: E047458
Pole Mount – 12 inch (75mm or 100mm VESA) - Elo P/N: E047663
Pole Mount – 18 inch (75mm or 100mm VESA) - Elo P/N: E047864
Pole Mount Bracket (75mm or 100mm VESA) - Elo P/N: E045151
Elo Stand 1302L - Black (75 mm VESA) - Elo P/N: E307788
Wallaby™ POS Stand (Black) - Elo P/N: E949536
USB-C to USB-C Cable Kit – Elo P/N: E129019
Z10 POS Stand (75mm VESA) - Elo P/N: E767159
Wallaby Pro Merchant-facing Display Kit – Elo P/N: E801367
