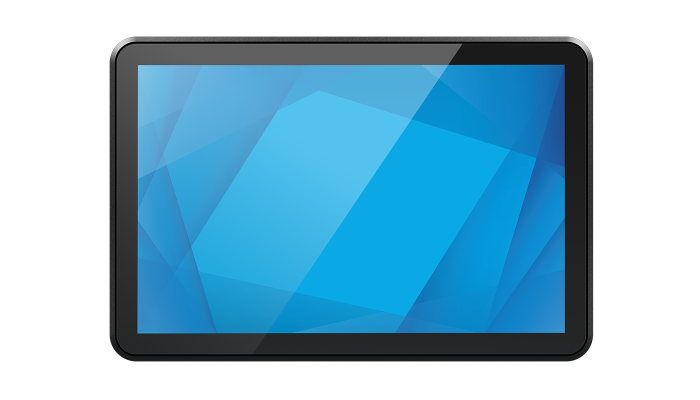

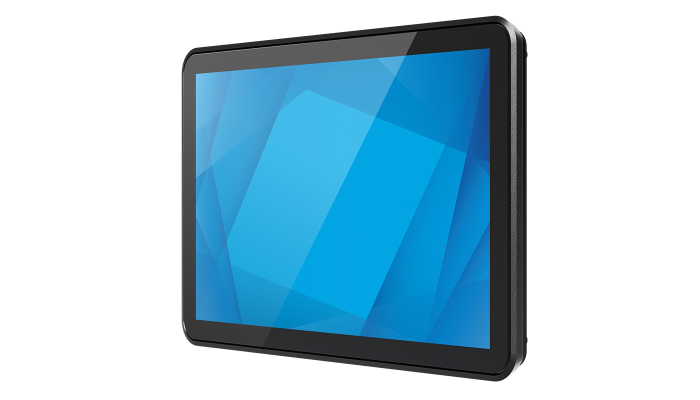

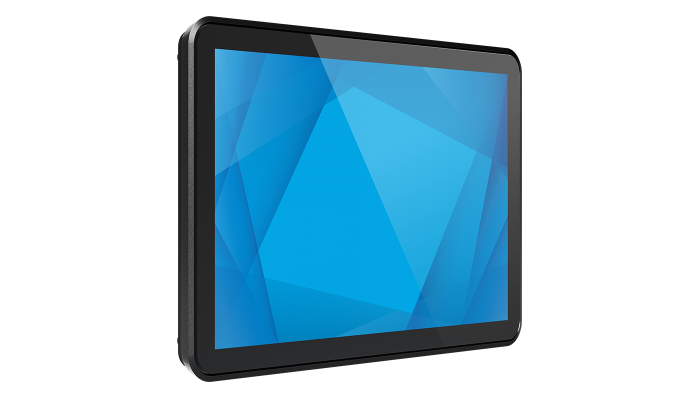

1064L 10" Open Frame Touchscreen

1064L 10-inch Industrial‑Grade

Open Frame Touch Display

Elo's 1064L 10-inch HD open-frame delivers a brilliant, industrial-grade touchscreen
monitor designed for easy integration into enclosures. With sleek, narrow borders and a
modern form factor, the 1064L is well-suited for industrial controls, HMI, warehouse
automation, gaming and more.

Brilliant, optically-bonded
TouchPro® PCAP display.

The 10-inch 1064L optically-bonded display offers an enhanced, 10-touch
tablet-like experience with the durability, touch performance and premium
optics required for industrial and commercial applications.

Image of 10-inch monitor that uses optical bonding in its manufacturing

Enable power, video and touch
with a single USB‑C cable.

Image of industrial touch monitor powered by a USB-c cable

Durable, energy
efficient touchscreen.

UL62368 & IK08
compliance

Chemically-
strengthened glass

Ready for
24/7 use

Wide operaing
voltage range
(12V‑24V)

Energy Star
7.0 certified

Image of 10-inch durable touchscreen display

Navigate the OSD directly
on the touchscreen.

We have made it easier to manage your On-Screen Display (OSD) controls –
Now you can use the touchscreen or the controls you are used to on the rear
side of the monitor.

Touch thru glass enabled with PCAP.

For installations that require specific IP ratings or protection from vandalism and
harsh environments, Elo’s TouchPro PCAP displays offer touch thru capability. With
touch thru technology, the display can be mounted behind a front layer of glass up
to 6 mm or plastic up to 3 mm to create a fully enclosed kiosk.

Image of touch monitor in an enclosure with glass over the monitor

Designed for easy integration.

Elo’s 10-inch touchscreen monitor can be mounted in landscape, portrait and
upward facing orientations, providing optimal flexibility for integrating in any
counter, kiosk or cabinet design. Whether viewing up close or from a distance, our
optically bonded display offers what you need while maintaining optimal clarity for
the viewing experience.

Image of installation features on the 10-inch open frame touch monitor

Computing power that
scales with a single cable.

With the Elo Backpack you get a powerful, commercial-grade Android compute
engine that can easily connect to the display with a single USB-C. Boasting a small
footprint in both size and weight, the Elo Backpack can secure inside any kiosk with
the built-in VESA mount. Scaling Elo’s commercial Android platform across sizes and
form factors has never been easier.

Learn more

Image of single cable powering the compute module for the touch monitor

Specifications

Technical

Part Number(s)

TouchPro PCAP - E971060

Enclosure Color

Black

Touch Technology & Capacity

PCAP (TouchPro® Projected Capacitive) - 10 Touch

Touch Thru

TouchPro® PCAP supports up to an additional 6mm glass/3mm plastic with up to 2 touches.

Touch Interface

USB 2.0

Diagonal Size

10.1'' diagonal, Active matrix TFT LCD (LED)

On Screen Display

On screen OSD with menu and power buttons on the back of the unit.

Supported Touch gestures include:
1. Call out the OSD menu.
2. lock/unlock the OSD button function.
3. lock/unlock the power button function.

Settings: Auto Scan, Video Priority, Brightness, Contrast, Aspect Ratio, Sharpness, Color Temperature, Color Enhance, Low Blue Light, OSD Timeout, OSD Language, Recall Defaults, Information, Touch On Sleep Mode, Touch Through

Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese

Lockouts: OSD, Power

Aspect Ratio

16:10

Active Area

8.54" x 5.34" / 216.96 mm x 135.60 mm

Resolution

1280 x 800

Other Supported Resolutions

640x480 60Hz
720x400 70Hz
800x500 60Hz
800x600 60Hz
1024x768 60Hz
1280x800 60Hz, 60Hz RB
1366x768 60Hz, 60Hz RB
1920x1080 60Hz
1920x1200 60Hz

Viewing Angle

Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total

Number of Colors

16.7 million

Brightness (typical)

LCD panel: 500 nits
TouchPro PCAP: 450 nits

Response Time-total (typical)

29 msec

Contrast Ratio

800:1

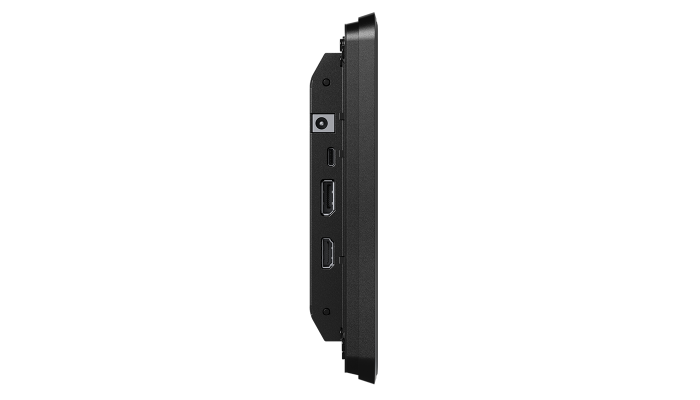

Video

HDMI V1.4 Type A receptacle for HDMI input
DisplayPort V1.2 - Supports later versions of Display Port video input
USB Type-C
*Suggest using Elo USB Type-C to Type-C (Elo P/N: E129019) cable to prevent any compatibility issues

Input Video Horizontal Sync frequency range: 30 – 80K KHz

Input Video Vertical Sync (frame rate) frequency range: 50-75Hz

Power

Option1:
External DC - Optional power brick (sold separately)

Monitor input power connector: Coaxial power jack (2.0mm (+0.0 -0.1mm) pin outer diameter, 6.4mm (+/- 0.3mm) barrel inner diameter, 8.8mm (+/- 0.3mm) Barrel depth)
Monitor input power signal specifications: 12V – 24V DC +/- 5%

Adapter output power connector: DC barrel plug (2.1mm (+/- 0.1mm) pin inner diameter, 5.5mm (+/- 0.05mm) barrel outer diameter, 9.5mm (+/- 0.3mm) Barrel length)

Option 2:
USB Type-C Input range:
5V±5%@3A / 9V±5%@3A / 15V±5% @1.8A / 20V±5%@1.35A

Maximum Operating Time

24/7

Power Consumption (Typical)

ON (Default - 80% Brightness): 6.52W
ON (Typical - 100% Brightness): 7.42W
SLEEP (monitor + adapter): 0.45W
OFF (monitor + adapter): 0.25W

Dimensions

9.46" x 6.26" x 1.26" / 240.4 mm x 159.0 mm x 32.0 mm

Shipping Box Dimensions

12.40" x 9.57" x 5.67" / 315 mm x 243 mm x 144 mm

Weight (Unpackaged)

2.75 lbs / 1.25 kg

Weight (Packaged)

5.35 lbs / 2.43 kg

Operating Temperature

0°C to 40°C / 32°F to 104°F

Storage Temperature

-20°C to 60°C / -4°F to 140°F

Humidity

Operating: 20% to 80%
Storage: 10% to 95%

Sealability

IPX1 for front side

MTBF

50,000 hours demonstrated

Warranty

3-year

Regulatory approvals and declarations

Australia RCM
Canada cUL, IC
China CCC
Europe CE, TUV
United Kingdom UKCA
Japan VCCI
Korea KCC
Mexico NoM
Taiwan BSMI
United States UL, FCC
International CB
RoHS, China RoHS, WEEE

Compliance

GLI 27 kV air / 8 kV contact ESD compliance
UL62368 ball-drop compliant
IK08 impact compliant
TUV Rheinland (Low Blue Light)
Power collection function via DDCCI

Energy Star

Energy Star 7.0

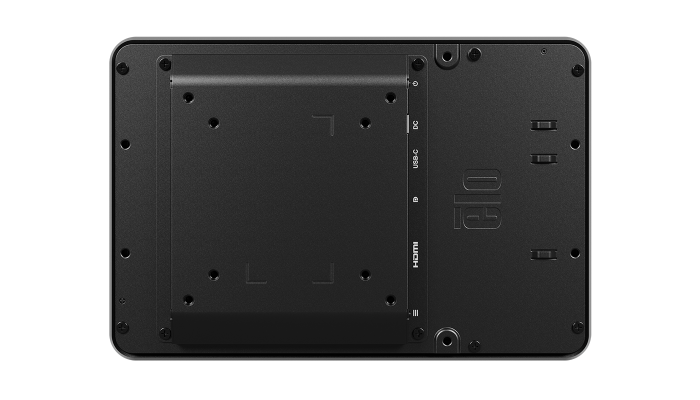

Mounting Options

75 mm and 100mm VESA mount
Mounting interface on all 4 sides
Flush mount with included brackets

See dimensional drawings for details

What's in the Box

1064L
HDMI cable
Touch USB Cable (USB-A to USB-C)
Flush Mount Brackets w/Screws
Quick Install Guide
EEI Label

Options / Peripherals / Upgrades

Cable Kit DVI-D to HDMI – Elo P/N: E538507
North America power adapter and cable kit - Elo P/N: E005277
European & Korea power adapter and cable kit - Elo P/N: E571601
UK power adapter and cable kit - Elo P/N: E180092
China power adapter and cable kit - Elo P/N: E558862
Taiwan power adapter and cable kit - Elo P/N: E818655
Japan power adapter and cable kit - Elo P/N: E182546
Argentina power adapter and cable kit - Elo P/N: E887099
Optional PCAP Stylus Pen - Elo P/N: E066148
Elo Backpack® 4 (Value Model)- Elo P/N: E393754
Elo Backpack® 4 (Standard Model) - Elo P/N: E393359
