0700L 7" Touchscreen Monitor (Discontinued June 2019)
How to buy

This product has been discontinued. Please see the replacement model - 0702L.


Overview

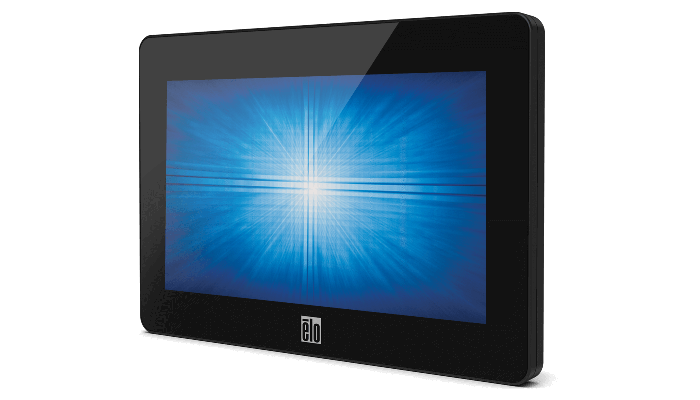

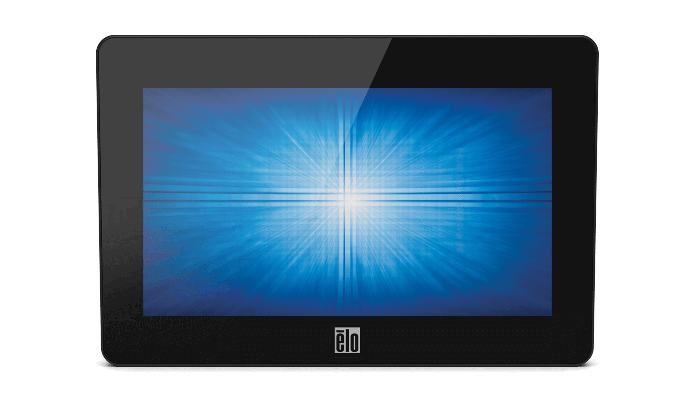

The Elo 0700L 7-inch widescreen touchscreen monitor is designed to serve as a multi-functional unit with cost and space savings in mind. Whether used as a stand-alone or secondary display attached to a larger device, the 0700L can be applied to any environment, especially where a small screen is required. The 0700L is available with AccuTouch® five-wire resistive touch technology.

Streamlined functionality.

The 7-inch display utilizes DisplayLink™ technology that allows for power, video and touch signal through a single USB cable.

 Image of item
Image of item
Endless options.

The small format 0700L can serve as a second customer-facing display in retail environments, a main display for applications requiring a small screen or an end-cap shelf display, or as a personal gaming screen that is part of a larger interactive gaming table.
Retail ready.

The optional web camera or three-track magnetic stripe reader (MSR), programmable to either HID or keyboard emulation (USB only) offer easy installation by the user, providing an elegant, integrated solution.

 Image of item
Image of item
Commercial grade.

The 7-inch touchscreen monitor delivers the quality and reliability Elo is known for and is backed by our three-year standard warranty. All our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF.
Other features.
  • DisplayLink™ technology allows for power, video and touch signal through only one USB cable
  • USB cable
  • Up to 800 x 480 60 Hz
  • VESA mounting option
  • Factory sealed against dirt and dust
  • Worldwide agency approvals
  • Three-year standard warranty

Specifications

  • Technical

    Part Number(s)

    AccuTouch (Worldwide) - E791658

    Enclosure Color

    Black

    Touch Technology & Capacity

    5-Wire Resistive (AccuTouch®) - Single-Touch

    Diagonal Size

    7'' diagonal, Active matrix TFT LCD (LED)

    Aspect Ratio

    16:9

    Active Area

    6.0" x 3.4" / 154mm x 87mm

    Resolution

    800 x 480 60 Hz

    Viewing Angle

    Horizontal: ±70° or 140° total / Vertical: -60°/+50° or 110° total

    Number of Colors

    16.7 million

    Brightness (typical)

    LCD panel: 200 nits
    AccuTouch: 160 nits

    Response Time-total (typical)

    25 msec

    Contrast Ratio

    500:1

    Speakers

    No Speakers

    Input Video Format

    USB on Mini-B receptacle

    Input Video Frequency

    Horizontal: 30KHz
    Vertical: 60 Hz

    Power Consumption (Typical)

    Monitor Only
    ON: 4.5W
    SLEEP: 2.59W
    OFF (backlight off): 2.59W

    Power Supply

    DC (through USB)

    Input Voltage

    Monitor: 5 V ±5%

    Input Connector

    AC: IEC 60320 C6 / DC: Coaxial power jack (2 mm pin diameter, 6.5 mm barrel diameter, 10 mm barrel length)

    Monitor Dimensions (without Stand)

    7.4" x 4.9" x 1.2" / 189mm x 126mm x 31mm

    Shipping Box Dimensions

    8.5" x 6.4" x 3.1" / 225mm x 165mm x 80mm

    Weight (without stand)

    1.3 lb / 0.59 kg

    Weight (Packaged)

    1.9 lb / 0.87 kg

    Operating Temperature

    0°C to 40°C / 32°F to 104°F

    Storage Temperature

    -20°C to 60°C / -4°F to 140°F)

    Humidity

    Operating: 20% to 80%; Storage: 10% to 90%

    Sealability

    Touchscreen sealed to bezel; Touchscreen sealed to LCD

    MTBF

    50,000 hours demonstrated

    Mounting Options

    VESA 4-hole 75mm mounting interface on rear of unit

    Warranty

    3-year

    Extended Service Options

    4 year warranty coverage - Elo P/N: E898247
    5 year warranty coverage - Elo P/N: E898449
    3 year warranty coverage + AUR - Elo P/N: E898648
    4 year warranty coverage + AUR - Elo P/N: E894921
    5 year warranty coverage + AUR - Elo P/N: E895125

    Regulatory approvals and declarations

    UL, cUL, FCC, IC, CE, VCCI, KCC, CoC, CB, RoHS, RCM, WEEE, BSMI

    What's in the Box

    USB Mini-B receptacle, User Manual CD, Quick Install Guide

    Optional Peripherals

    Magnetic Stripe Reader (MSR) – Elo P/N: E039290

    Stands, Mounts & Kits

    Short Tabletop Stand for 10'' I-Series - Elo P/N: E160104
    Desktop Stand - Elo p/n: E548382
    Bracket Kit for MSR or Webcam - Elo p/n: E412148
    Mounting Bracket for 0700L as Rear-Facing Display - Elo p/n: E332358
    Cable Kit (2.5 Meter) Y-Cable for 0700L - Elo p/n: E075614

Configurations

(1)

Refine your search:
Compare Compare
Image of item
E791658 (Worldwide)
  • Black
  • USB
  • Bezel
  • Anti-glare
  • AccuTouch® - 5-Wire Resistive
